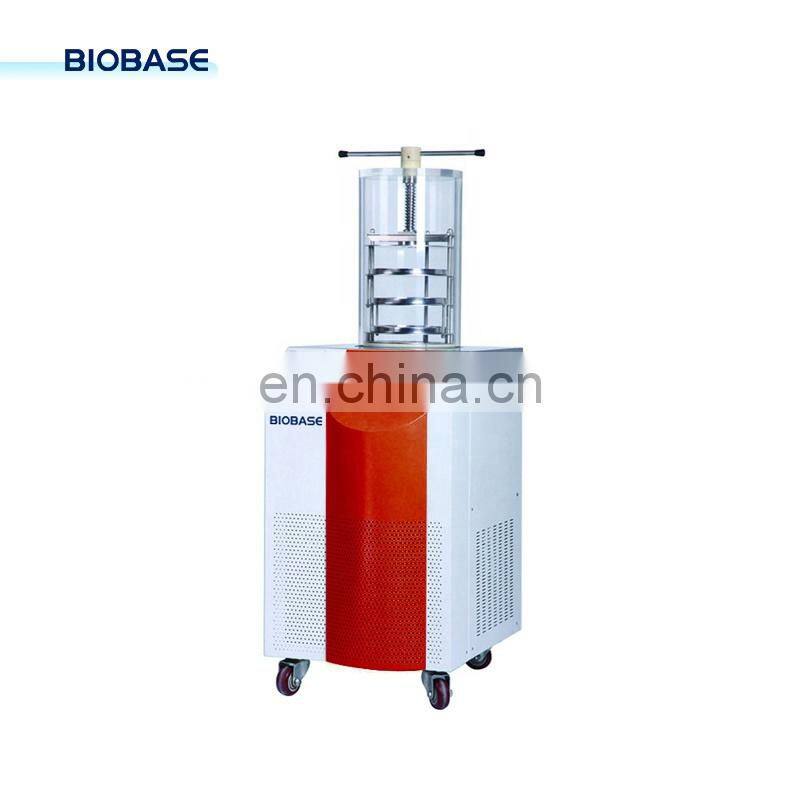

BIOBASE Laboratory Tabletop Vaccum Freeze Dryer BK-FD12T For Freeze Drying Test With Cheap Price

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Features:

1. LCD touch screen.2.With historical data inquiry function.
3.With USB interface to export the data.
4.Large capacity ice condenser trap and without coil inside.
5.With cascade refrigeration technology.

Specification

Model					BK-FD12S(-56/-80)	BK-FD12P(-56/-80)	BK-FD12T(-56/-80)	BK-FD12PT(-56/-80)
Type					Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber	Stoppering chamber with 8 port manifold
Freeze Drying Area					0.12 m2			0.09 m2
Tray					4 pcs			3 pcs
Height Between Trays					50mm			68mm
Cold Trap Temperature					≤-56℃/-80℃
Cold Trap Capacity					9.5L
Cold Trap Size (Dr*H)					Φ215*260mm
Vacuum Degree					<10 Pa
Water Capture Capacity					4kg/24h
Tray Size (D*H)					Φ200*20mm
Freeze Drying Time					24h
Loading Capacity/Shelf (Liquid)					0.3L
Total Loading Capacity (Liquid)					1.2L			0.9L
Drying Chamber Size (D*H)					Φ260*310mm	Φ260*450mm	Φ260*450mm
Can Load Vials Qty			Φ22mm	260			195
				Φ16mm	480			360
				Φ12mm	920			690
Refrigerant					R600a+R290+R23
Cooling System					Air cooling
Consumption					-56℃: 0.9kW,-80℃: 1.5kW
Power Supply					AC220V,50Hz,60Hz (single phase); 110V/220V,60Hz (single phase, only for -56℃)
Standard Accessory					Vacuum pump 2L/S, 8m3/h (for all models),Conical-mouth flasks 500mlx8 (only for model BK-FD12P/PT)
Optional Function & Accessory					Tray heating (for all models), Cold trap defrosting (for all models), Conical-mouth flask and wide-mouth flask (for BK-FD12P/PT), Import vacuum pump
External Size (WDH)					460620920/1370mm
Package Size (WDH)mm/ Gross Weight	Main Body			1000700570/90kg	1000700570/90kg
		Drying Chamber			300300350/12kg	350350570/12kg
		Vacuum Pump			590380220/22kg	590380220/22kg

Similar products

Packing & Delivery

Standard wooden Packing
