H Biobase China Promotion Freeze Dryer BK-FD18PT with Vacuum Pump LCD touch screen vertical freeze dryer laboratory

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Features

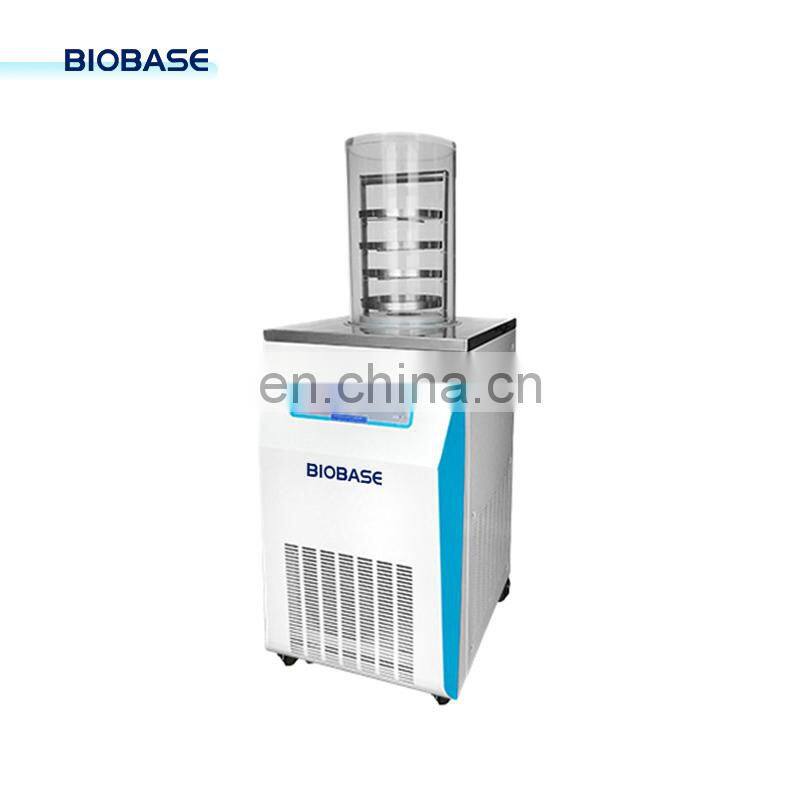

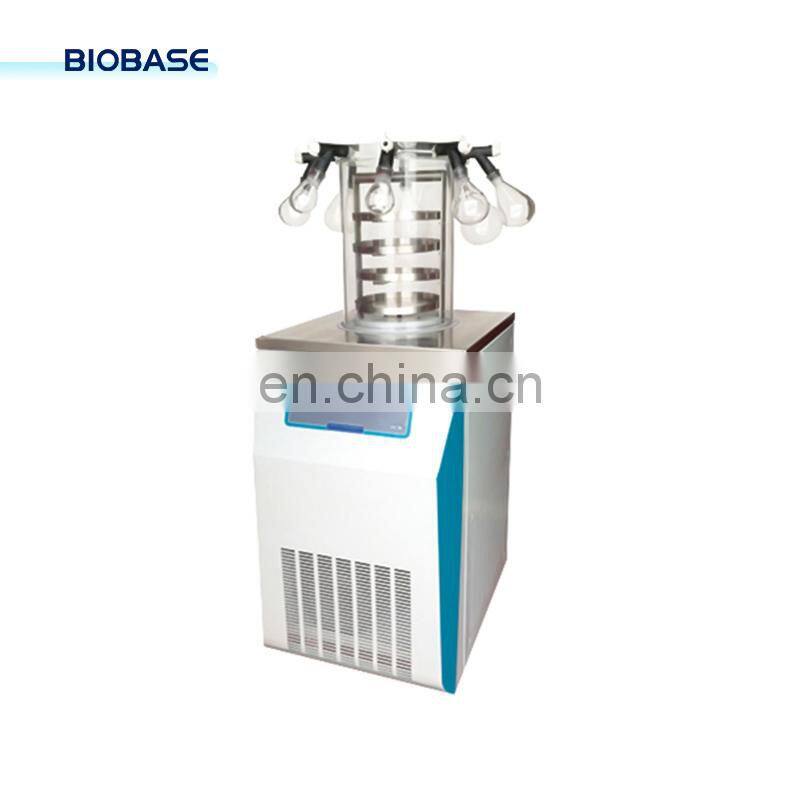

Biobase Freeze Dryer BK-FD18PT with Vacuum Pump LCD touch screen vertical freeze dryer laboratory

Detail

The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples. Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones
and other biological tissue enzymes, freeze-drying technology is applied.

Features:
1.LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.
8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.

Technical Parameters

Model			BK-FD18S(-55/-80)	BK-FD18P(-55/-80)	BK-FD18T(-55/-80)	BK-FD18PT(-55/-80)
Type			Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber	Stoppering
								chamber with 8 port manifold
Freeze Drying Area			0.18 m2			0.12m2
Tray			4 pcs			3 pcs
Height Between Trays			70mm	70mm
Cold Trap Temperature			≤-55℃/80℃	≤-55℃/-80℃
Cold Trap Capacity			22L	22L
Cold Trap Size (Dr*H)			Φ270*420mm	Φ270*420mm
Vacuum Degree			<10Pa	<10Pa
Water Capture Capacity			6kg/24h
Tray Size (D*H)			Φ240*18mm	Φ240*18mm	Φ200*18mm
Freeze Drying Time			24h
Loading Capacity/Shelf (Liquid)			0.3L
Total Loading Capacity (Liquid)			1.8L			1.2L
Drying Chamber Size (D*H)			Φ300*465mm	Φ300*465mm	Φ300*465mm
Can Load Vials Qty	Φ22mm	360			270
		Φ16mm	740			555
		Φ12mm	1320			990
Refrigerant			R134a+R22	R134a+R22
Cooling System			Air cooling
Consumption			-55℃: 1.4KW	-55℃: 1.4KW	-55℃: 1.8KW,-80℃: 2.1KW
				-80℃: 2.1KW			-80℃: 2.1KW
Power Supply			AC220V,50Hz,60Hz (single phase),
				110V,60Hz (single phase)
Standard Accessory			Vacuum pump 4L/S, 14.4m3/h (for all models), Conical-mouth flasks 100ml2, 250ml2, 500ml2, 1000ml2 (only for model BK-FD18P/PT)
Optional Function & Accessory			Tray heating (for all models),	Tray heating (for all models),
				Cold trap defrosting (for all models),	Cold trap defrosting (for all models),
				Conical-mouth flask and wide-mouth flask (for BK-FD18P/PT),	Conical-mouth flask and wide-mouth flask (for BK-FD18P/PT),
				Import vacuum pump	Import vacuum pump
External Size (WDH)			630580970/1430mm	630580970/1430mm	810580950/1410mm
Package Size(WDH)mm /	Main Body	7906901200 / 148kg	7807201200 (165kg)
Gross Weight	Drying Chamber	440440650 / 20kg	400420640 (18kg)
		Vacuum Pump	185200395 / 24kg	640220410 (25
