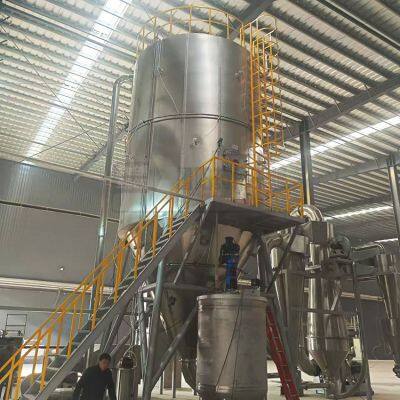

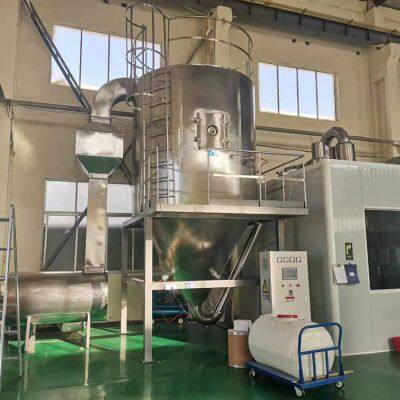

Peptide white powder spray dryer Stainless steel plant protein spray drying equipment

 Product introduction

Spray drying is a widely used process in the liquid process forming and drying industry. It is suitable for generating powdery and granular solid products from solutions, emulsions, suspensions and pasty liquid feedstocks. Therefore, spray drying is an ideal process when the particle size distribution, residual moisture content, bulk density and particle shape of the product must meet precise standards.

Working principle

The air is filtered and heated into the air distributor at the top of the dryer, and the hot air enters the drying chamber evenly in a spiral shape. The feed liquid passes through the high-speed centrifugal atomizer at the top of the tower body, (rotating) spraying into very fine mist liquid beads, which can be dried into finished products in a very short time in parallel with the hot air. The finished product is continuously output from the bottom of the drying tower and the cyclone, and the exhaust gas is emptied by the fan.

performance characteristics

The drying speed is fast, and the surface area of the material liquid is greatly increased after atomization. In the hot air flow, 95% to 98% of the water can be evaporated instantly, and the drying time only takes a few seconds. It is especially suitable for drying heat-sensitive materials.

The product has good uniformity, fluidity and solubility, and the product has high purity and good quality.

◎ The production process is simplified and the operation and control are convenient. For liquids with a moisture content of 40-60% (up to 90% for special materials), they can be dried into powder products at one time. After drying, there is no need to crush and screen, reducing the production process and improving the purity of the product. The particle size, bulk density and moisture of the product can be adjusted by changing the operating conditions within a certain range, and the control and management are very convenient.

Adapt to materials:

Chemical industry: sodium fluoride (potassium), basic dye pigments, dye intermediates, compound fertilizers, formaldehyde silica, catalysts, sulfuric acid agents, amino acids, silica, etc.

Plastic resin: AB, ABS emulsion, urine formaldehyde resin, phenolic resin, adhesive (urea) formaldehyde resin, polyethylene, polyvinyl chloride, etc.

Food industry: fat-rich milk powder, cocoa milk powder, milk powder, hunting blood powder, egg white (yellow), etc.

Food and plants: oats, chicken juice, coffee, instant tea, seasoned meat, protein, soy, peanut protein, hydrolysate, etc.

Sugars: corn syrup, corn starch, glucose, pectin, maltose, potassium sorbate, etc.

Ceramics: alumina, ceramic tile material, magnesium oxide, talc, etc.

Technical Specifications:

Model

Item/Parameter 5 25 50 150 200 - 2000

Inlet Temperature 140 - 350 Self - controlled

Outlet Temperature 80 - 90

Maximum Water Evaporation (kg/h) 5 25 50 150 200 - 2000

Drive Form of Centrifugal Spray Head Compressed Air Drive Mechanical Drive

Maximum Rotational Speed (r.p.m) 25000 18000 18000 15000 8000 - 15000

Diameter of Spray Disk (mm) 50 120 120 150 180 - 240

Heat Source Electricity Steam + Electricity Steam + Electricity, Fuel Oil, Gas, Hot - air Furnace

Maximum Power of Electric Heating (kw) 9 36 72 99

Overall Dimensions (Length × Width × Height) (m) 1.8×0.93×2.2 3×2.7×4.26 3.5×3.5×4.8 5.5×4×7 Determined According to Actual Situation

Dry Powder Recovery (%) ≥95

Note: The water evaporation amount is related to the characteristics of the material, as well as the temperature of the hot inlet air and the outlet air. When the outlet temperature is 90°C, the water evaporation curve is shown in the above figure (for model selection reference). With the continuous update of products, relevant parameters may change without prior notice.

Ordering instructions:

◎ Name and physical properties of the liquid material: solid content (or water content), viscosity, surface tension, pH value.

◎ Capacity of the dried powder, allowable residual water content, particle size, allowable maximum temperature.

◎ Output, daily operating hours.

◎ Available energy sources: available steam pressure, power capacity, available coal, oil, and gas volume.

◎ Control requirements: whether the inlet and outlet temperatures need to be automatically controlled.

◎ Powder collection requirements: whether to install a bag-type collector, and environmental requirements for exhaust gas emissions.

◎ Other special requirements.
