Product Description

Product Features

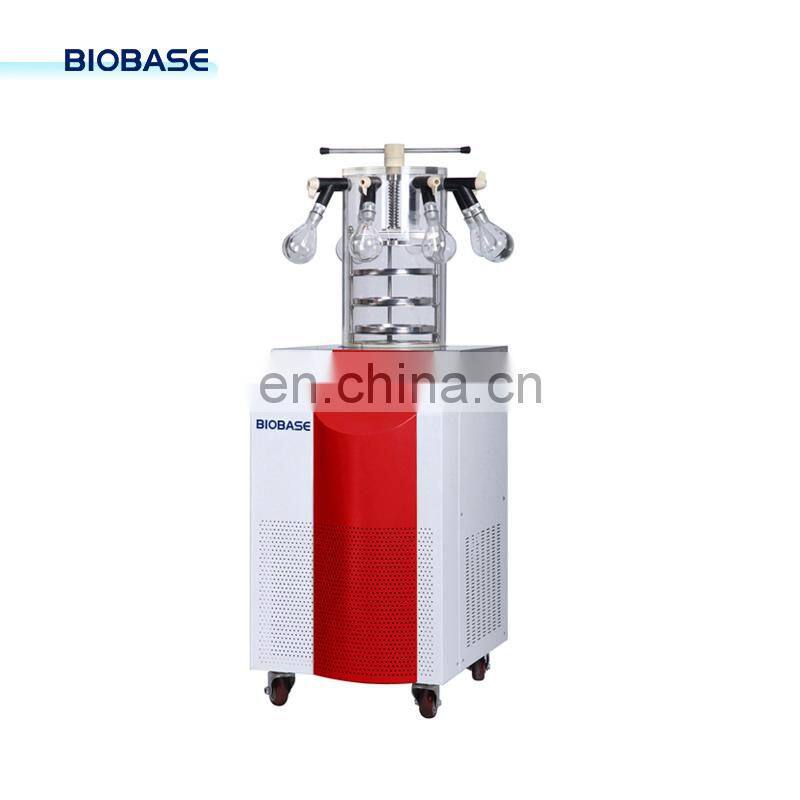

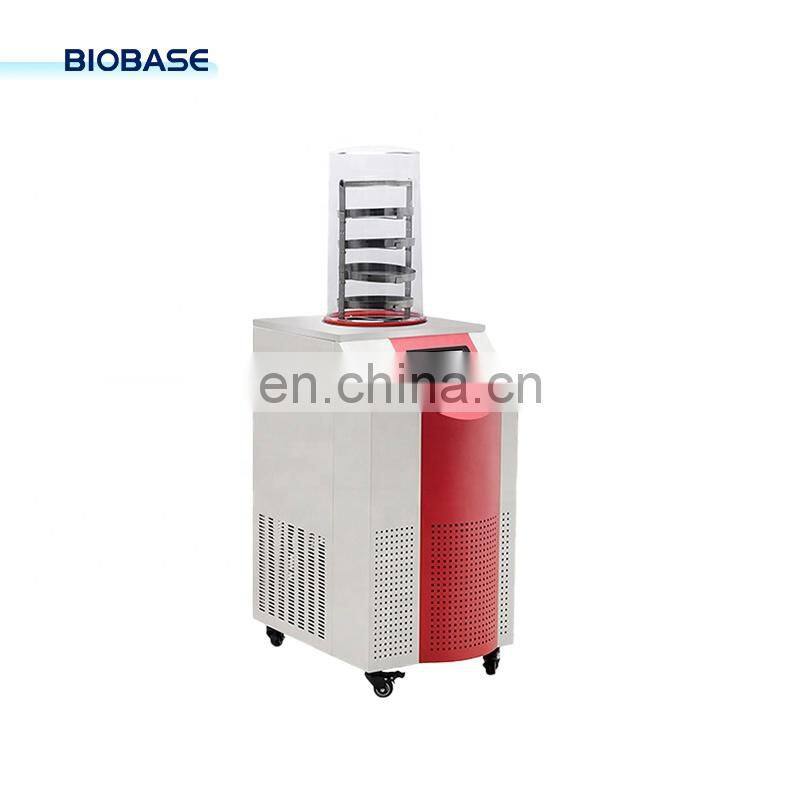

Biobase China Vertical Freeze Dryer Machine Lyophilizer Pharmaceutical Freeze Dryer BK-FD12PT(-60/-80)

Detail

Introduction of Table Top Vacuum Freeze Dryer BK-FD12PT:
The tabletop type and vertical type freeze dryer is suitable for freeze drying test of laboratory biomedical samples. Widely used drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics, vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.

Features:
1.LCD touch screen.
2. With historical data inquiry function.
3. With USB interface to export the data.
4. Large capacity ice condenser trap and without coil inside.
5. With cascade refrigeration technology.
6. Pre-freezing shelf can be used as guide barrel to speed up the drying rate.
7. Ice condenser trap and operation panel are made by stainless steel.

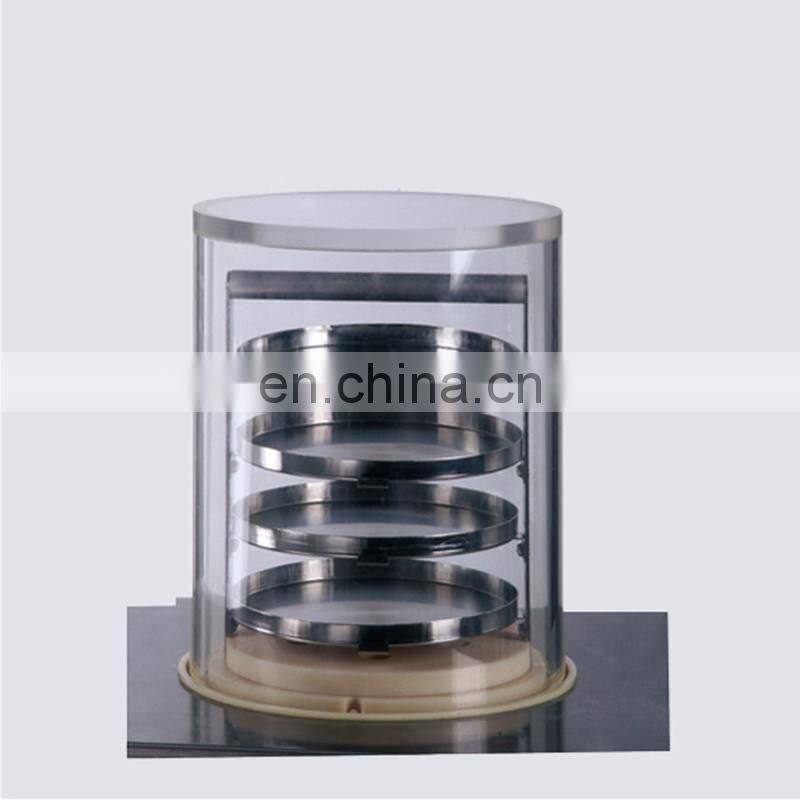

8. Drying chamber is transparent which is visual and safe.
9. Shelves are stainless steel, which can be adjustable per the requirements.

Technical Parameters

Model			BK-FD12S(-60/-80)	BK-FD12P(-60/-80)	BK-FD12T(-60/-80)	BK-FD12PT(-60/-80)
Type			Standard chamber	Standard chamber with 8 port manifold	Stoppering chamber	Stoppering chamber with 8 port manifold
Freeze Drying Area			0.12/0.18m²			0.09m²
Tray			4/6(Optional)pcs			3pcs
Height Between Trays			76/50mm			70mm
Cold Trap Temperature			≤-60℃/-80℃(Optional)
Cold Trap Capacity			9.3L
Cold Trap Size (Dr*H)			Φ217*250mm
Vacuum Degree			<10Pa
Water Capture Capacity			4kg/24h
Tray Size (D*H)			Φ200*20mm
Freeze Drying Time			24h
Loading Capacity/Shelf (Liquid)			0.3L
Total Loading Capacity (Liquid)			1.2L/1.8L			0.9L
Drying Chamber Size (D*H)			Lower circle Φ260mm, Upper circle Φ240mm Height 450mm
Can Load Vials Qty	Φ22mm	260			195
		Φ16mm	480			360
		Φ12mm	920			690
Refrigerant			R600a+R290+R23
Cooling System			Air cooling
Consumption			-60℃: 0.9kW,-80℃: 1.5kW(Optional)
Power Supply			220V/50Hz, 60Hz (single phase); 110V/220V, 60Hz (single phase); 110V/60Hz(single phase, only for -60℃)
Standard Accessory			-60℃ cold trap, Vacuum pump 2L/S, 8m³/h, Material tray, Material rack, PC cover (for all models); Conical-mouth flask 500ml8pcs, Switch valve8pcs (only for model BK-FD12P/PT)
Optional Function & Accessory			-00℃ cold trap, Electric defrost function, Nitrogen gas filling valve, Oil mist filter (for all models); 800ml wide-mouth flask(for BK-FD12P/PT)
External Size (WDH)			480620920/1370mm
Package Size (WDH)mm/ Gross Weight	Main Body	7306001180(80kg)
		Drying Chamber	620400400(15kg)
		Vacuum Pump	570360240(22kg)
