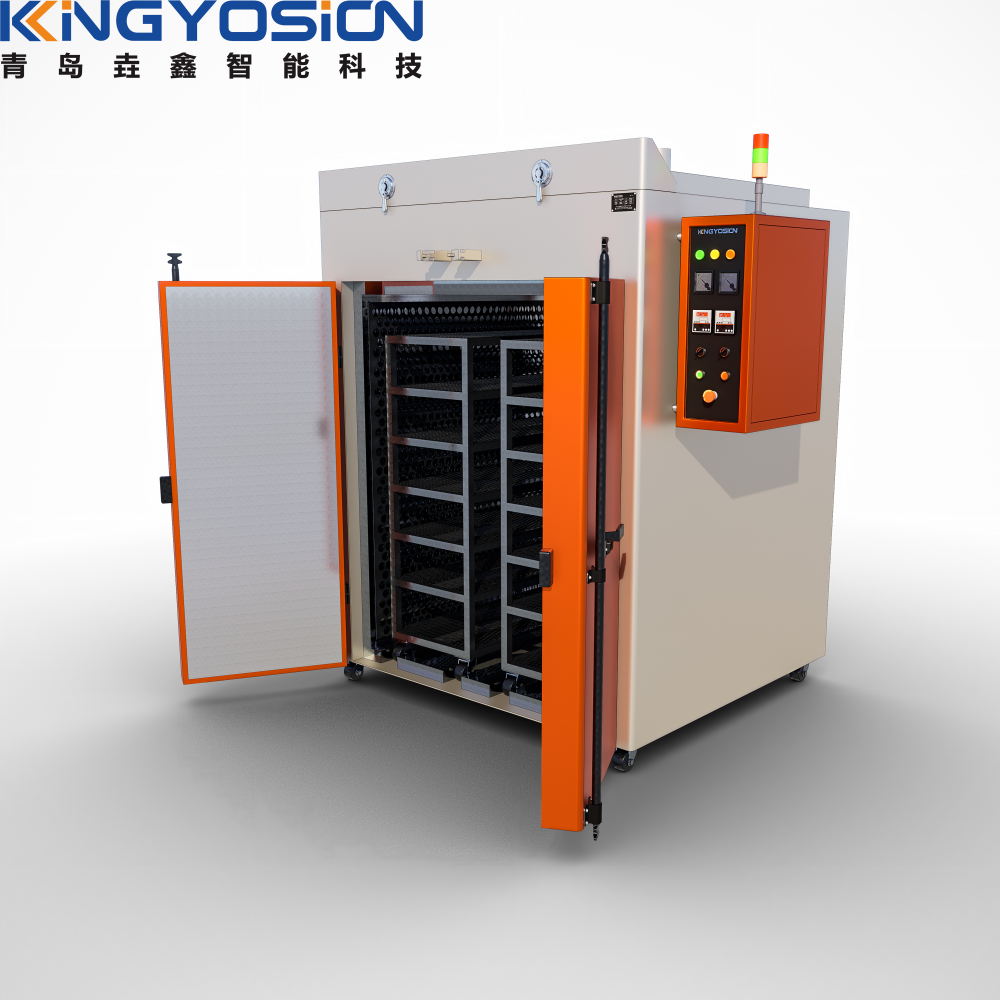

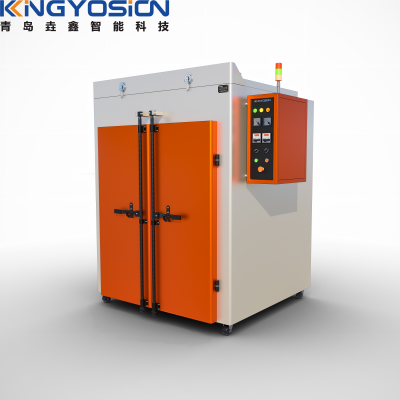

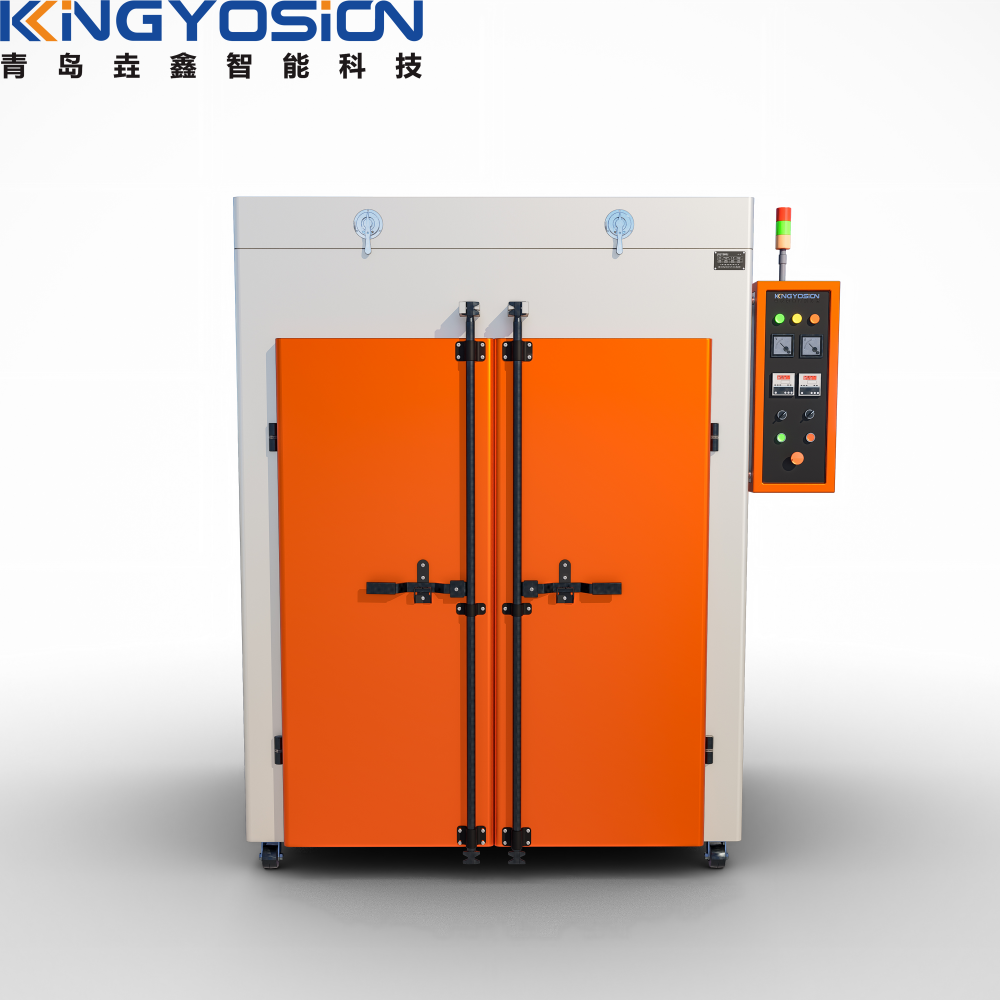

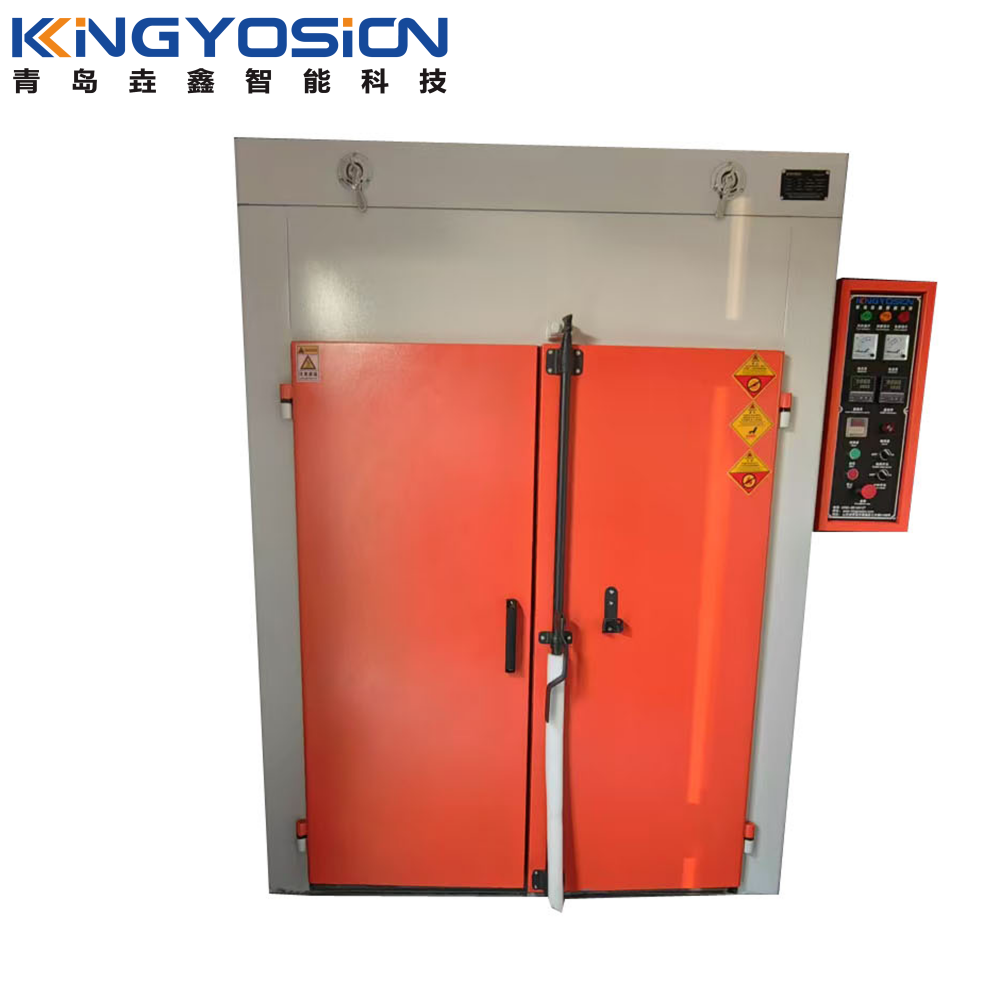

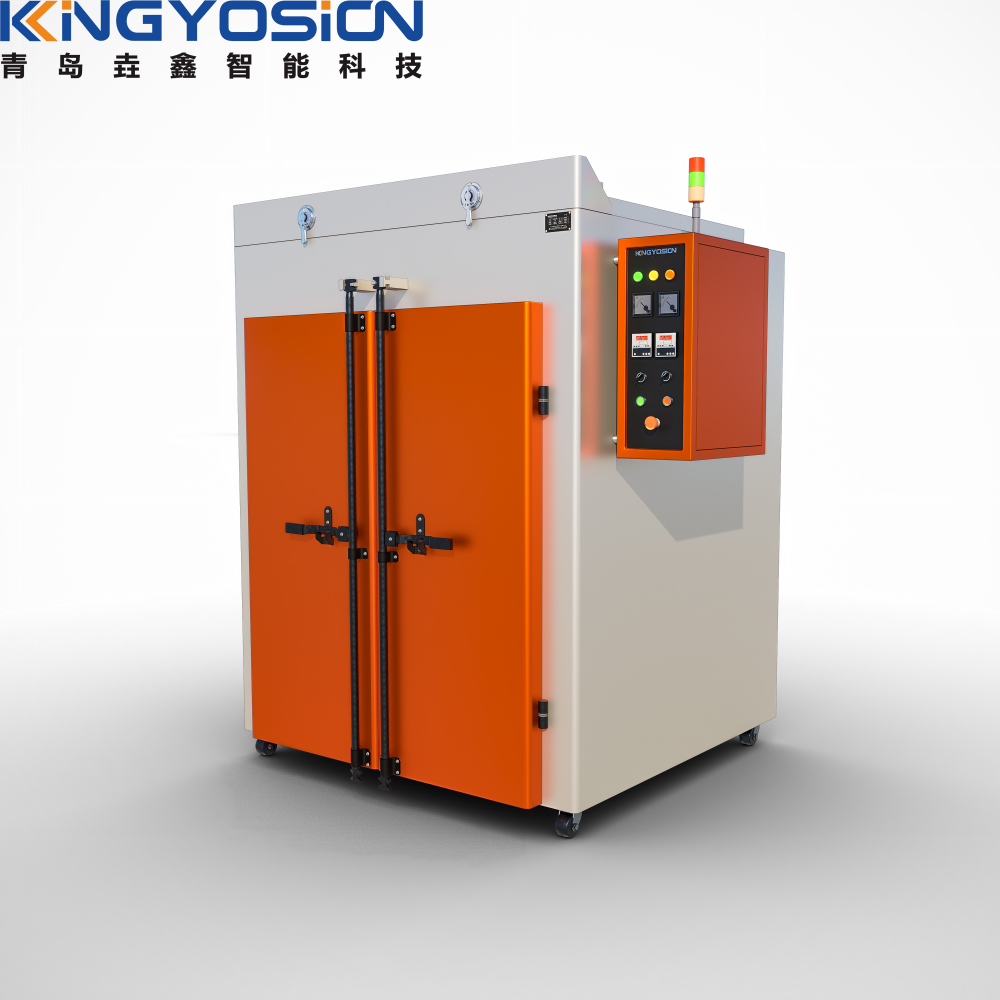

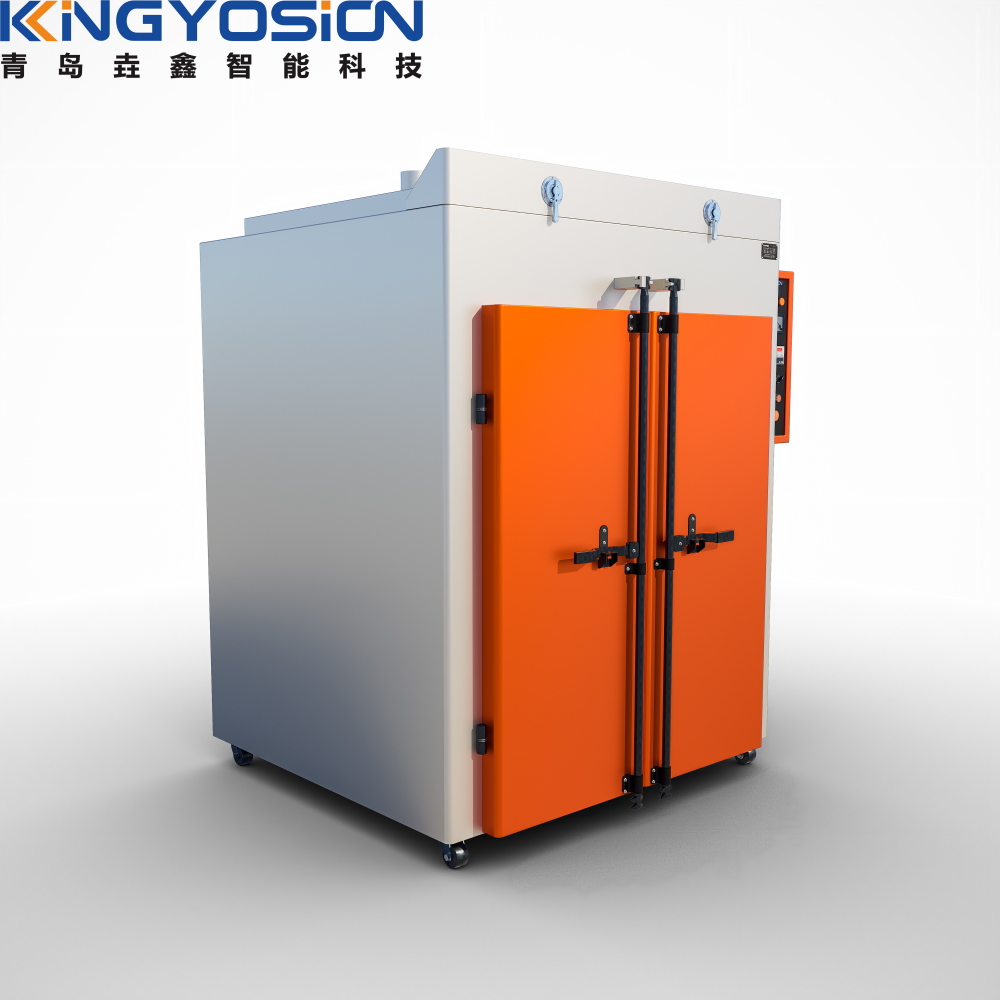

Drying Oven(with Trolley)
Usage Introduction:
This equipment is used for the purpose of drying, baking, melting and sterilizing in Industrial and mining enterprises, laboratories and scientific research institutes.
Product Features:
l Widely applicable, intelligent temperature control, stable performance, and convenient operation
l Multi layer partition groove design to meet multiple placement needs
l The exterior is made of cold-rolled sheet metal, electrostatically sprayed, with good corrosion resistance and durability
l Safe and reliable: with functions such as temperature control, timing, and over temperature alarm
l Reasonable air ducts and circulation systems to ensure uniform temperature changes within the workspace
l Customized services can be provided according to actual needs and production processes to meet different requirements
Technical Parameters:
Model |
YH-D4000T |
YH-D2000T |
Number of Doors |
2 |
2 |
Internal Volume |
4000 liter |
2000 liter |
Internal Dimension（mm） |
2100×1250×1500 |
1200×1200×1500 |
External Dimension（mm） |
2750×1500×2200 |
1850×1500×2100 |
Power Supply |
380V, 3ph, 26 Kw |
380V, 3ph, 13 Kw |
Heating Element |
201 stainless steel heater x 12pcs |
304 stainless steel heater,2KW*6 |
External Material |
1.2mm SS41 steel plate, with rust proof treatment |
1.2mm SS41 steel plate, with rust proof treatment |
Insulation Material |
rock wool K100*60mm thick |
rock wool K100*60mm thick |
Internal Material |
1.2mm 201 Stainless steel |
1.2mm 201 Stainless steel |
Ventilation |
air inlet and outlet φ120mm, air volume adjustable |
air inlet and outlet φ120mm, air volume adjustable |
Protection device |
over temperature protector, motor phase sequence, overload protector, buzzer, safety device. |
over temperature protector, motor phase sequence, overload protector, buzzer, safety device. |
Thermocouple |
Type K |
Type K |
Trolley Dimension（mm） |
850x1150x1350 |
450x1150x1340 |
Number of Trolley |
2 |
2 |
Shelves per Trolley |
6 |
6 |
Max.Operating Temperature |
120 ℃-300℃ |
120 ℃-300℃ |
Note: Sizes and temperatures can be customized according to requirements.
