Home > Products > Cold Chain Products > BIOBASE Pilot Freeze Dryer Large Capacity BK-FD30T With Intelligent Data Recording System Pilot Freeze Dryer for Lab

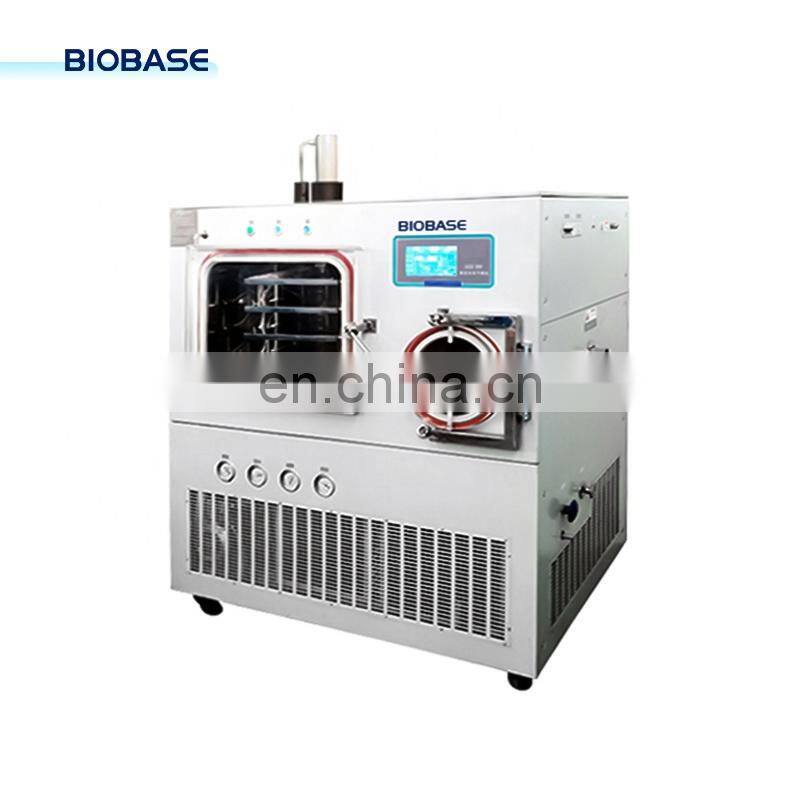

BIOBASE Pilot Freeze Dryer Large Capacity BK-FD30T With Intelligent Data Recording System Pilot Freeze Dryer for Lab

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Features:

1. Pre-freezing and drying in-situ, easy to operate, good drying effect.

2. Inflatable(discharge) value adopts safety diaphragm valve, which can be connected to inert gas source, and is filled with inert gas after drying to extend the shelf life of the
material.
3. Freeze-drying curve optimization control technology, which can control the cooling rate during the pre-freezing stage, and control the heating rate of the sample and the vacuum value of the current stage in the sublimation and analytical drying stages.
4. 7-inch true color touch screen.

Specification

Model			BK-FD20S	BK-FD20T	BK-FD30S	*BK-FD30T*
Model				(Standard)	(Stoppering)	(Standard)	(Stoppering)
Freeze Drying Area			0.3m2	0.2m2	0.4 m2	0.3m2
Shelf Temperature			-50℃～+70℃(no-loading)
Cold Trap Temperature			<75℃(no-loading)
Vacuum Degree			≤5 Pa(no-loading)
Water Capture Capacity			≥6			≥8
Cold Trap Volume			14L			/	26L
Cold Trap Size (Diameter*H)			Φ200*460mm			/	Φ320*520mm
Drying Chamber Size (WDH)			330325470mm			340500420mm	480380540mm
Shelf & Tray Size			Shelf:40027018mm			30034018mm
(WDH)			Tray:39526525mm			29533525mm
Qty. Of Shelf & Tray			Shelf:3+1	Shelf:2+1	Shelf:4+1	Shelf: 3+1
			Tray:3	Tray:2	Tray:4	Tray: 3
Sample Loading Capacity (Liquid)			3L	2L	4L	3L
Height Between Trays			70mm			50mm	70mm
Tray Temperature Difference			±1℃
Refrigerant			R404A + R23
Condenser Cooling Mode			Air cooling
Defrost Mode			Electric defrosting	Electric defrosting	Natural defrosting(option electric defrosting)	Electric defrosting
Stoppering Mode			/	manual	/	automatic
Total Qty. Of Vial	Φ22mm	/	440	/	654
	Φ16mm	/	868	/	1200
	Φ12mm	/	1554	/	2187
Vacuum Pump			4L/S(14.4m3/h)	4L/S(14.4m3/h)	6L/S(22m3/h)	6L/S(22m3/h)
Electric Defrosting Consumption			800W	800W	/	1000W
Silicone Oil Heating Rods Consumption			800W	800W	1000W	1000W
Hydraulic Pressure Station Consumption			/	500W	/	1000W
Total Consumption			3KW	3KW	4.5KW	5.5KW
Power Supply			AC220V, 50Hz/60Hz (single phase)
Main Body Weight			300kg	300kg	400kg	400kg
External Size（mm）			8407501580	8407501580	9207801350	12608501420
(WDH)			8407501580	8407501580	9207801350	12608501420
Packing Size (WDH) And Gross Weight	Main Body	9808601720 mm/400kg	9808601720 mm /470kg	11009801570mm/450kg	144010701720mm/651kg
	Vacuum Pump	950420500mm (37kg)			790340460mm (57kg)	790300470mm (52kg)

Similar products

Packing & Delivery

Standard wooden Packing

Company Profile

BIOBASE was founded in 1997, focusing on development, production and management of laboratory and medical equipment. BIOBASE provide one-stop procurement solution which can not only reduce the resourcing cost, but also can ensure good quality and sufficient after-sale service.

BIOBASE is specialized in products of 9 areas including laboratory equipment, cleaning and disinfection equipment, laboratory safety protection product, cold chain product, medical equipment, general analytical equipment, measuring equipment, physical test equipment and some industry research equipment. BIOBASE has excellent research team, strong quality control team, professional sales team and responsible after-sale service team, to provide you quality products and good service. BIOBASE also made field trip to many suppliers in China, controlled the product quality strictly instead of customers, as well as strived from the suppliers to get competitive pricing. Recently, BIOBASE has confirmed many OEM partners and will keep searching for more suppliers upon customer' request. BIOBASE would like to establish win-win business cooperation with distributors all over the world.
