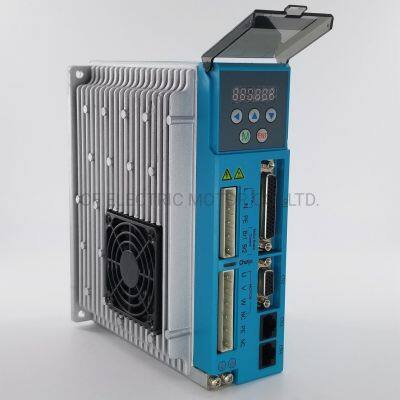

High Voltage Digital Stepper Servo Drive CF30822E
Overview
The CF30822E stepper servo drive system integrates the servo control technology into the digital stepper drive perfectly, and fit the NEMA 34,42 three-phase stepper motor. This stepper servo driver uses the latest 32-bit DSP and combines the advanced servo algorithm to control. Compared to the traditional step drive, this step servo driver can completely avoid the stepper motor lost step problem, and effectively restrain the temperature rise of the motor, reduce the motor vibration, greatly enhance the performance of high-speed motor. At the same time, the size of the adapter is compatible with the traditional step motor, which is convenient for customers to upgrade and replace. In short, the stepper servo driver set the advantages of no lost step, low temperature rise, high speed, high torque, low cost and so on in one, is a cost-effective high motion control products.
Key Features
1. Without losing step, High accuracy in position
2. 100% rated output torque
3. Variable current control technology, High current efficiency
4. Little vibration, Smooth and reliable moving at low speed
5. Accelerate and decelerate control inside, Great improvement in smoothness of starting or stopping the motor
6. User-defined micro steps
7. Compatible with 1000 and 2500 lines encoder
8. No adjustment in general application
9. Lack of phase, over current, over voltage and over position protection
10. Six digital tube display, easy to set parameters and monitor the motor running state
Key Specifications
180~250VAC supply voltageSuitable for 3-phase, 3 leads hybrid stepping servo motors, with NEMA size34 to 42Continuous output current 4.0AOptical isolation signal input / outputPositioning accuracy is 200~ 51200 steps / turn Over Voltage, Coil to Coil and Coil to ground short circuit protectionPulse Input Frequency 0~200KHz
