2 Phase 86mm Size 10n. M 34HS13040/86sth130-6004 Length 130mm NEMA 34 Stepper Motor

2 Phase 86mm Size 10n. M 34HS13040/86sth130-6004 Length 130mm NEMA 34 Stepper Motor thumbnail-1
2 Phase 86mm Size 10n. M 34HS13040/86sth130-6004 Length 130mm NEMA 34 Stepper Motor thumbnail-2
2 Phase 86mm Size 10n. M 34HS13040/86sth130-6004 Length 130mm NEMA 34 Stepper Motor thumbnail-3

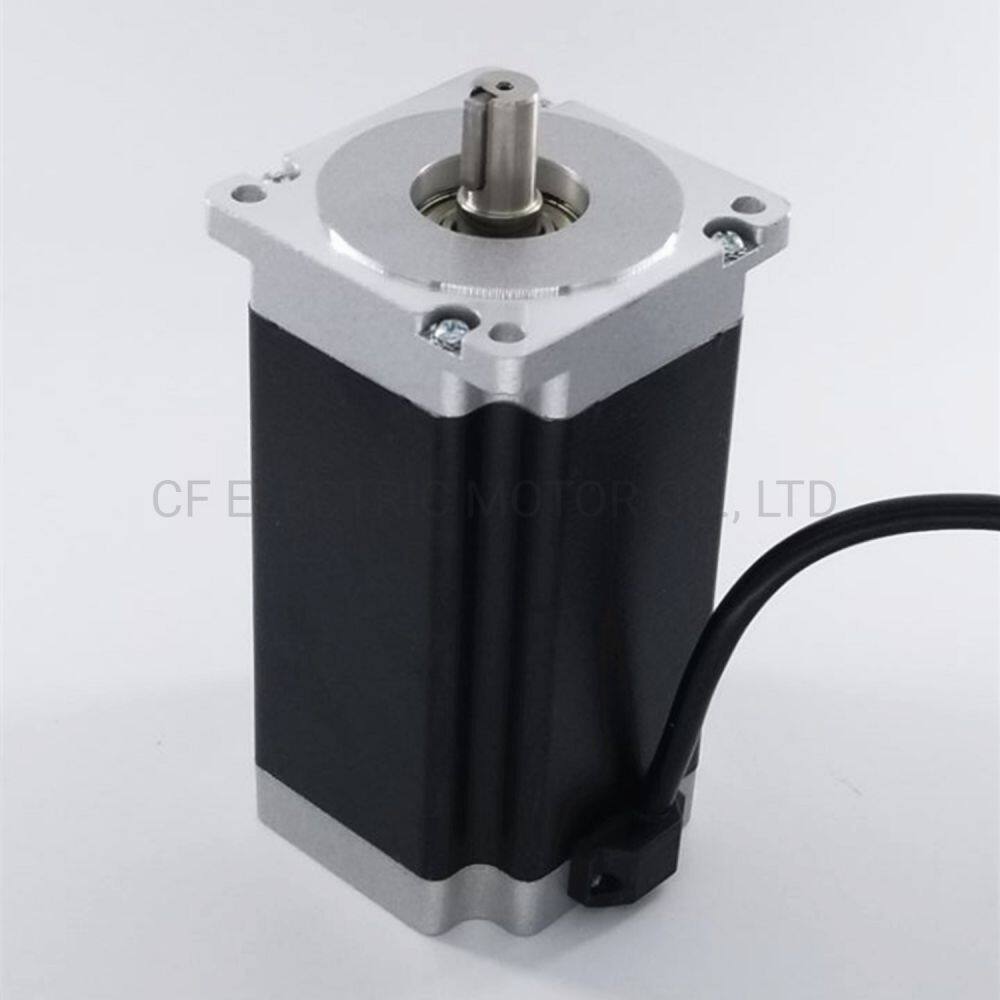

2 Phase 86mm Size 10n. M 34HS13040/86sth130-6004 Length 130mm NEMA 34 Stepper Motor photo-1

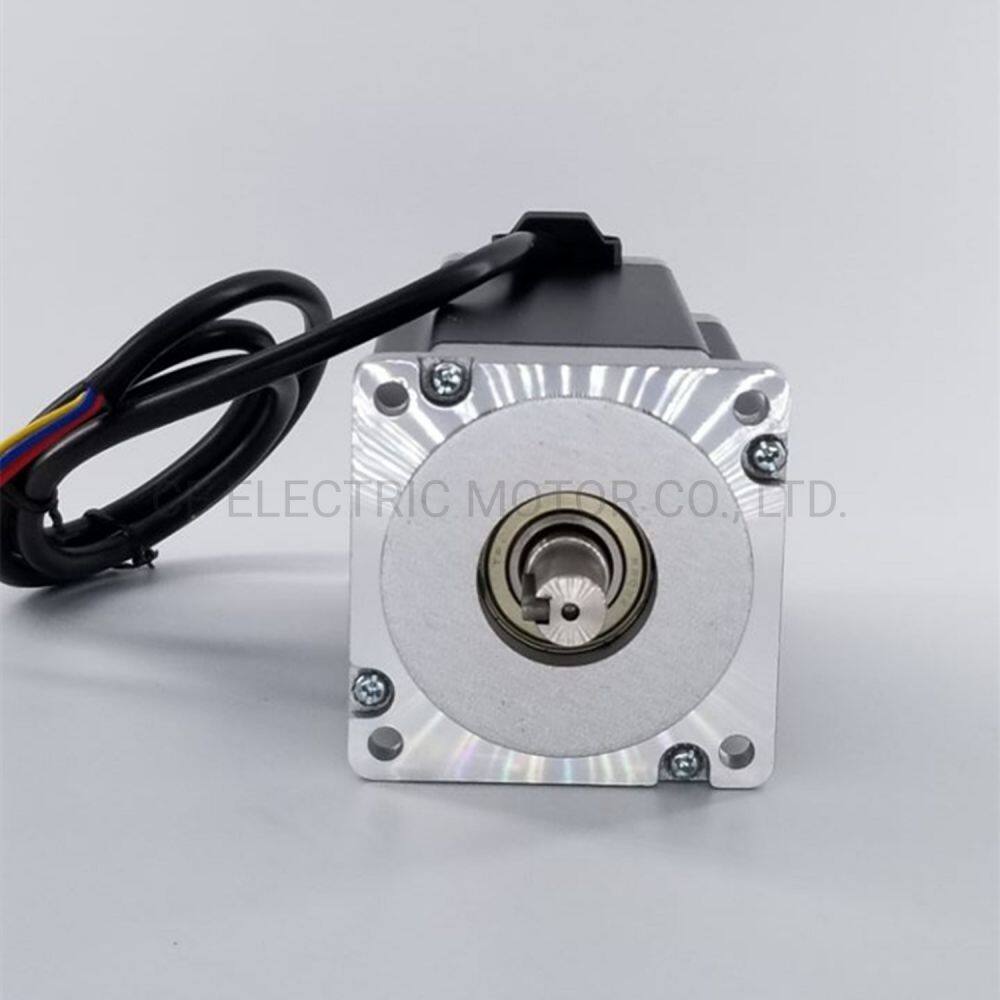

2 Phase 86mm Size 10n. M 34HS13040/86sth130-6004 Length 130mm NEMA 34 Stepper Motor photo-2

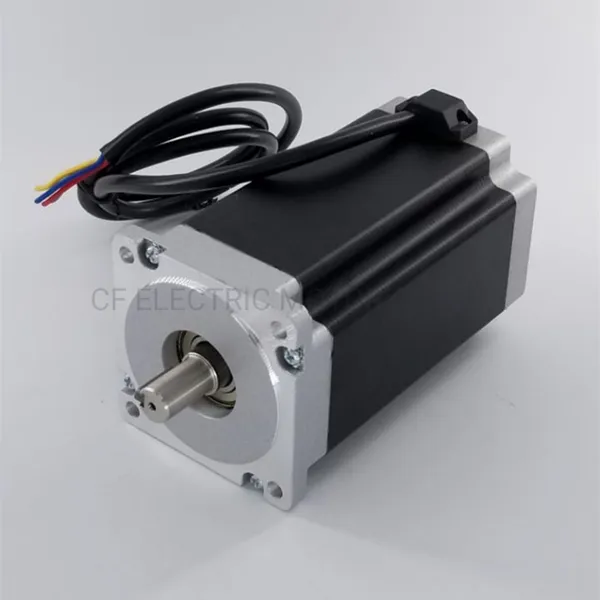

2 Phase 86mm Size 10n. M 34HS13040/86sth130-6004 Length 130mm NEMA 34 Stepper Motor photo-3
US$ 1 - 58.04 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
THANK, CHANGFENG, CF
Place of Origin:
China
Type:
Variable Reluctance
Contact Supplier Request Quote Chat Now
CF Electric Motor Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT, CHANGZHOU PORT
Delivery Detail:
3 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name THANK, CHANGFENG, CF
Place of Origin China
Type Variable Reluctance
Phase 2
Certification CE, ISO, ROHS

                                              HYBRID STEPPING MOTOR  34HS  SERIES


General  Specifications:
Step Angle ----------------------------------------------------------------------------------------------------------------1.8° (full step)
Step Angle Accuracy --------------------------------------------------------------------------------------±5%(full step, no load)
Resistance Accuracy --------------------------------------------------------------------------------------------------------------±10%
Inductance Accuracy --------------------------------------------------------------------------------------------------------------±20%
Temperature Rise ----------------------------------------------------------------------80ºC Max(rated current, 2 phases on)
Ambient Temperature Range ----------------------------------------------------------------------------------------  -20ºC∽+50ºC
Insulation Resistance ---------------------------------------------------------------------------------------  100MΩ Min. 500VDC
Dielectric Strength --------------------------------------------------------------------------------- 500VAC 50Hz 1mA 1 Minute
Insulation Class ------------------------------------------------------------------------------------------------------------------ B class



Electrical  Specifications:

Model L
Motor Length
(mm)		 Holding
Torque
(N.cm)
Min.		 Rated
Current
(A)		 Phase
Resistance
(Ω)		 Phase
Inductance
(mH)		 Rotor
Inertia
(g.cm²)		 Lead
Wire		 Detent
Torque
(N.cm)
Max.		 Motor
Weight
(g)
34HS6540 65 240 4 0.65 3.3 0.8 4 10 1.9
34HS7060 70 340 6 0.4 1.7 1.0 4 12 2.1
34HS8060 80 450 6 0.45 3.0 1.23 4 15 2.3
34HS10060 100 728 6 0.50 4.8 2.7 4 20 3.3
34HS11860 118 870 6 0.57 5.5 3.3 4 30 3.7
34HS13060 130 1000 6 0.6 5.8 4.0 4 35 4.0
34HS15060 150 1200 6 0.7 6.8 5.0 4 45 5.5
*Shown in the table is the representative product. It can be customized according to the requirements of users.
