86STH3P70-4003 Hybrid Stepper Motor

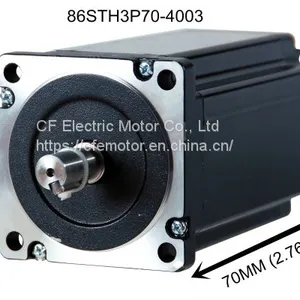

86STH3P70-4003 Hybrid Stepper Motor thumbnail-1
86STH3P70-4003 Hybrid Stepper Motor photo-1
US$ 20.5 - 118.5 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
THANK
Place of Origin:
China
Model Number:
86STH3P70-4003
Contact Supplier Request Quote Chat Now
CF Electric Motor Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Changzhou, Shanghai port
Delivery Detail:
20 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name THANK
Place of Origin China
Model Number 86STH3P70-4003
Type Hybrid
Phase 3
Certification CE, ISO, ROHS
Current / Phase 4.0A/3 phase
Holding Torque 250N. cm Min.
Step Angle(degrees) 1.2 degrees full step

86STH3P70-4003 Hybrid Stepper Motor


General Specification:



Step Angle --------------------------------------------------------1.2° (full step)

Step Angle Accuracy ------------------------------------------±5 %( full step, no-load)

Resistance Accuracy ------------------------------------------±10%

Inductance Accuracy ------------------------------------------±20%

Temperature Rise ----------------------------------------------80℃ Max

Ambient Temperature Range -------------------------------20℃∽+50℃

Insulation Resistance ---------------------------------------- 100MΩ Min. 500VDC

Dielectric Strength ---------------------------------------------500VAC 50Hz 1mA 1min

Insulation Grade------------------------------------------------ B grade



Electric Specifications:



Model

L

 Motor Length

(mm)

Holding   Torque

(N.cm)

Min.

Rated   Current

(A)

Phase   Resistance

(Ω)

Phase   Inductance

(mH)

Rotor   Inertia

(kg.cm²)

Lead Wire

Detent Torque

(N.cm)

Max.

Motor   Weight

 (kg)

86STH3P70-4003

70

250

4.0

0.7

9.3

1.1

3

12

2.1



86STH3P70-4003 is one of the representative product models. It can be customized if users have special requirement.
