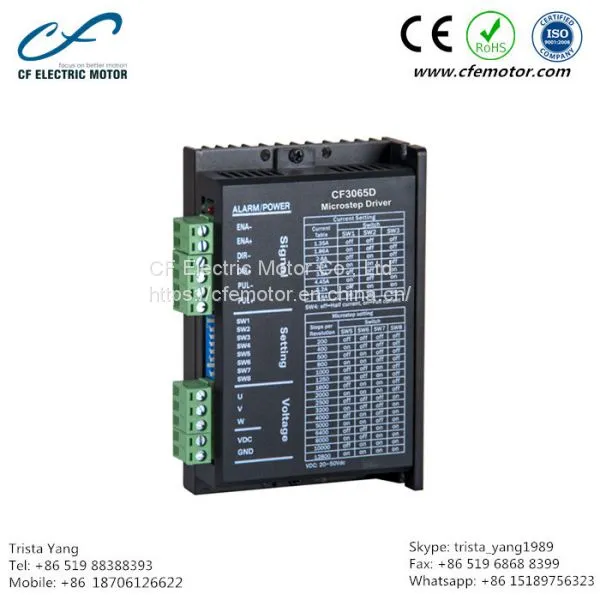

3-Phase Stepping Motor Driver CF3065D

3-Phase Stepping Motor Driver CF3065D thumbnail-1
3-Phase Stepping Motor Driver CF3065D photo-1
US$ 10 - 100 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
THANK
Place of Origin:
China
Model Number:
CF3065D
Contact Supplier Request Quote Chat Now
CF Electric Motor Co., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI PORT
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name THANK
Place of Origin China
Model Number CF3065D
Motor Type DC Motor

3-Phase Stepping Motor Driver CF3065D


Overview

CF3065D uses servo control principle technology. It has motor parameter adaptive function which ensures the best performance of the motor. The technology can significantly reduce the motor noise and improve stability. The maximum drive current is 5.8A and the highest positioning accuracy of 64 subdivisions can reach up to 12,800 steps / turn.



Key Features

1.    20 to 50VDC supply voltage

2.    3-phase Micro-stepping Drive

3.    Suitable for 3-phase, 3 and 6 leads step motors, with NEMA size17 to 34

4.    Output current selectable from 1.35~5.8A

5.    Current reduction by 50% automatically, when motor standstill mode is enabled

6.    Maximum steps for 12800 steps

7.    Over Voltage, Coil to Coil and Coil to ground short circuit protection

8.    Pulse Input Frequency 0～200KHz.


Product Tags: 3-Phase Stepping Motor Driver , Motor Driver , 3-Phase Stepper Motor
