Closed Loop Stepper Motor Driver

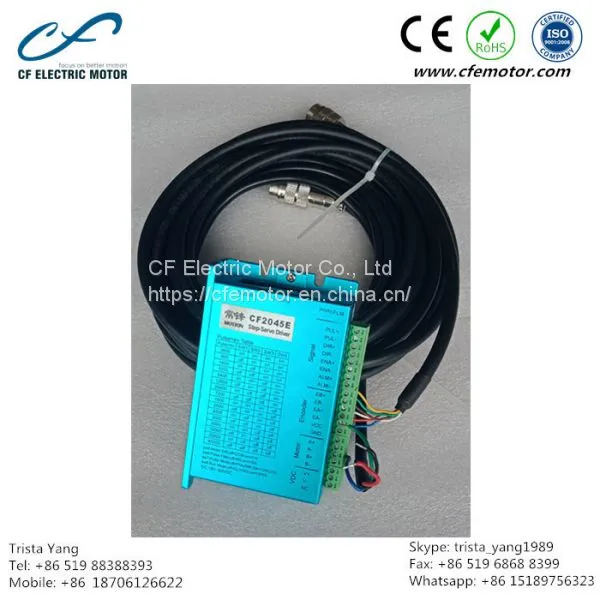

CF2045E
Overview
CF2045E Hybrid Step Servo Drive System flawlessly integrates digital stepping drive technology with servo control technology, the product utilizes the classic current, speed and position two-loop control system, and combines stepping and servo system advantages, making an extremely cost-effective motion control product.
Electrical and the Ambient Feature
Parameters |
Min. Value |
Typ. Value |
Max. Value |
Unit |
Supply Voltage（1） |
15 |
24 |
60 |
V |
Output Peak Current |
0 |
-- |
6 |
A |
Logical Input Voltage |
3.3 |
28 |
V |
|
Pulse Input Frequency |
0 |
-- |
1M |
Hz |
Logical output Current |
0 |
-- |
100 |
mA |
+5V Power Load Current（2） |
0 |
-- |
100 |
mA |
Driver Work Temperature |
0 |
-- |
85 |
℃ |
Motor Work Temperature |
-20 |
-- |
85 |
℃ |
Dial Code Settings
CF2045E includes 8 dial code switches:
SW1-SW4 Segment set
Steps/revolution |
SW1 |
SW2 |
SW3 |
SW4 |
400 |
on |
on |
on |
on |
800 |
off |
on |
on |
on |
1600 |
on |
off |
on |
on |
3200 |
off |
off |
on |
on |
6400 |
on |
on |
off |
on |
12800 |
off |
on |
off |
on |
25600 |
on |
off |
off |
on |
51200 |
off |
off |
off |
on |
1000 |
on |
on |
on |
off |
2000 |
off |
on |
on |
off |
4000 |
on |
off |
on |
off |
5000 |
off |
off |
on |
off |
8000 |
on |
on |
off |
off |
10000 |
off |
on |
off |
off |
20000 |
on |
off |
off |
off |
40000 |
off |
off |
off |
off |
Various kinds of segments can be customized according to requirement, including electronic gear function.
SW5 Motor Running Direction Setting
SW6 Pulse Command Smoothing Function
SW7 PUL+DIR & CW+CCW
1) When SW7 is OFF state, the PUL+DIR formal instruction is received
2) When SW7 is ON state, the CW+CCW formal instruction is received
When customer needs orthogonal follow, the PC debugging software is used for setting.
SW8 Pulse frequency limits 200KHZ, 1MHz
1) When SW8 is OFF, the max. frequency of pulse instruction is 200KHZ
2) When SW8 is ON, the max. frequency of pulse instruction is 1MHz.
To make changes by PC debugging software when customer needs other frequency.
Driver Interface and Wiring
1. Motor and Power Supply Interface
Function |
Mark No. |
Definition |
Power supply input Pin |
NC |
· Suspended, no connection |
GND |
Input DC power supply negative pole |
|
VDC |
Input DC power supply positive pole |
|
Motor Wiring Pin |
B- (Black） |
Connect both ends of motor group B winding |
B+ (Green） | ||
A- (Blue） |
Connect both ends of motor group A winding |
|
A+ (Red） |
2. Encoder Interface
Pin Series No. |
Mark No. |
Function |
1 |
EB+ |
Encoder B phase positive input |
2 |
EB- |
Encoder B phase negative input |
3 |
EA+ |
Encoder A phase positive input |
4 |
EA- |
Encoder A phase negative input |
5 |
+5V |
Encoder power supply |
6 |
GND |
Encoder ground |
3. Control Signal Interface
Pin No. |
Mark No. |
Function |
1 |
PUL＋ |
Pulse differential input interface |
2 |
PUL- |
|
3 |
DIR＋ |
Direction differential input interface |
4 |
DIR－ |
|
5 |
ENA＋ |
Enable input interface |
6 |
ENA- |
|
7 |
ALM+ |
Can be reused for in - place signal output, lock output. It default as failure alarm output |
8 |
ALM- |
Installation Dimensions (mm)
