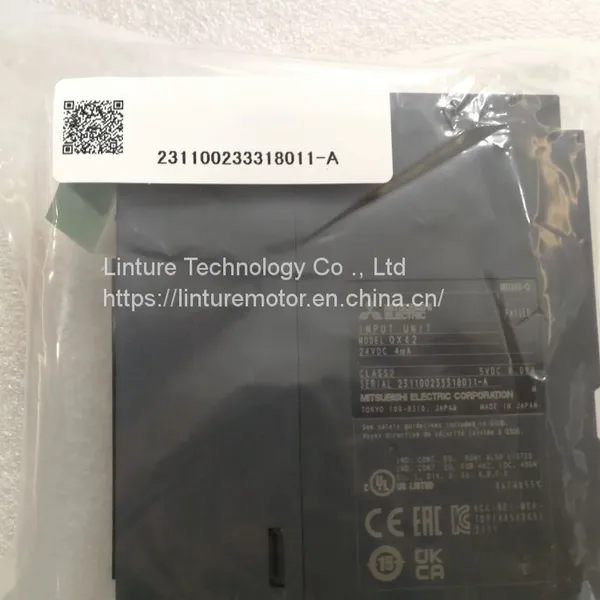

Help CenterDC Input Moudel Positive Common Terminal Type QX42 Model Isolation Method
Related Products
-
Q Series DC Power Supply Mitsubishi QY81P Model 32 Point Source OutputUS$ 1 - 1000000MOQ: 1 Unit -
Stored Program Repeat Operation Controller Q03UDVCPU CPU ModuleUS$ 1 - 1000000MOQ: 1 Unit
-
Three Phase Three Wire Type Mitsubishi Driver QH42P With IntelligentUS$ 1 - 1000000MOQ: 1 Unit
-
Q Series Current Moudel Mitsubishi Q64PN Moudel The Basic Conversion ModuleUS$ 1 - 1000000MOQ: 1 Unit
-
PLC Simple Motion Moudel Mitsubishi Model QD77MS16 With 16 Controller AxesUS$ 1 - 1000000MOQ: 1 Unit
Qx42 Parameter Description: DC input 64 points, DC24V 4mA, response time 1 / 5
/ 10 / 20 / 70ms, 32 points, 1 common end, common anode, 40 pin connector * 2.
Specification of Mitsubishi PLC moudel qx42:
[input form] DC input module (positive common terminal type)
[input points] 32 points
[isolation method] Optocoupler
[rated input voltage] DC24V (+ 20 / - 15%, ripple coefficient within 5%)
[rated input current] about 4mA
[enter derating value] refer to derating diagram
[on voltage / on current] 19v or higher / 3mA or higher
[off voltage / off current] 11V or less / 1.7ma or less
[input impedance] about 5.6k Ω
[on - > off response time] 1ms / 5ms / l0ms / 20ms / 70ms or less (CPU
parameter setting) initialization set to 10ms
[off - > on response time] 1ms / 5ms / l0ms / 20ms / 70ms or less (CPU
parameter setting) initialization set to 10ms
[dielectric withstand voltage] 560vac MS / 3 cycles (altitude 2000m (6557.38
feet))
[insulation resistance] 10m Ω or higher measured by insulation resistance
tester
[immunity] through 1500vp-p noise voltage, 1 μ Voice simulator with s voice
width and 25 to 60Hz voice frequency
First instantaneous voice iec61000-4-4: 1kV
[protection grade] IP2X
[common terminal arrangement] 32 points / common terminal (common terminals:
1b01, 1b02, 2B01, 2B02)
[I / O points] 64 (set the I / O allocation according to the 32 point input
module.)
[running indicator] on indication (LED)
[external connection] 40 pin connector
[applicable wire diameter] core 0.3mm2 (for a6con1)
[external wiring connector] a6con1, a6con2, a6con3 (optional)
[applicable connector / terminal strip] a6tbxy36, a6tbxy54, a6tbx70
[5VDC internal current consumption] 90a (standard: all points on)
[overall dimension (h * w * d)] 98 * 27.4 * 90mm
[weight] 0.18kg
