Q Series Current Moudel Mitsubishi Q64PN Moudel The Basic Conversion Module

The basic conversion moudel of Q series and the additional basic installation
connection adapter unit of a series. Applicable to: a5-b / a6-b. MES interface
module. MX mesinterface software and CF card are required. Easily connect
production equipment and information systems.
Through excellent database sharing function, the cost of informatization is
greatly reduced
In the way of direct connection, the connection process with enterprise system
database (such as MES) is simplified. Module deployment is simple without any
programming q64pn
The data can be monitored on the module side. In case of user-defined trigger
conditions, the specified data will be read in the form of SQL text and sent to
MES.
Compared with the previous scheme of acquiring / monitoring data through
gateway PC, it can reduce the network load, receive information from MES and
execute the SQL task of pre customer storage. In addition, it also receives
production instructions from MES.
Download the production information from the database and modify the formula
information conveniently. Base plate module installation position: QS series
power module installation slot.
Applicable substrate module: qs034b Input power supply: AC100 ~ 120V
Safety PLC (safety programmable system) refers to a programmable system that
can still respond accurately and cut off the output in time in case of failure
of itself or peripheral components or actuators.
Different from ordinary PLC, safety PLC can not only provide the function of
ordinary PLC, but also realize the function of safety control,
Meet the requirements of EN ISO 13849-1, IEC 61508 and other standards for
safety related components of control system. The mainstream safety PLCs in the
market include PSS 3000pss 4000 of PiZ, among which PSS 4000 can handle
standard control procedures in addition to safety procedures. All components in
the safety PLC adopt a redundant and diverse structure, and the two processors
conduct cross detection when processing,
The processing results of each processor are stored in its own memory and will
be output only when the processing results are completely consistent
If any inconsistency occurs during processing, the system will be shut down
immediately. Input points: 32 external servo signals, 8 axes. Input mode:
source type / drain type.
Input and output occupied points: 32 points. It is convenient to process large
capacity data.
In the past, it was impossible to realize the continuous access of standard ram
and SRAM card file memory area. The boundary of each region needs to be
considered when programming.
8MB SRAM expansion card is installed in the high-speed general-purpose qcpu,
which can take the standard RAM as a continuous file register with a capacity
of up to 4736k words, thus simplifying programming. Therefore, even if the soft
element memory space is insufficient,
You can also easily expand the exhibition file storage area by installing an
extended SRAM card.
The index register is extended to 32 bits, so that the programming can also go
beyond the traditional 32K words, and the index modification is extended to all
areas of the file register.
In addition, the processing speed of index modification plays an important role
in the efficient operation of structured data (array), which has been improved.
When indexing modification is used in repeated processing programs (such as
instructions from for to next, etc.), the scanning time can be shortened

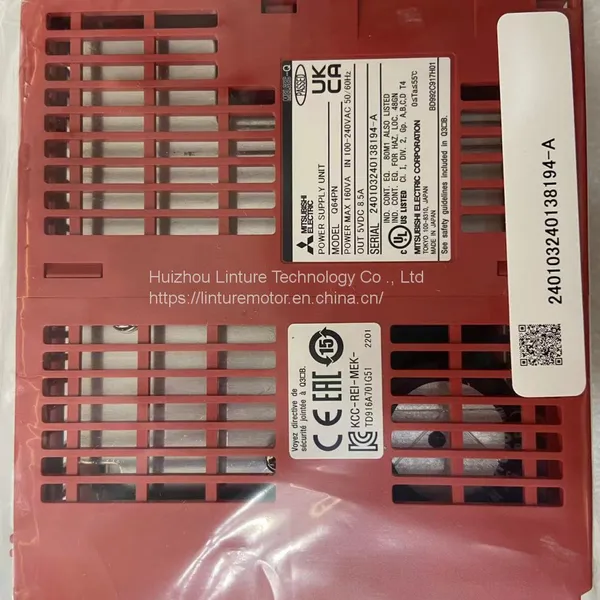

Specification of Mitsubishi q series power module q64pn
[installation position] it is installed in the slot of the power module
[applicable substrate] Q3 □ B, Q3 □ dB, Q6 □ B
[input power] AC100 ~ 240V (- 15% ~ + 10%)
[input frequency] 50 / 60Hz ± 5%
[input voltage distortion factor] within 5%
[maximum input apparent power] 160va
[starting current] within 20a and 8ms
[rated output current (DC5V)] 8.5a
[overcurrent protection (DC5V)] above 9.9A
[overvoltage protection (DC5V)] 5.5 ~ 6.5V
[efficiency] more than 70%
[allowable instantaneous power failure time] within 20ms
[operation indication] LED indication (on when 5VDC output)
[fuse] built in (user cannot change)
[contact output section]
. application: err contact (the contact changes to off when the CPU stops in
error)
. rated switching voltage / current: 24VDC 0.5A
. minimum switching load: 5VDC 1mA
. response time
Off - > on below 10ms
On - > off under 12ms
. service life
Machinery: more than 20 million times
Electrical: rated switching voltage / current, 100000 times or more
. surge suppressor: None
. fuse: None
[external wiring mode] screw terminal block (M3.5 screw)
[applicable wire diameter] 0.3 ~ 2mm Square
[applicable to clamping terminal] RAV1 25~3.5,RAV2~3.5
[applicable tightening torque] 59 ~ 88N? cm
[overall dimension h * w * D] 98 * 55.2 * 115mm
[weight] 0.47kg
