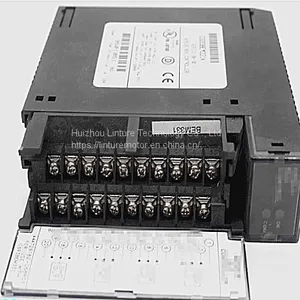

IC200ALG325 GE Versa Max Analog Output Module AC Synchronous Motor thumbnail-3
IC200ALG325 GE Versa Max Analog Output Module AC Synchronous Motor photo-1
IC200ALG325 GE Versa Max Analog Output Module AC Synchronous Motor photo-2

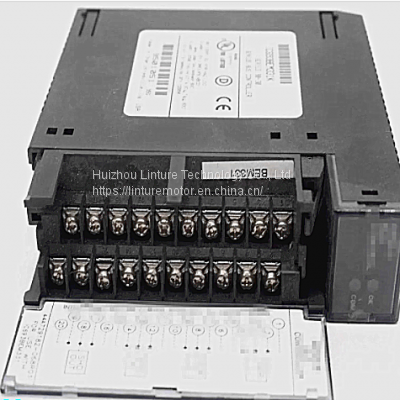

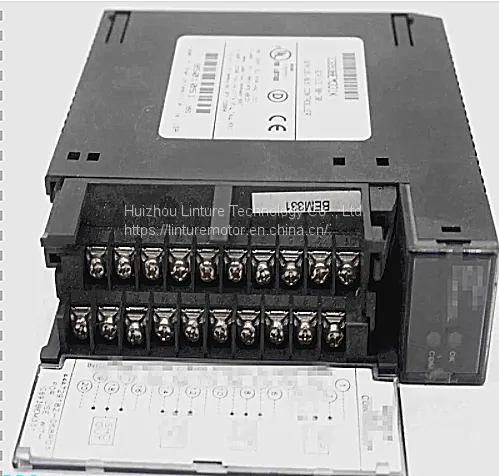

IC200ALG325 GE Versa Max Analog Output Module AC Synchronous Motor photo-3
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
GE
Place of Origin:
Japan
Model Number:
IC200ALG325
Contact Supplier Request Quote Chat Now
Huizhou Linchuang Technology Co ., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shekou
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name GE
Place of Origin Japan
Model Number IC200ALG325


Brand: GE Model: IC200ALG325
Origin: USA

High Light: ewing machine servo motor,electric servo motor


13 Bit 10 VDC or 0 to 10 VDC Voltage, 8 Channel IC200ALG325 GE VersaMax Analog Output Module



Analog Output Modules


Analog output modules provide voltage or current signals to analog output devices . Modules require a
carrier base (IC200CHSxxx) .



 IC200ALG325 IC200ALG326 IC200ALG327 IC200ALG328 IC200ALG331
Product Name VersaMax Analog Output
Module, 13 Bit ±10 VDC or 0 to
10 VDC Voltage, 8 Channel		 VersaMax Analog Output
Module, 13 Bit Current,
8 Channel		 VersaMax Analog Output
Module, 13 Bit ±10 VDC
or 0 to 10 VDC Voltage,
12 Channel		 VersaMax Analog Output
Module, 13 Bit, 0 - 20
mA, 4-20 mA Current, 12
Channel		 VersaMax Analog Output
Module, 14 Bit Voltage/
Current 1500 VAC
Isolation, 4 Channel
Lifecycle Status Active Active Active Active Active
Output Range ±10 VDC or 0 to 10 VDC 4 to 20 mA (default)
0 to 20 mA (configured
with jumper)		 ±10 VDC or 0 to 10 VDC 4 to 20 mA (default)
0 to 20 mA (configured
with jumper)		 ±10 VDC, 4-20 mA
Number of Channels 8 8 12 12 single ended, one group 4
External Power Supply Range: 18-30 VDC
including ripple;
Current consumption:
102 mA maximum		 Range: 18-30 VDC
including ripple;
2A inrush maximum,
100 mA maximum
(no load), 185 mA
maximum (all 8
outputs at full scale)		 Range: 18-30 VDC
including ripple;
Current consumption:
112 mA maximum		 Range: 18-30 VDC
including ripple;
Current consumption:
2A inrush maximum
100 mA maximum (no load)
270 mA maximum
(all 12 outputs at full scale)		 Range: 19 .5-30 VDC
including ripple;
Current consumption:
100 mA maximum
plus load currents
Resolution 1 .25 mV = 4 counts 4-20 mA: 5 counts =
2 .5 uA (~12 .7 bits) 0-20 mA:
4 counts = 2 .5 uA (13 bits)		 1 .25 mV = 4 counts 4-20 mA: 5 counts =
2 .5 uA (~12 .7 bits) 0-20 mA:
4 counts = 2 .5 uA (13 bits)		 Current mode: 381 nA
nominal Voltage mode: 381
µV nominal
Update Rate 15 .0 ms maximum 15 .0 ms maximum 10 .0 ms maximum 15 ms maximum 7 ms maximum
Accuracy at 25¢XC ±0 .3% typical of full scale,
±0 .5% maximum of full scale		 ±0 .3% of full scale (typical),
±0 .5% of full scale (max .)
±1% of full scale (max .)		 ±0 .3% typical of full scale,
±0 .5% maximum of
full scale		 +/- 0 .3% of full scale
(typical),
+/- 0 .5% of full scale (max .)
+/-1% of full scale (max .)		 ±0 .1% maximum of
full scale
5V Backplane Current
Consumption (mA)		 50 maximum 50 maximum 50 maximum 50 maximum 10 maximum
3 .3V Backplane Current
Consumption (mA)		 N/A N/A N/A N/A 115 maximum
LED Indicators FLD PWR LED indicates
field power is present .
OK LED indicates backplane
power is present		 FLD PWR LED indicates
field power is present .
OK LED indicates backplane
power is present .		 FLD PWR LED indicates
field power is present .
OK LED indicates backplane
power is present .		 FLD PWR LED indicates
field power is present .
OK LED indicates backplane
power is present .		 FLD PWR LED indicates
the presence of both logic
power and user power .
OK LED indicates
module status
Dimensions (W x H x D) 110 mm (4 .3 in) x
66 .8 mm (2 .63 in) x 50 mm
(1 .956 in), not including the
height of the carrier or the
mating connectors		 110 mm (4 .3 in) x
66 .8 mm (2 .63 in) x 50 mm
(1 .956 in), not including the
height of the carrier or the
mating connectors		 110 mm (4 .3 in) x
66 .8 mm (2 .63 in) x 50 mm
(1 .956 in), not including the
height of the carrier or the
mating connectors		 110 mm (4 .3 in) x
66 .8 mm (2 .63 in) x 50 mm
(1 .956 in), not including the
height of the carrier or the
mating connectors		 110 mm (4 .3 in) x
66 .8 mm (2 .63 in) x 50 mm
(1 .956 in), not including the
height of the carrier or the
mating connectors



Product Tags: drives , pattern , plc
