Home > Electrical & Electronics > Variable-Frequency Drive > MBDLT25SF Panasonic Single/ Three Phase Multifunction Motor Driver

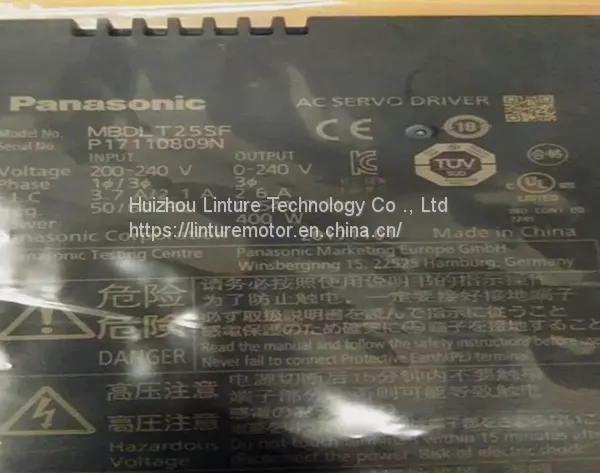

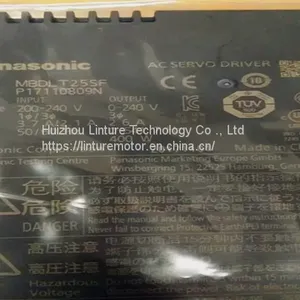

MBDLT25SF Panasonic Single/ Three Phase Multifunction Motor Driver

MBDLT25SF Panasonic Single/ Three Phase Multifunction Motor Driver thumbnail-1
MBDLT25SF Panasonic Single/ Three Phase Multifunction Motor Driver thumbnail-2
MBDLT25SF Panasonic Single/ Three Phase Multifunction Motor Driver photo-1
MBDLT25SF Panasonic Single/ Three Phase Multifunction Motor Driver photo-2
US$ 1 - 1000000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Brand Name:
Panasonic
Place of Origin:
Japan
Model Number:
MBDLT25SF
Contact Supplier Request Quote Chat Now
Huizhou Linchuang Technology Co ., Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
5 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Panasonic
Place of Origin Japan
Model Number MBDLT25SF
Motor Type AC Motor
Brand: Panasonic Modenl Number: MBDLT25SF
Country Of Origin: Japan Frequency Response: 3.2 KHz
Supply Voltage: Single/3-phase 200 V Power: 400W
Voltage Supply: 200VAC Type: Industrial Servo Drives
High Light: electric servo drive,ac servo drive


Industrial Servo Drives Panasonic MBDLT25SF 3-phase 200 V 3.2 kHz




Detailed Product Description

  • Manufacturer : Panasonic

  • Model : MBDLT25SF

  • Frame : MBD = B-frame

  • Series : L = A6 series

  • Safety function : T = Safety torque off

  • Max. current rating of amp : 2 = 12 A

  • Power supply : 5 = Single/3-phase, 200 V

  • Interface specifications : S = Analog/Pulse

  • Rotary specifications : F = Multi-function type

  • Dimensions, approx : 5.5cm x 15cm x 15cm



Quick Detail


Series MINAS A6
Part Status Active
Type Module
Motor Type Servo
Control / Drive Type Servo AC
Number of Motors 1
Voltage - Load 200V
Current - Output 12A
Wattage - Load 400W
Voltage - Supply 200VAC
Interface RS-232, RS-485, USB
Mounting Type Chassis Mount
Operating Temperature 0°C ~ 55°C
Features -
For Use With/Related Products MINAS A6 Series



Specifications


Item Specifications
Part Number MBDLT25SF
Details A6SF series
Multifunction type (Pulse
analog
full-closed)
with the safety function
Family Name MINAS A6
Series A6SF series
Type Multifunction type
Frame B-Frame
Frequency response 3.2 kHz
Control method Position control, Velocity control, Torque control, and Full-closed control
Safety Function With the safety function
Supply voltage Single/3-phase 200 V
I/F Classification of type Analog /Pulse, Modbus (RS485 /RS232)
Dimensions (W) (Unit: mm) 55
Dimensions (H) (Unit: mm) 150
Dimensions (D) (Unit: mm) 130
Mass (kg) 1.0
Environment For more details, please refer to the instruction manual.






Product Tags: controller , amplifier , moudel
