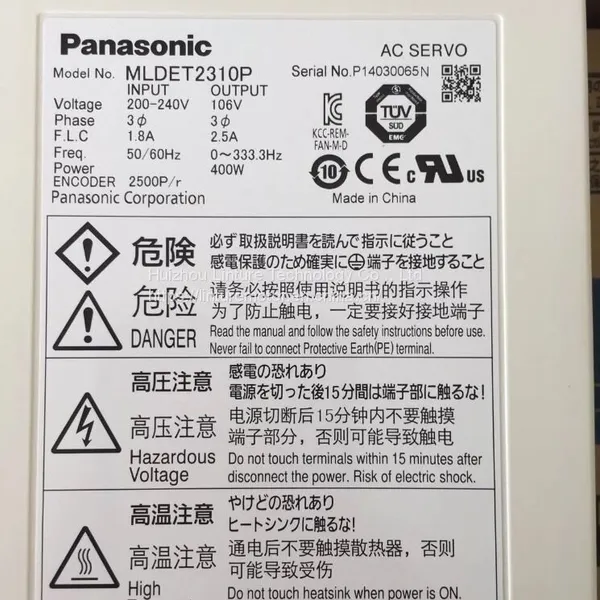

MLDET2310P AC Servo Driver 400HZ 3-Phase 200V Power Controller

Name: MLDET2310P AC Servo Driver 400HZ 3-Phase 200V Power Controller
Brand: Panasonic
SKU: 170780471

US$ 1 - 1000000 MOQ: 1 Unit

Key Specifications

Brand Name:

Panasonic

Place of Origin:

Japan

Model Number:

MLDET2310P

Huizhou Linchuang Technology Co ., Ltd

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

5 days

Brand Name Panasonic

Place of Origin Japan

Model Number MLDET2310P

Type Servo Motor

Output Power 400W

Frequency 0-333.3HZ

Efficiency IE 3

AC Voltage 208-230 / 240 V

Certification CE

Phase Three-phase

Protect Feature Totally Enclosed

Brand:	Panasonic	Model Number:	MLDET2310P
Country Of Origin:	Japan	Series:	E Series
Frame:	L-Frame	Frequency Response:	400 Hz
Power Device Max. Current Rating:	15A	Supply Voltage:	3-phase 200 V
Current Detector Current Rating:	10A	Input Power:	3-phase 200 To 240V +10% -15% 50/60 Hz
High Light:	L Frame Industrial Servo Drives,400W Industrial Servo Drives ,MLDET2310P

Panasonic MLDET2310P Industrial Servo Drives Three Phase 200V 400W

Product Attributes

Type	Description
Mfr	Panasonic Industrial Automation Sales
Series	MINAS E
Package	Box
Part Status	Active
Type	Module
Motor Type	Servo
Control / Drive Type	Servo AC
Voltage - Load	240V
Current - Output	15A
Voltage - Supply	200 ~ 240VAC
Interface	RS-232C
Mounting Type	Chassis Mount
Operating Temperature	0°C ~ 55°C
Features	-
For Use With/Related Products	MINAS E Series
Weight	0.882 lb (400.07 g)
Number of Motors	1
Wattage - Load	400W

Environmental & Export Classifications

RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8537.10.9170

Basic Specifications

Item Specifications
Input power 3-phase 200 to 240V +10% -15% 50/60 Hz
Encoder feedback 2500 P/r (10000 resolution) incremental encoder
Parallel I/O connector:
Control signal Input 7 inputs (1) Servo-ON, (2) Alarm clear and other inputs vary depending on the control mode.
Parallel I/O connector:
Control signal Output 4 outputs
(1) Servo alarm, (2) Alarm, (3) Release signal of external brake and other outputs vary depending on the control mode.
Parallel I/O connector:
Pulse signal Input 2 inputs Supports both line driver I/F and open collector I/F.
Parallel I/O connector:
Pulse signal Output 4 outputs
Feed out the encoder pulse (A, B and Z-phase) in line driver. Z-phase pulse is also feed out in open collector.
Communication function RS232
Communication function: RS232 1: 1 communication to a host with RS232 interface is enabled.
Regeneration No built-in regenerative resistor (external resistor only)
Control mode The following 3 modes are selectable with parameter
(1) High-speed position control, (2) Internal velocity control, (3) High-functionality position control
