Home > Products > drives > Q Series DC High-Speed Input Moudel QX80 For Negative Common Terminal Type

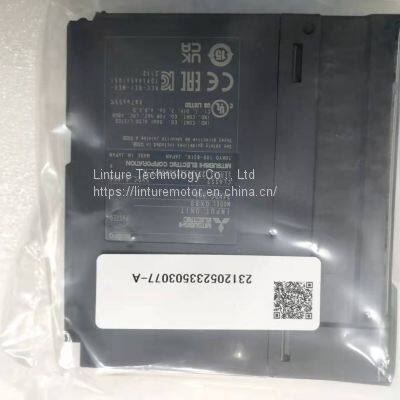

Q Series DC High-Speed Input Moudel QX80 For Negative Common Terminal Type
- 100000 Unit / Units per Month
- Shanghai
- T/T L/C Credit Card PayPal
- 5 days
Product Details
Brand Name: | Mitsubishi | Place of Origin: | Japan | Model Number: | QX80 |
Output Power: | 13V | Output Current: | 24V | Output Frequency: | 60HZ |
Output Voltage: | 13V | Input Voltage: | DC24V |
Product Description
Qx80h is Mitsubishi q series DC high-speed input module, negative common
terminal type, 16 points. Qx80h price (face price), the market stock is very
small.
Qx80h Parameter Description: 24VDC / 4mA, common cathode, 16 points, terminal
block (high speed).
Specification details of Mitsubishi PLC module qx80h:
[input form] DC input module (negative common end)
[input points] 16 points
[isolation method] Optocoupler
[rated input voltage] DC24V (+ 20% - 15%, ripple coefficient above 5%)
[rated input current] about 6mA
[derating chart]
[on voltage / on current] 13V or higher / 3mA or higher
[off voltage / off current] 8V or less / 1.6mA or less
[input impedance] about 3.9k Ω
[function setting SW2] off interrupt, on high speed input
[dielectric withstand voltage] 560vac MS / 3 cycles (altitude 2000m (6557.38
feet))
[insulation resistance] 10m Ω or higher measured by insulation resistance
tester
[immunity] through 1500vp-p noise voltage, 1 μ Voice simulator with s voice
width and 25 to 60Hz voice frequency
First instantaneous voice iec61000-4-4: 1kV
[protection grade] IP2X
[common terminal arrangement] 8 points / common terminal (common terminal: tb9,
tb18)
[I / O points] 16 (I / O allocation is set to 16 point high-speed input module
or interrupt module.)
[working status indicator] set by setting in GX developer switch
[running indicator] on indication (LED)
[external connection] 18 point terminal block (M3 * 6 screw)
[applicable wire diameter] core 0.3mm2 to 0.75mm2 (maximum outer diameter
2.8mm)
[applicable to clamping terminal] R1 25 ~ 3 (clamping terminal with sleeve
cannot be used)
[5VDC internal current consumption] 80mA (standard: all points on)
[overall dimension (h * w * d)] 98 * 27.4 * 90 [mm]
[weight] 0.16kg
