512V P6SMB Series ESD Protection Transient Voltage Suppression Tvs Diode Tvs Array Replace Littelfuse Semtech Vishay Bourns

Xiamen SET Electronics Co., Ltd.

● Low incremental surge resistance

● Excellent clamping capability

● Low profile package with built-in strain relief

● Typical IR less than 1.0 μA above 12 V

● 600 W peak pulse power capability with a 10/1000 μS Waveform, repetition rate (duty cycle): 0.01%

● For surface mounted applications to optimize board space

● Typical failure mode is short from over-specified voltage or current

● IEC 61000-4-2 ESD 30 kV (Air), 30 kV (Contact)

● EFT protection of data lines in accordance with IEC 61000-4-4

● Very fast response time

● Glass passivated chip junction

● High temperature to reflow soldering guaranteed: 260 °C/30sec

● VBR@TJ=VBR@25°Cx(1+αT x(TJ-25))  (αT: Temperature Coefficient, typical value is 0.1%)

● Plastic package is flammability rated V-0 per Underwriters Laboratories

● Meet MSL level1, per J-STD-020

● Matte tin lead–free plated

● Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn)  (IPC/JEDEC J-STD-609A.01)

● Halogen free and RoHS compliant

Surface Mount

SMD

● Communication Equipment

● Security & Protection

● Industrial Control Equipment

● Power Supply

● Automotive Electronics

● New Energy

● Lightning Protection

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Process, Online Inspection and Testing (Function 100% Test).

IPQC (AQL, Dimension, Function, Visual Inspection).

FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Reliability Test (AQL).

OQC (Packaging, Labeling, Quantity Inspection).

Quality Management System (TUV Approved and issued certificate).

SETsafe | SETfuse

SET

TVS P6SMB(SMD)_SETsafe & SETfuse.pdf

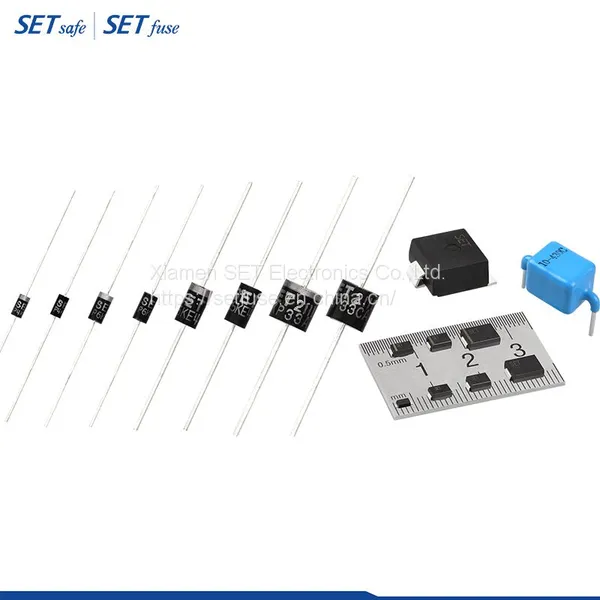

TVS Diodes are used to protect sensitive circuit from high-voltage transients.Their p-n junctions have a larger crosssectional area than those of a normal diode,allowing them to conduct large currents to ground without damage. SETsafe | SETfuse supplies TVS Diodes with peak power ratings from 200 W to 30 kW,and reverse standoff voltages from 5.0 V to 512 V.

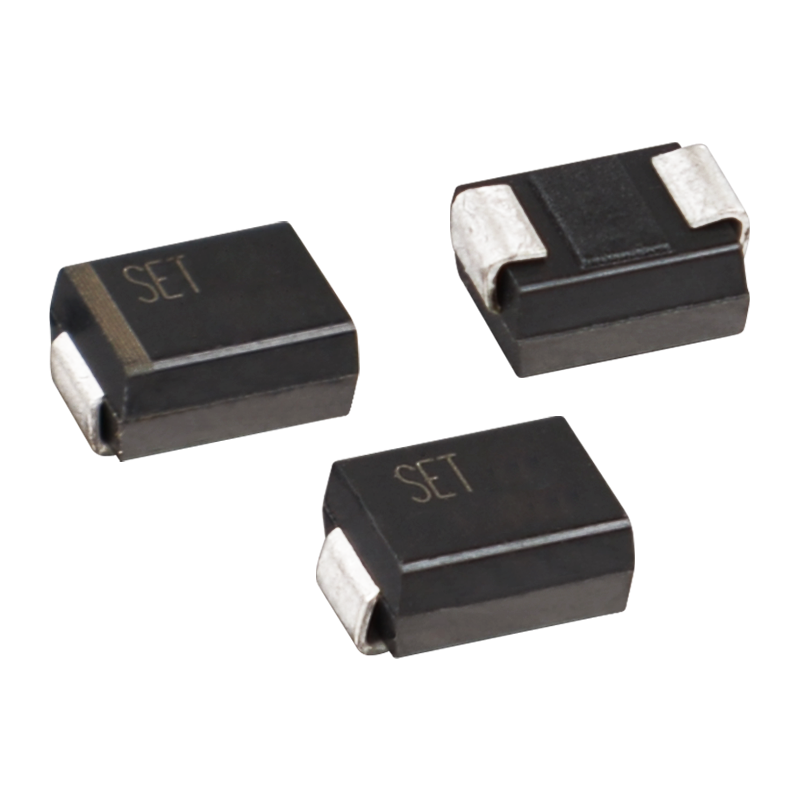

P6SMB series
