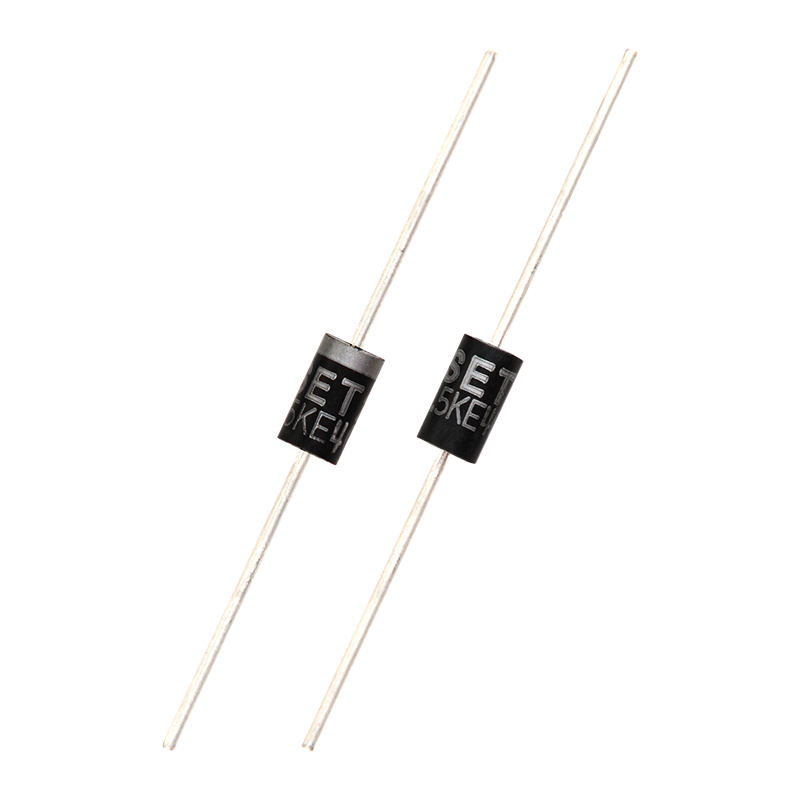

Help Center1.5ke Series Tvs Rectifier Diodes ESD Suppressors Transient Voltage Suppressor Diodes
Related Products
-
1.5 SMC Series Tvs Rectifier Diodes ESD Suppressors Transient Voltage Suppressor DiodesUS$ 0.01 - 10MOQ: 100 Pieces -
SET Spc10 SMD Series Tvs Rectifier Diodes ESD Suppressors Transient Voltage Suppressor DiodesUS$ 0.01 - 10MOQ: 100 Pieces
-
P6ke Axial Series Tvs Rectifier Diodes ESD Suppressors Transient Voltage Suppressor DiodesUS$ 0.01 - 10MOQ: 100 Pieces
-
P4ke Axial Series Tvs Rectifier Diodes ESD Suppressors Transient Voltage Suppressor DiodesUS$ 0.01 - 10MOQ: 100 Pieces
-
5kp33A Series ESD Suppressors Tvs Rectifier Diodes Transient Voltage Suppressor DiodesUS$ 0.01 - 10MOQ: 100 Pieces
Reverse Stand-Off Voltage (VR): 5.8 ~ 512V
Rated Random Recurring Peak Impulse Power Dissipation (PPPM) (10 / 1000µs): 1500 W
Manufacturer
Features
Mounting Style
Termination Style
Applications
Quality Assurance
Brand
Tradename
Datasheet
Overview
Xiamen SET Electronics Co., Ltd.
● 1500 W peak pulse capability at 10/1000 μS waveform, repetition rate (duty cycles):0.01%
● Glass passivated chip junction in DO-201 Package
● Fast response time: typically less than 1.0 PS from 0 Volts to BV min
● Excellent clamping capability
● Typical failure mode is short from over-specified voltage or current
● Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
● IEC-61000-4-2 ESD 30 kV (Air), 30 kV (Contact)
● ESD protection of data lines in accordance with IEC 61000-4-2
● EFT protection of data lines in accordance with IEC 61000-4-4
● Low incremental surge resistance
● Typical IR less than 1 μA when VBR min>12 V
● High temperature to reflow soldering guaranteed: 260 °C/30 sec / 0.375”,(9.5 mm) lead length, 5 lbs., (2.3 kg) tension
● VBR @ TJ= VBR@25 °C x (1+αT x (TJ - 25)) (αT: Temperature Coefficient, typical value is 0.1%)
● Plastic package is flammability rated V-0 per Underwriters Laboratories
● Matte tin lead–free plated
● Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD-609A.01)
● Halogen free and RoHS compliant
Through Hole
Axial
● Security & Protection
● Industrial Control Equipment
● Power Supply
● Automotive Electronics
● New Energy
● Lightning Protection
For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.
Quality Policy.
Qualified Supplier of Raw Materials.
IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Process, Online Inspection and Testing (Function 100% Test).
IPQC (AQL, Dimension, Function, Visual Inspection).
FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Reliability Test (AQL).
OQC (Packaging, Labeling, Quantity Inspection).
Quality Management System (TUV Approved and issued certificate).
SETsafe | SETfuse
SET
TVS 1.5KE(Axial)_SETsafe & SETfuse.pdf
TVS Diodes are used to protect sensitive circuit from high-voltage transients.Their p-n junctions have a larger crosssectional area than those of a normal diode,allowing them to conduct large currents to ground without damage. SETsafe | SETfuse supplies TVS Diodes with peak power ratings from 200 W to 30 kW,and reverse standoff voltages from 5.0 V to 512 V.
1.5KE series
