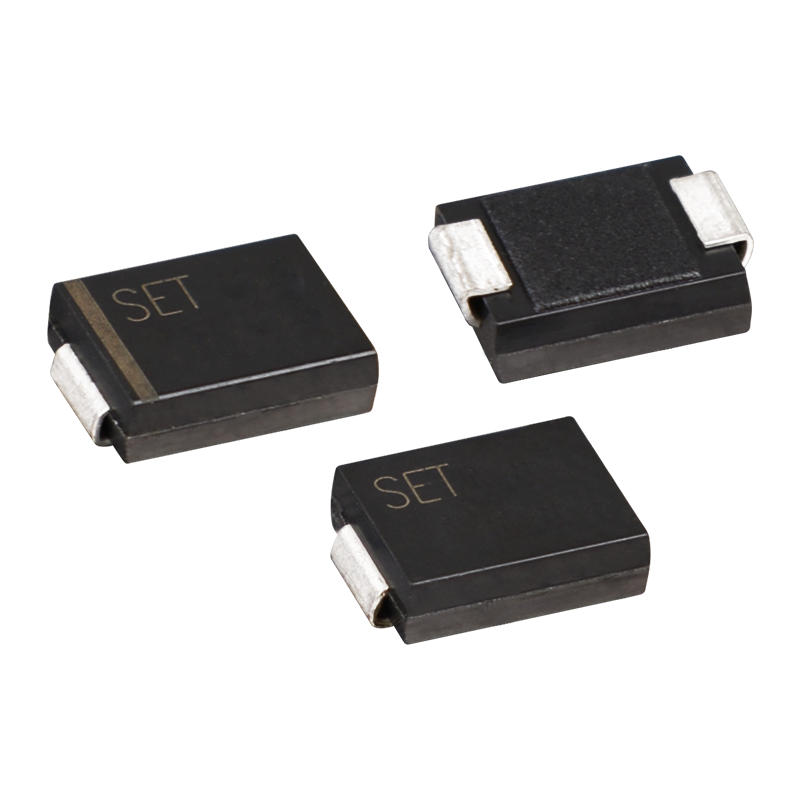

1.5 SMC Series Tvs Rectifier Diodes ESD Suppressors Transient Voltage Suppressor Diodes
- 800000 Piece / Pieces per Month
- Xiamen
- T/T
- 7 days
- Spc10 SMD Series Tvs Rectifier Diodes ESD Suppressors Transient Voltage Suppressor Diodes
- P6ke Axial Series Tvs Rectifier Diodes ESD Suppressors Transient Voltage Suppressor Diodes
- 1500V Spi Series Gas Discharge Tube Gdt Surge Protector Surge Arrester Replace Littelfuse Bourns Epcos
- 1500V Spj Series Gas Discharge Tube Gdt Surge Protector Surge Arrester Replace Littelfuse Bourns Epcos
- 1500V Spc Series Gas Discharge Tube Gdt Surge Protector Surge Arrester Replace Littelfuse Bourns Epcos
- 2000V Spb Series Gas Discharge Tube Gdt Surge Protector Surge Arrester Replace Littelfuse Bourns Epcos
Product Details
Brand Name: | SETsafe | SETfuse | Place of Origin: | China |
Product Description
Reverse Stand-Off Voltage (VR): 5.8 ~ 512 V
Rated Random Recurring Peak Impulse Power Dissipation (PPPM) (10 / 1000µs): 1500 W
Xiamen SET Electronics Co., Ltd.
● Low incremental surge resistance
● Excellent clamping capability
● Low profile package with built-in strain relief
● Typical IR less than 1.0 μA above 12 V
● 1500 W peak pulse power capability with a 10/1000 μS Waveform, repetition rate (duty cycle): 0.01%
● For surface mounted applications to optimize board space
● Typical failure mode is short from over-specified voltage or current
● IEC 61000-4-2 ESD 30 kV (Air), 30 kV (Contact)
● EFT protection of data lines in accordance with IEC 61000-4-4
● Very fast response time
● Glass passivated chip junction
● High temperature to reflow soldering guaranteed: 260 °C/30sec
● VBR@TJ=VBR@25°Cx(1+αT x(TJ-25)) (αT: Temperature Coefficient, typical value is 0.1%)
● Plastic package is flammability rated V-0 per Underwriters Laboratories
● Meet MSL level1, per J-STD-020
● Matte tin lead–free plated
● Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD-609A.01)
● Halogen free and RoHS compliant
Surface Mount
SMD
● Security & Protection
● Industrial Control Equipment
● Power Supply
● Automotive Electronics
● New Energy
● Lightning Protection
For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.
Quality Policy.
Qualified Supplier of Raw Materials.
IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Process, Online Inspection and Testing (Function 100% Test).
IPQC (AQL, Dimension, Function, Visual Inspection).
FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Reliability Test (AQL).
OQC (Packaging, Labeling, Quantity Inspection).
Quality Management System (TUV Approved and issued certificate).
SETsafe | SETfuse
SET
TVS 1.5SMC(SMD)_SETsafe & SETfuse.pdf
TVS Diodes are used to protect sensitive circuit from high-voltage transients.Their p-n junctions have a larger crosssectional area than those of a normal diode,allowing them to conduct large currents to ground without damage. SETsafe | SETfuse supplies TVS Diodes with peak power ratings from 200 W to 30 kW,and reverse standoff voltages from 5.0 V to 512 V.
1.5SMC series
