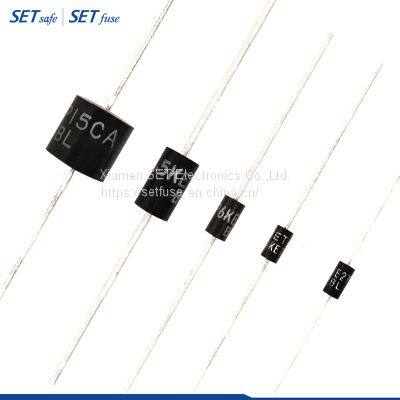

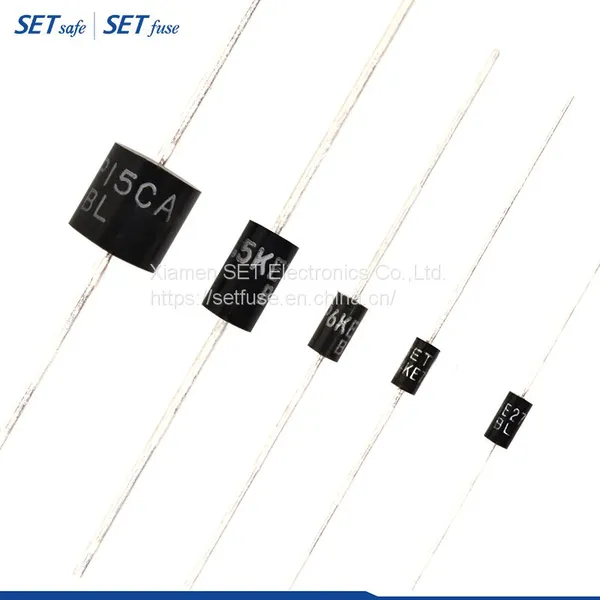

5kp33A Series ESD Suppressors Tvs Rectifier Diodes Transient Voltage Suppressor Diodes

Xiamen SET Electronics Co., Ltd.

● 5 kW peak pulse capability at 10/1000 μS waveform, repetition rate (duty cycles):0.01%

● Glass passivated chip junction in P600 Package

● Fast response time: typically less than 1.0 PS from 0 Volts to BV min

● Excellent clamping capability

● Typical failure mode is short from over-specified voltage or current

● Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c

● IEC 61000-4-2 ESD 30 kV (Air), 30 kV (Contact)

● EFT protection of data lines in accordance with IEC 61000-4-4

● Low incremental surge resistance

● Typical IR ≤ 2 µA for VBR min > 12 V

● High temperature to reflow soldering guaranteed: 260 °C/40 sec / 0.375”, (9.5mm) lead length, 5 lbs., (2.3 kg) tension

● VBR @ TJ= VBR@25 °C x (1+αT x (TJ - 25)) (αT:Temperature Coefficient, typical value is 0.1%)

● UL Recognized compound meeting flammability rating V-0

● Matte tin lead–free plated

● Halogen free and RoHS compliant

● Pb-free E3 indicates that 2nd level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD-609A.01

Through Hole

Axial

● Communication Equipment

● Security & Protection

● Industrial Control Equipment

● Power Supply

● Automotive Electronics

● New Energy

● Lightning Protection

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Process, Online Inspection and Testing (Function 100% Test).

IPQC (AQL, Dimension, Function, Visual Inspection).

FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Reliability Test (AQL).

OQC (Packaging, Labeling, Quantity Inspection).

Quality Management System (TUV Approved and issued certificate).

SETsafe | SETfuse

SET

TVS Diodes are used to protect sensitive circuit from high-voltage transients.Their p-n junctions have a larger crosssectional area than those of a normal diode,allowing them to conduct large currents to ground without damage. SETsafe | SETfuse supplies TVS Diodes with peak power ratings from 200 W to 30 kW,and reverse standoff voltages from 5.0 V to 512 V.
