Spc10 SMD Series Tvs Rectifier Diodes ESD Suppressors Transient Voltage Suppressor Diodes

Xiamen SET Electronics Co., Ltd.

● Bi-directional

● Low clamping and slope resistance

● For automatic pick and place assembly and reflow process to reduce the manufacturing cost and increase the soldering quality compared to axial leads package

● Compact surface mount package design

● Meet MSL level 1, per J-STD-020, LF Maximum peak of 245 °C

● ESD follow IEC 61000-4-2

● Tube or tape and reel pack options available

● Pb-free E3 means 2nd level interconnect is Pb-free and the terminal finish material is tin (Sn)

● Halogen free and RoHS compliant

Surface Mount

SMD

● Communication Equipment

● Security & Protection

● Industrial Control Equipment

● Power Supply

● Automotive Electronics

● New Energy

● Lightning Protection

For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.

Quality Policy.

Qualified Supplier of Raw Materials.

IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Process, Online Inspection and Testing (Function 100% Test).

IPQC (AQL, Dimension, Function, Visual Inspection).

FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).

Reliability Test (AQL).

OQC (Packaging, Labeling, Quantity Inspection).

Quality Management System (TUV Approved and issued certificate).

SETsafe | SETfuse

SET

TVS SPC10(SMD)_SETsafe & SETfuse.pdf

TVS Diodes are used to protect sensitive circuit from high-voltage transients.Their p-n junctions have a larger crosssectional area than those of a normal diode,allowing them to conduct large currents to ground without damage. SETsafe | SETfuse supplies TVS Diodes with peak power ratings from 200 W to 30 kW,and reverse standoff voltages from 5.0 V to 512 V.

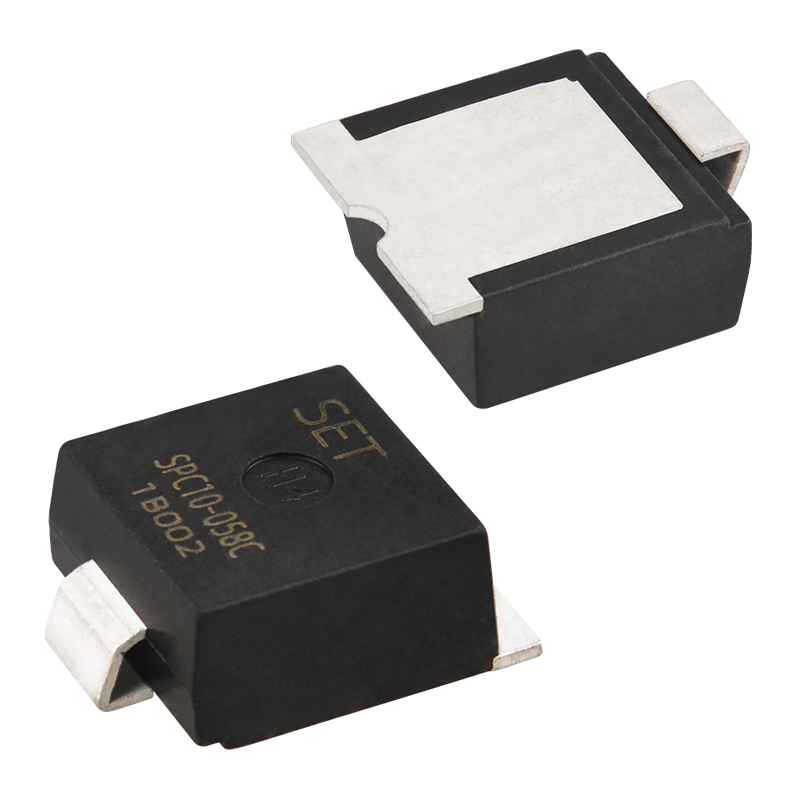

SPC10 series
