Reverse Stand-Off Voltage (VR): 5 ~ 250 V
Rated Random Recurring Peak Impulse Power Dissipation (PPPM) (10 / 1000µs): 600 W
Xiamen SET Electronics Co., Ltd.
● Same power as standard SMB devices (600 W)

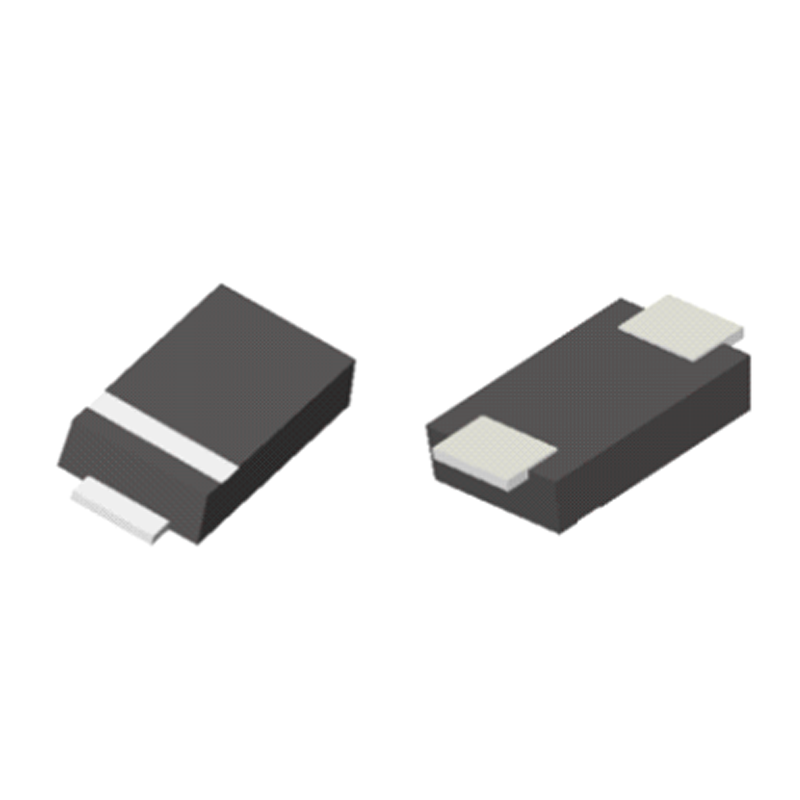

● SMA low profile package: less than 1.1 mm
● Footprint compatibility with standard SMA and SMB products (easy to layout)
● Typical failure mode is a short circuit condition for current events exceeding component rating
● Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
● IEC 61000-4-2 ESD 30 kV (Air), 30 kV (Contact)
● EFT protection of data lines in accordance with IEC 61000-4-4
● Low inductance, excellent clamping capability
● Fast response time: typically less than 1.0 ns from 0 Volts to VBR min
● Built-in strain relief
● Glass passivated junction
● Typical IR
● High temperature reflow soldering guaranteed: 260 °C / 40 sec
● VBR @ TJ= VBR@25 °C x (1+αT x (TJ - 25)) (αT:Temperature Coefficient, typical value is 0.1%)
● UL Recognized compound meeting flammability rating V-0
● Meet MSL level1, per J-STD-020
● Matte tin lead–free plated
● Pb-free E3 means 2ND level interconnect is Pb-free and the terminal finish material is tin(Sn) (IPC/JEDEC J-STD-609A.01)
● Halogen free and RoHS compliant
Surface mount
SMD
● Communication Equipment
● Security & Protection
● Industrial Control Equipment
● Power Supply
● Automotive Electronics
● New Energy
● Lightning Protection
For product quality, our goal is to be industry-leading. We ensure that the quality of the product meets the expected goals from the following process.
Quality Policy.
Qualified Supplier of Raw Materials.
IQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Process, Online Inspection and Testing (Function 100% Test).
IPQC (AQL, Dimension, Function, Visual Inspection).
FQC (AQL, Dimension, Function, Visual Inspection, RoHS & REACH Test).
Reliability Test (AQL).
OQC (Packaging, Labeling, Quantity Inspection).
Quality Management System (TUV Approved and issued certificate).
SETsafe | SETfuse
SET
TVS SMA6L(SMD)_SETsafe & SETfuse.pdf
TVS Diodes are used to protect sensitive circuit from high-voltage transients.Their p-n junctions have a larger crosssectional area than those of a normal diode,allowing them to conduct large currents to ground without damage. SETsafe | SETfuse supplies TVS Diodes with peak power ratings from 200 W to 30 kW,and reverse standoff voltages from 5.0 V to 512 V.
