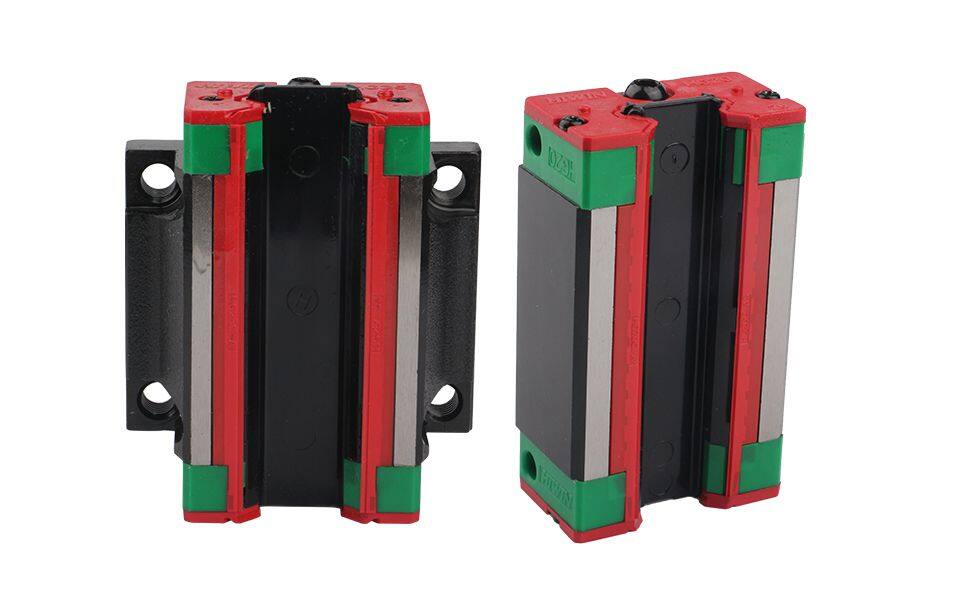

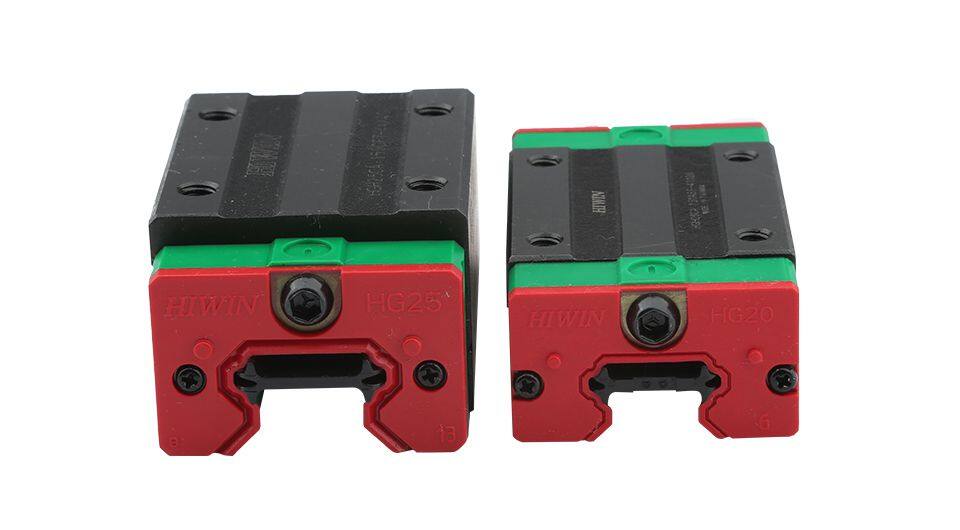

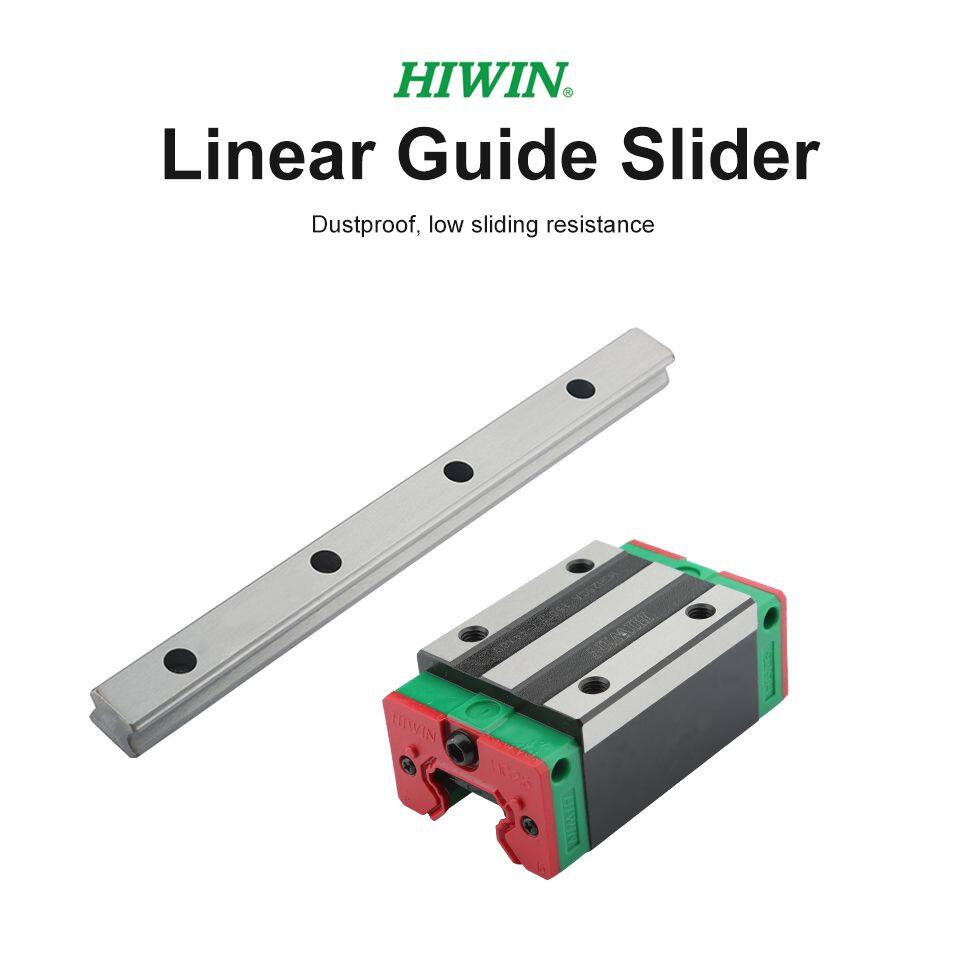

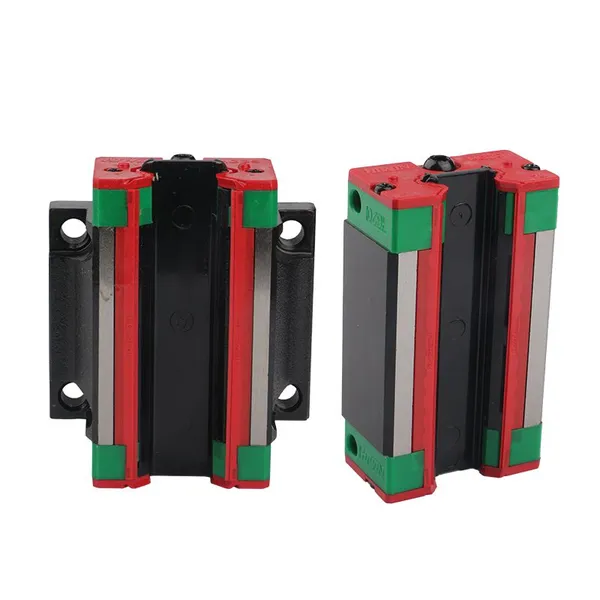

Help CenterHiwin Linear Guide Slider Hgh15 20 25 30ca/Cc Slider Square Guide Rail Slide Linear Slide Table 3d Printing Cnc Diy Parts
Related Products
-
CNC Spindle Motor 5.5kw ER25 Water Cooling Spindle 220V 380V 100mm Diameter For CNC Router Woodworking Engraving MachineUS$ 310MOQ: 1 Carton -
800w Water-Cooled Spindle Motor ER11 Woodworking Spindle 220V Φ65x195mm Used For CNC Router DIY Woodworking CarvingUS$ 65MOQ: 1 Carton
-
HQD 1.2KW ER11 62MM Water-cooled Spindle Motor 670Hz 40000rpm Woodworking Advertising Engraving Machine for CNC Router MillingUS$ 240MOQ: 1 Carton
-
800w Water Cooling Spindle Motor 220V 380V Woodworking Engraving Spindle ER11 Collet Φ62x160mm For CNC Milling Router MachineUS$ 81MOQ: 1 Carton
-
Fuling 1.5KW Inverter 220v 380v Engraving Machine General High Speed Spindle MotorUS$ 140MOQ: 1 Piece

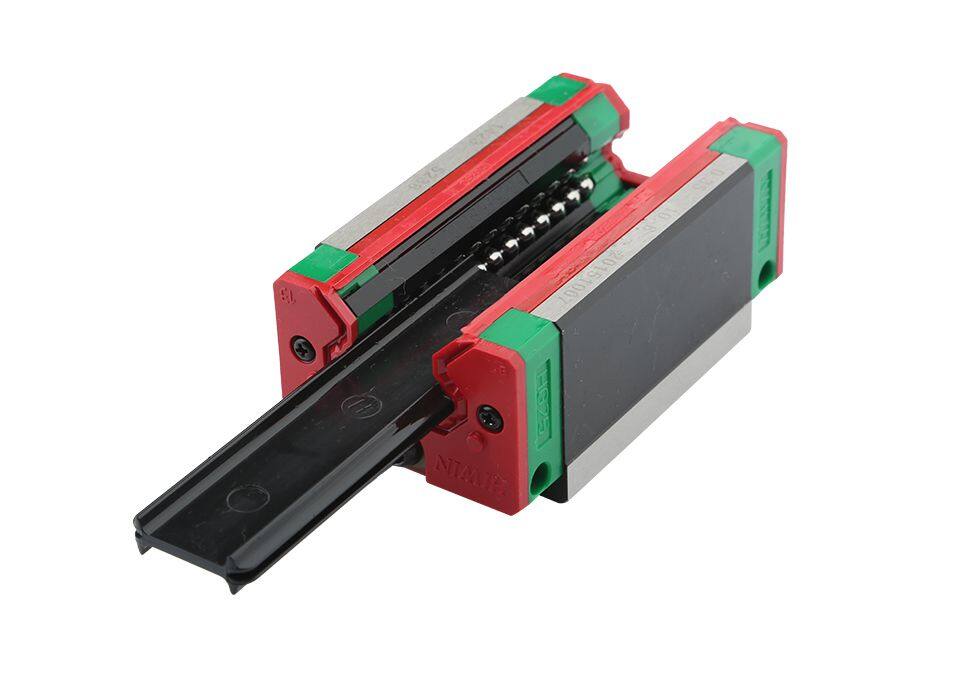

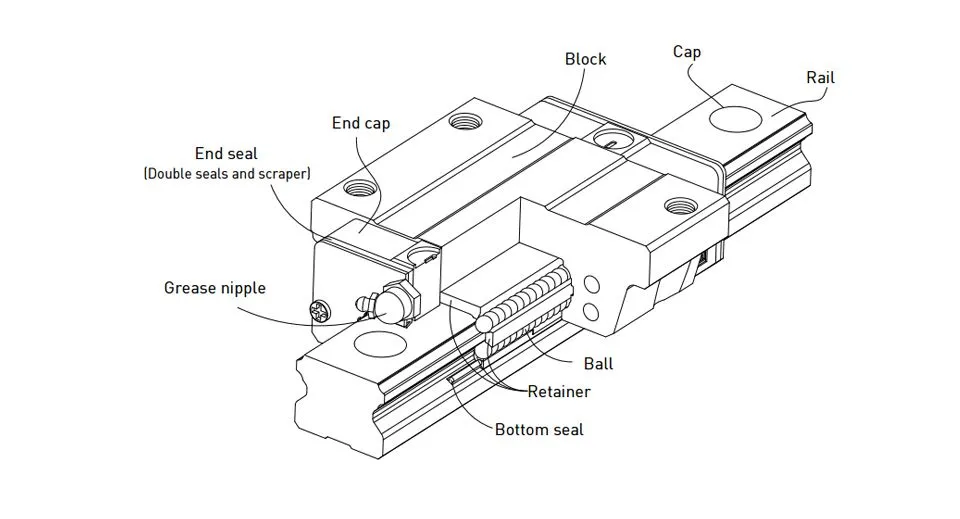

Construction of EG Serivs
Rolling circulation system: Block, rail, end cap and retainer
Lubrication system: Grease nipple and piping Joint
Dust protection system: End seal, bottom seal, cap and scraper
1.Self-aligning ability
2.Interchangeable
3.High rigidity in all directions
Rolling circulation system: sliding block, guide rail, end cover, steel ball, steel ball retainer lubricationSystem: oil nozzle, oil pipe joint
Dust-proof system: oil scraper, dust-proof dust shield on bottom, guide rail bolt cover, metal scraper

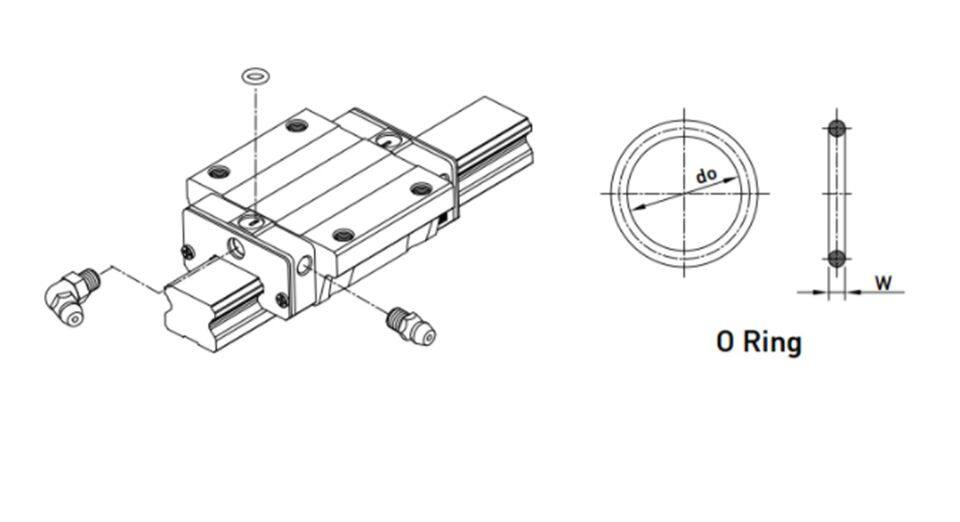

Mounting location
The standard location of the arease fitting is at both ends of the block, the nipple may be mounted in the side or top of the block. For lateral installation, we recommend that the nipple be mounted to the non-reference side, otherwise please contact us. When lubricating from above, in the recess for the O-ring, a smaller, preformed recess can be found. Preheat the 0.8 mm diameter metal tip. Carefully open the small recess with the metal tip and pierce through it. Insert a round sealing ring into the recess. IThe round sealing ring is not supplied with the block) Do not open the small recess with a drill bit this may introduce the danger of contamination. It is possible to carry out the lubrication by using the oil-piping joint.
Self-alignment capability with high positioning accuracy.
When the linear guide is used for linear guidance, for the valve seat, since the friction method of the linear guide is to solve the friction, slippage does not occur, and the positioning accuracy is close to microns.
Is achievable.
Interchangeable
The size of the linear guide can be kept within a certain level, the slider bracket can prevent the steel ball from falling off, and the user can replace the slider or the guide, or even replace the slider.
Linear guide group, this machine can regain high precision guidance.
All-round high rigidity
Due to the special structure design of the linear guide, it can bear the load in the up and down and left and right directions at the same time, and it can also use preload to increase the rigidity.

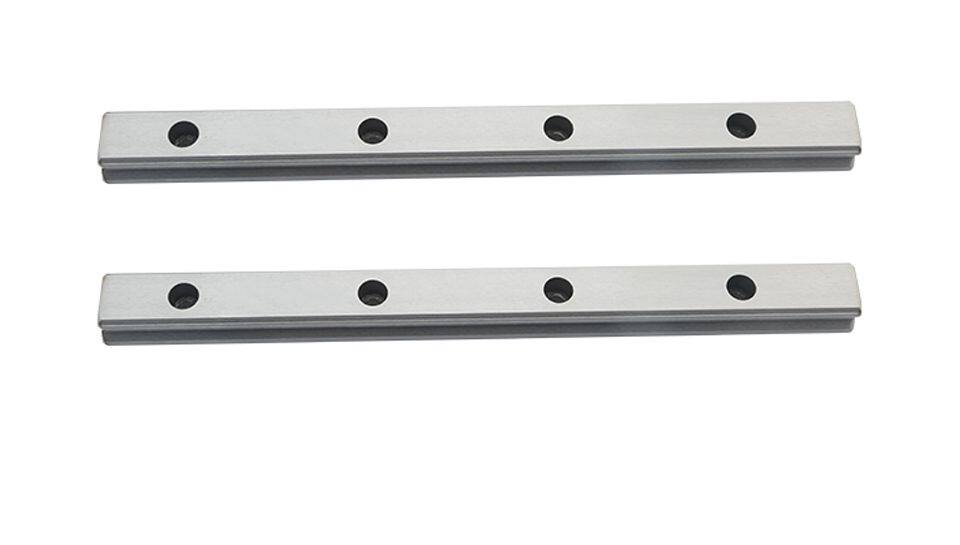

Support any length of rail cutting
Any custom rail length, price
Is good, quality is good
