Runout accuracy: /ER25/ER32/ER40
Home > Manufacturing & Processing Machinery > Machine Tools > Machine Tools Accessories > Precision 0.003 BT CNC Tool Holders ER11 ER16 ER20 ER25 ER32 ER40 Chucks for Turning Tool on Lathe Spindle Processing BT Standard

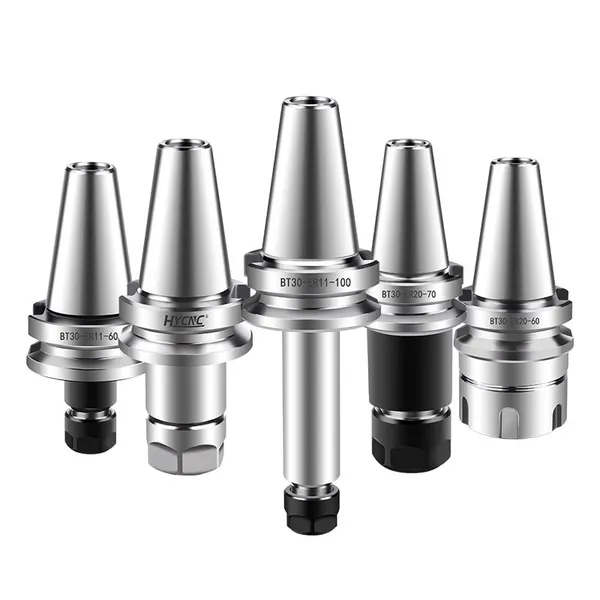

Precision 0.003 BT CNC Tool Holders ER11 ER16 ER20 ER25 ER32 ER40 Chucks for Turning Tool on Lathe Spindle Processing BT Standard
US$ 11 - 16
MOQ: 1 Piece
Key Specifications
Get Latest Price
Material:
Stainless Steel
Type:
Other
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
CNC Air-Cooled Spindle 800w 220V 380V Woodworking Spindle Motor Φ65x188 400Hz 24000RPM For CNC Router Milling Engraving MachineUS$ 61.3MOQ: 1 Carton -
CNC Spindle 1.5Kw 220V 380V Air-Cooled Spindle Motor Φ80x195 ER11 Chuck 4 Bearing For CNC Router Woodworking Engraving MachineUS$ 205.6 - 294MOQ: 1 Box
-
CNC Spindle Motor 5.5kw ER25 Water Cooling Spindle 220V 380V 100mm Diameter For CNC Router Woodworking Engraving MachineUS$ 310MOQ: 1 Carton
-
800w Water-Cooled Spindle Motor ER11 Woodworking Spindle 220V Φ65x195mm Used For CNC Router DIY Woodworking CarvingUS$ 65MOQ: 1 Carton
-
CNC Pulse Generator Trailer Handwheel 15-Pin Connector For CNC Router Machine Tool FAGOR GSK Siemens Mitsubishi FANUC SystemUS$ 45.8MOQ: 1 Piece
Material
Stainless Steel
Type
Other
Certification
CE
Customized
Non-Customized
Logo Printing
with Logo Printing
Size
Other, BT30
Specification
BT30
Trademark
HYCNC
Origin
China
product manual

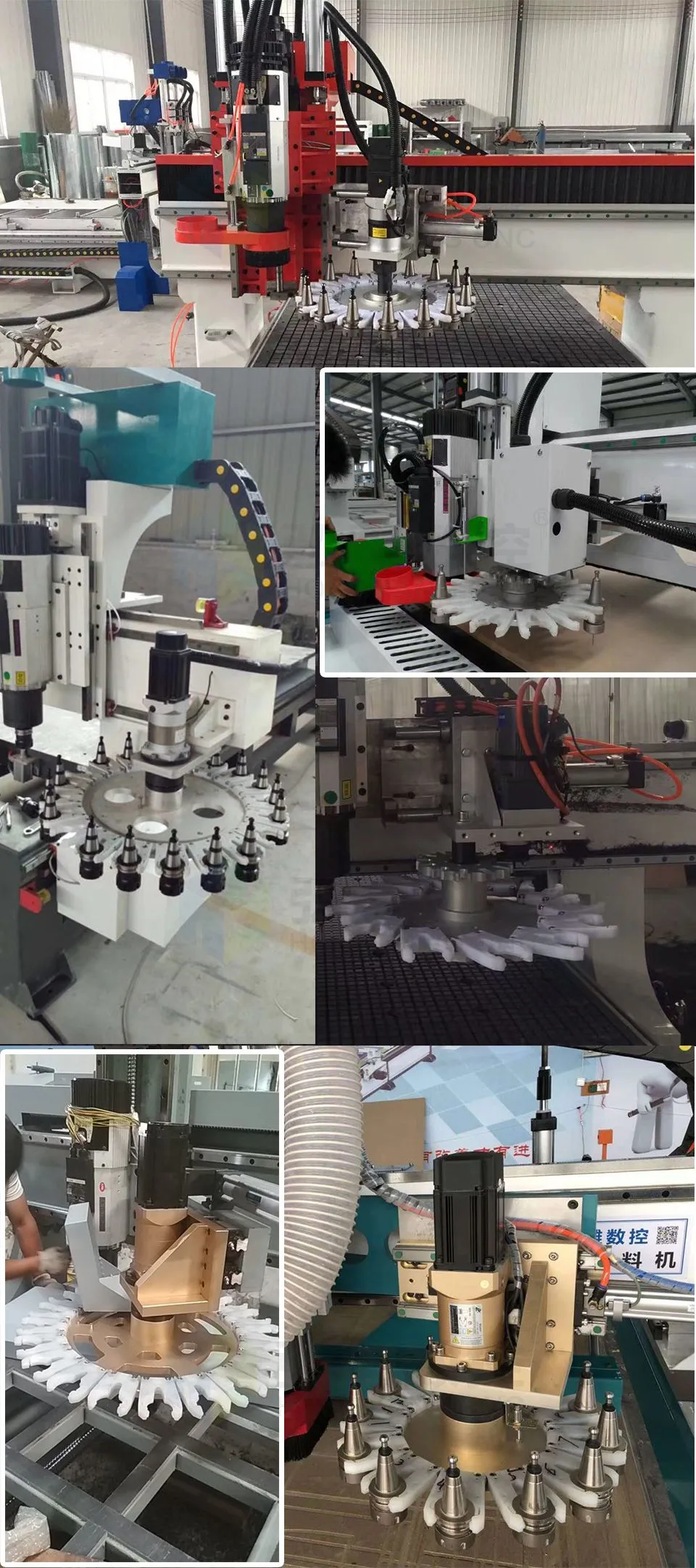

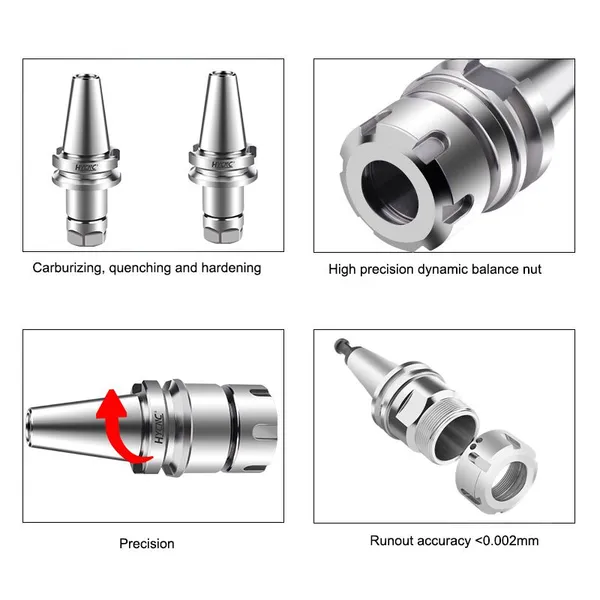

Tool name: BT30 tool holder Body accuracy: HRC56° Applicable equipment: cutting machine, processing center Carving machine, engraving machine

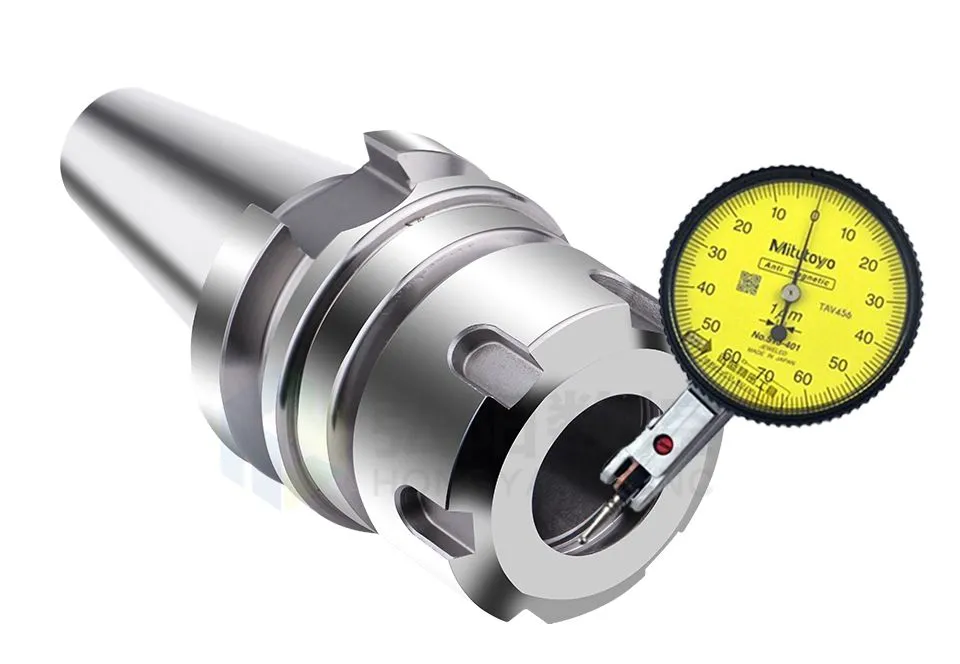

Body beating accuracy
Efforts to create a high degree of concentricity, so that the handle can withstand impact load, stable performance and speed jump
Dynamic accuracy
20CrMnTi alloy steel
Selected use of 20CrMnTi alloy steel, advanced vacuum quenching furnace, can realize carbonitriding to increase the hardness of the tool holder, inside and outside are formed at one time
Rigorous full inspection tool holder

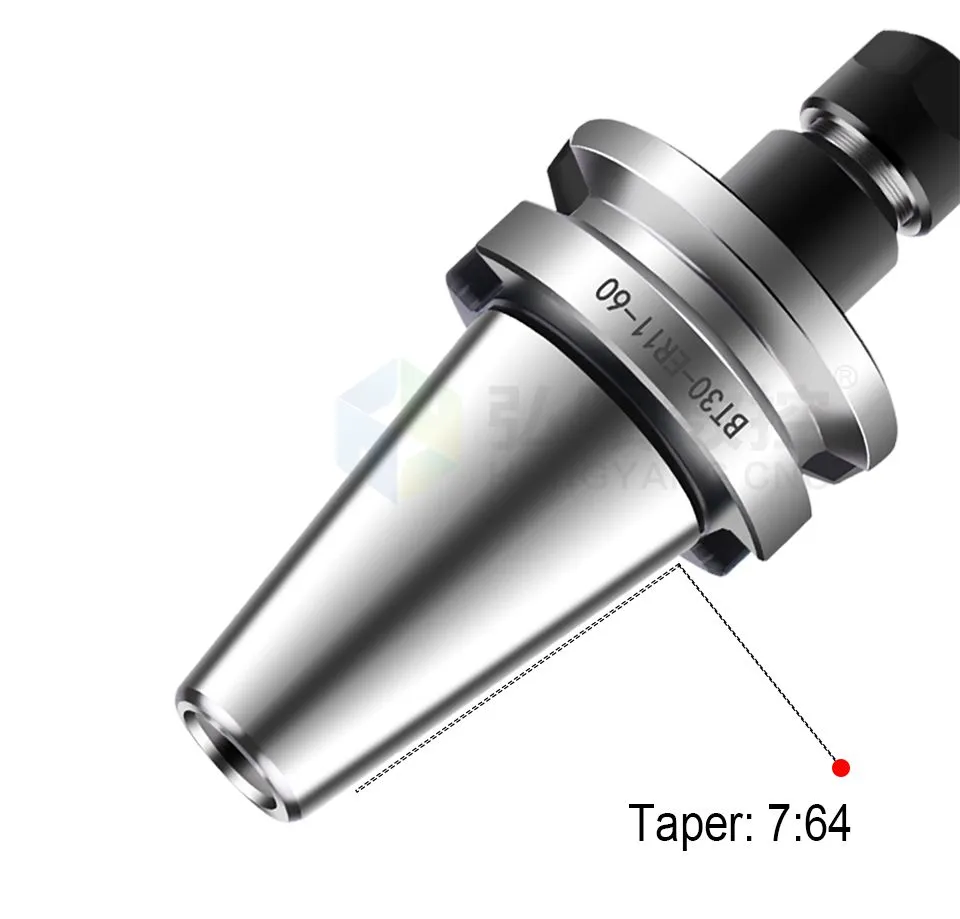

Ensure that the taper requirements of each product meet the accuracy of the outer taper jitter

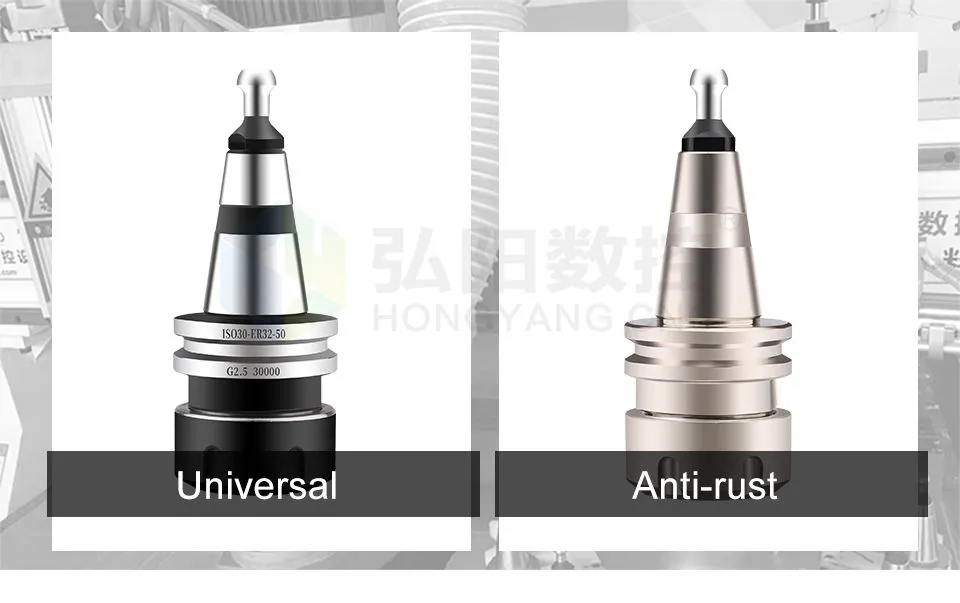

Electroplating anti-rust coating process
The body coating is added with electroplating and rust-proof coating technology, which is waterproof and oil-proof and rust-proof, keeping the taper constant and improving accuracy.

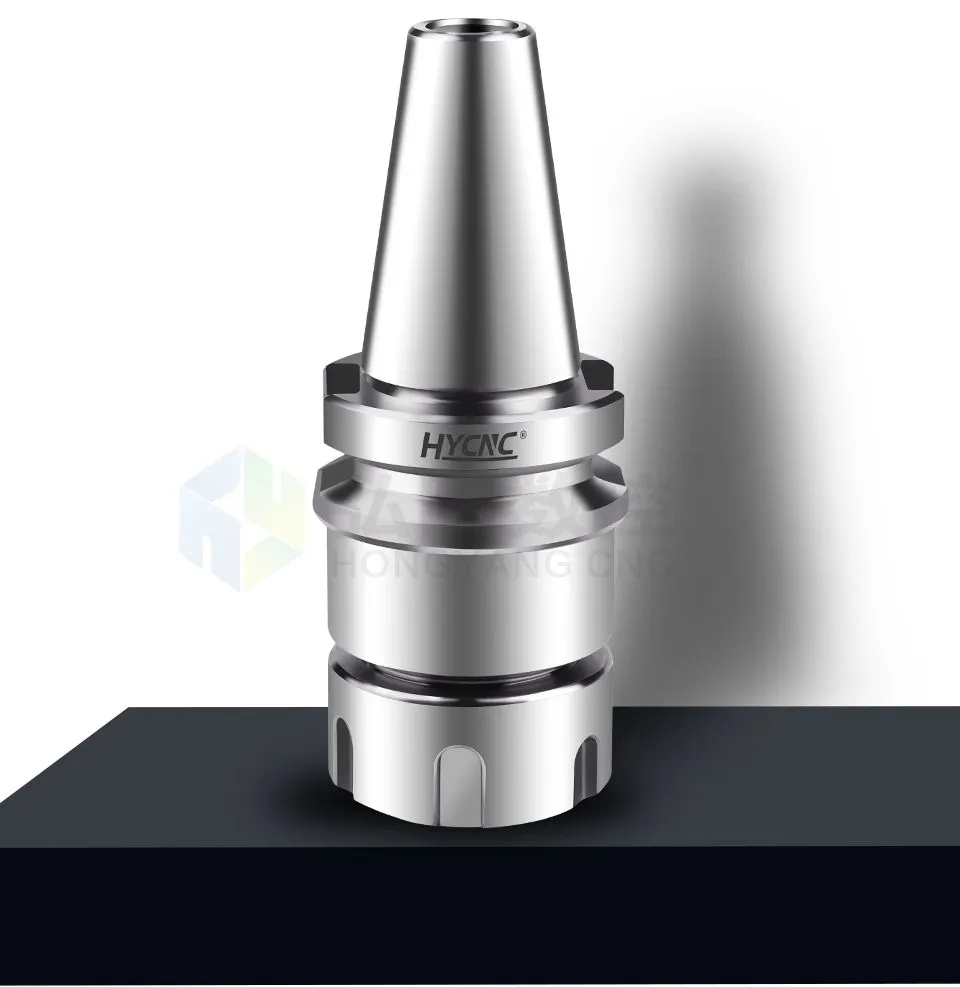

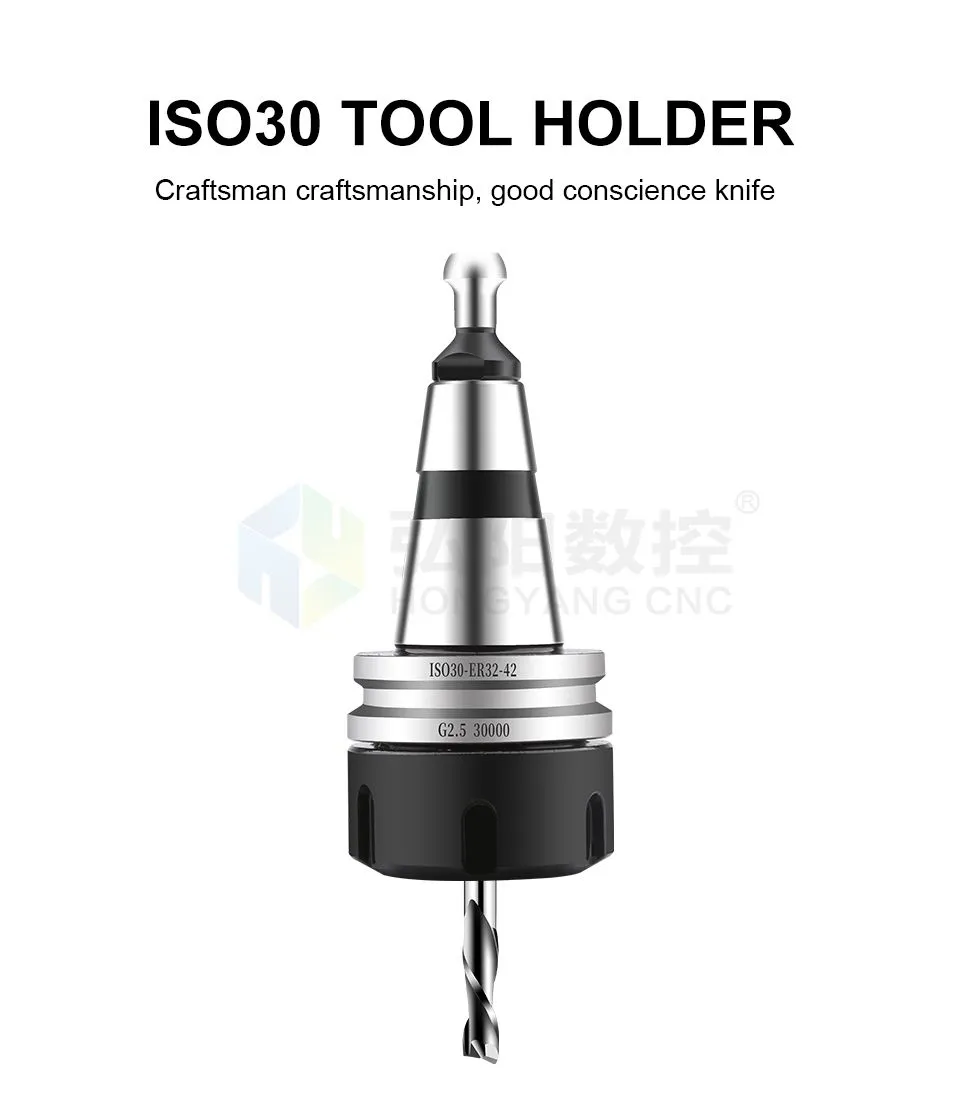

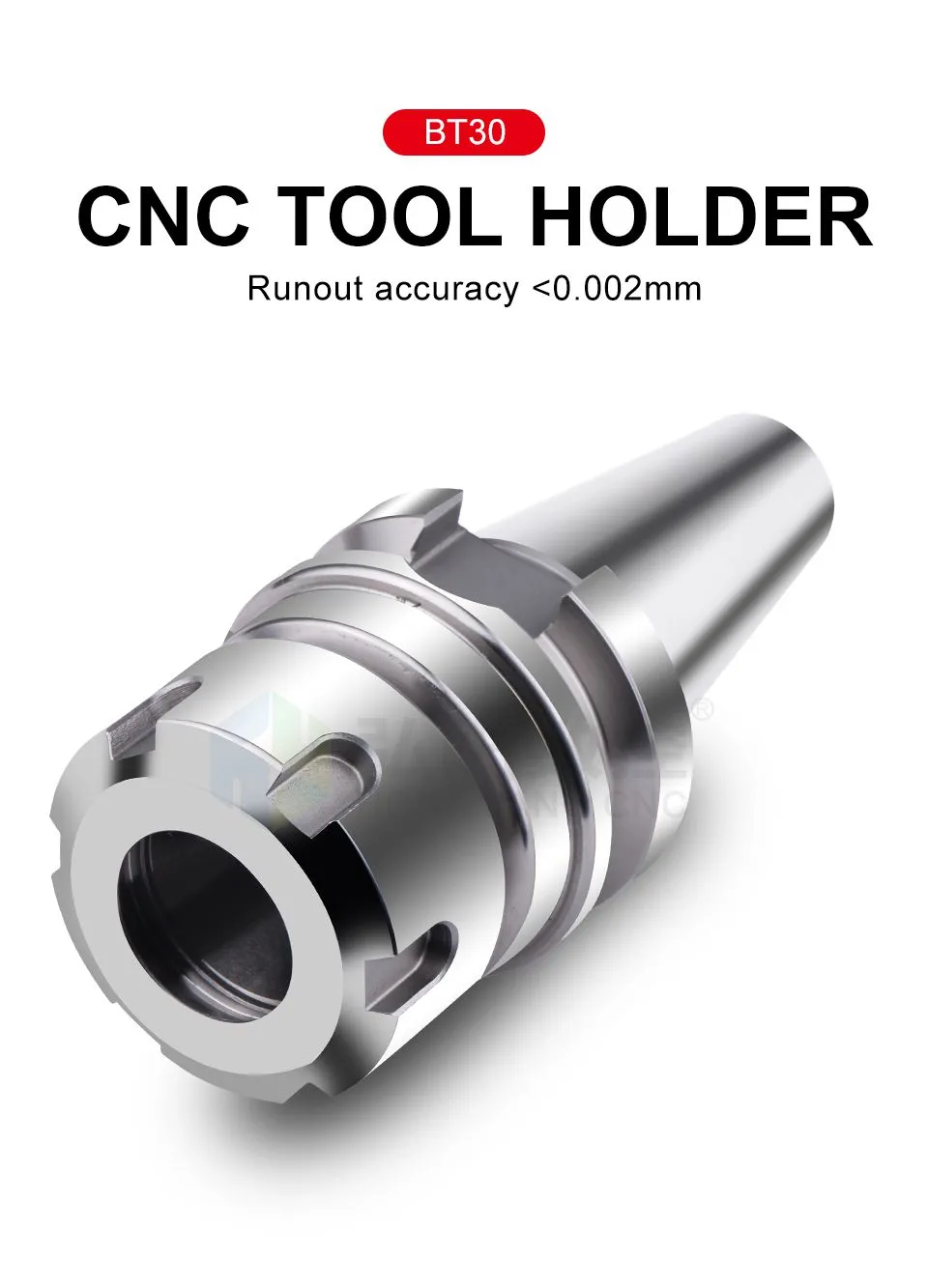

Name: CNC Tool Holder
Overall clamping jump: ≤0.008

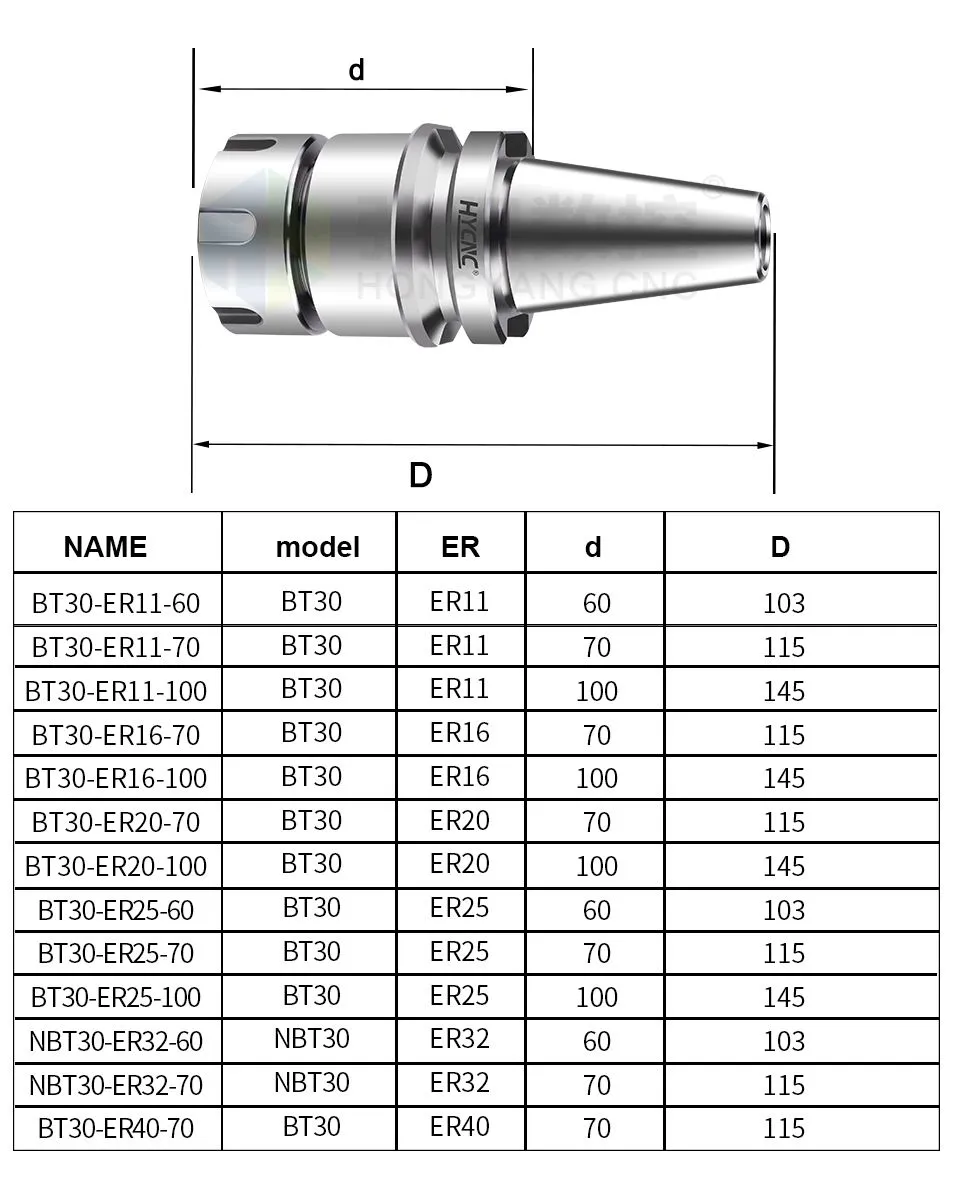

Specifications: Various
Roundness:
Body accuracy
Carburizing depth: >0. 8mm
Material: Steel 20CrMnTi
Surface roughness: >0. 8mm
Hardness: >HRC55°
Speed: up to 30000 rpm
Principle of tool handle dynamic balance:
The principle of dynamic balance of rotating tools is similar to that of general rotating parts. The measured unbalanced weight and position can be balanced by removing the eccentric weight or adjusting the counterweight. After the dynamic balance is set, the tool processing is stable, the accuracy is more stable, the vibration is small, and the speed is high. High-speed machining of the tool can be implemented, and the speed can reach 10,000 rpm-50,000 rpm.
Product features: steel 20CrMnTi, high hardness, full product inspection, full bright appearance. Exquisite craftsmanship, Taiwanese quality,--second clamping, one-time forming inside and outside, high concentricity.
