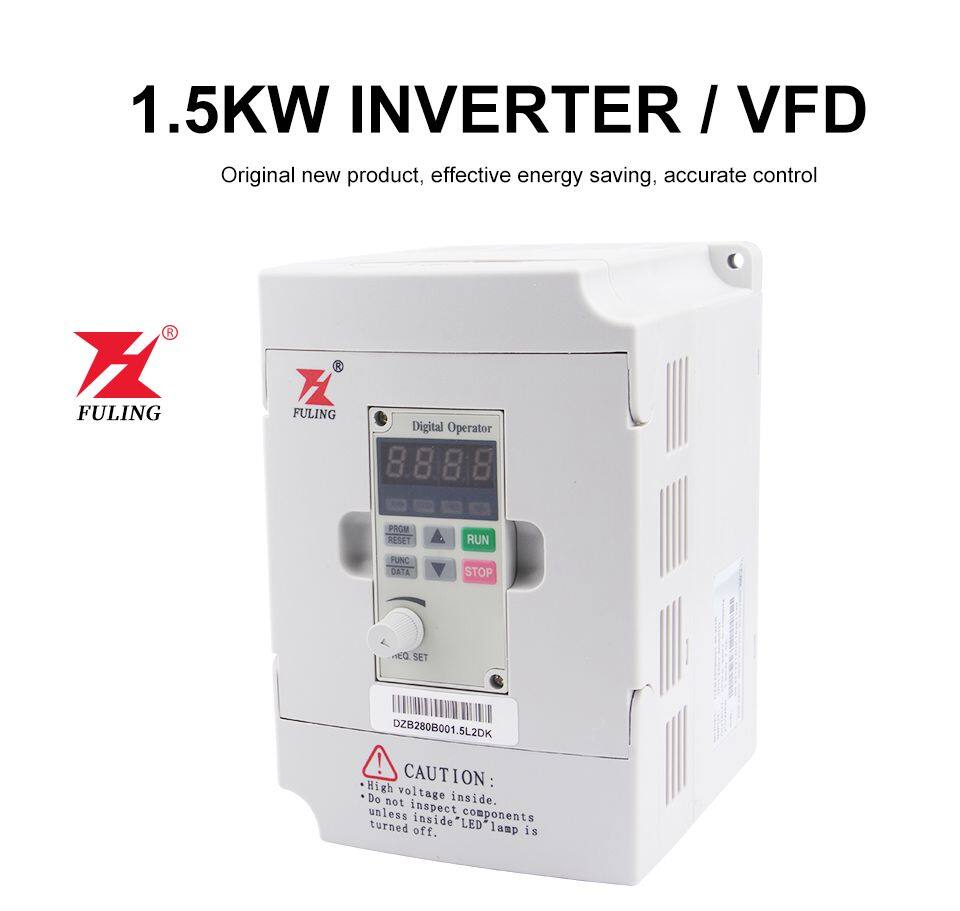

Fuling 1.5KW Inverter 220v 380v Engraving Machine General High Speed Spindle Motor
US$ 140
≥1 Piece
Key Specifications
Get Latest Price
Type:
DC/AC Inverters
Certification:
CE
Output Power:
Other, 1.5kw
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days
Related Products
-
CNC Dust Collecting Cover Dust Cutting Woodworking Engraving Machine Dust Cover Two Or Three Or Four Processes Dust AccessoriesUS$ 41 - 92MOQ: 1 Combo -
Precision 0.003 BT CNC Tool Holders ER11 ER16 ER20 ER25 ER32 ER40 Chucks for Turning Tool on Lathe Spindle Processing BT StandardUS$ 11 - 16MOQ: 1 Piece
-
CNC Air-Cooled Spindle 800w 220V 380V Woodworking Spindle Motor Φ65x188 400Hz 24000RPM For CNC Router Milling Engraving MachineUS$ 61.3MOQ: 1 Carton
-
CNC Spindle 1.5Kw 220V 380V Air-Cooled Spindle Motor Φ80x195 ER11 Chuck 4 Bearing For CNC Router Woodworking Engraving MachineUS$ 205.6 - 294MOQ: 1 Box
-
CNC Spindle Motor 5.5kw ER25 Water Cooling Spindle 220V 380V 100mm Diameter For CNC Router Woodworking Engraving MachineUS$ 310MOQ: 1 Carton
Type
DC/AC Inverters
Certification
CE
Output Power
Other, 1.5kw
Output Type
Single
Grid Type
Other
Circuit Topologies
Other
Nature of Wave String
Other
Specification
1.5KW Inverter
Trademark
Fuling
Origin
1.5KW Inverter

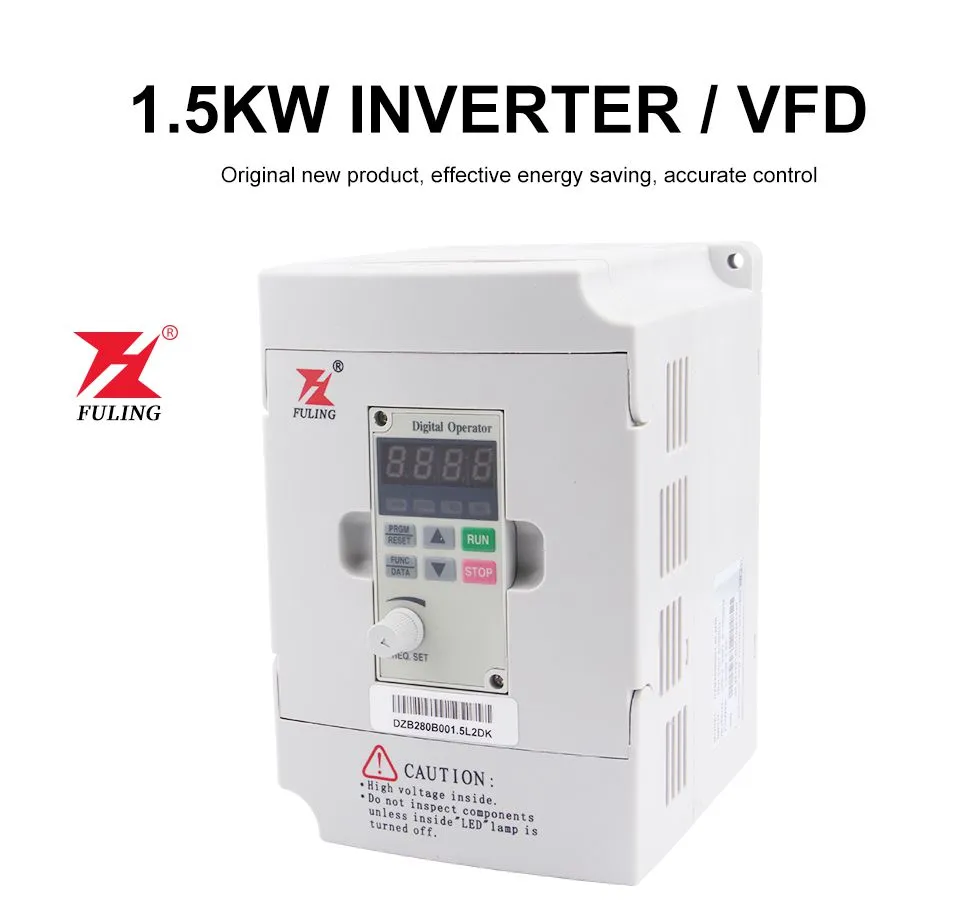

1 & Fuling 220v 1.5kw Variable Frequency Drive VFD/Inverter 0-1000H output

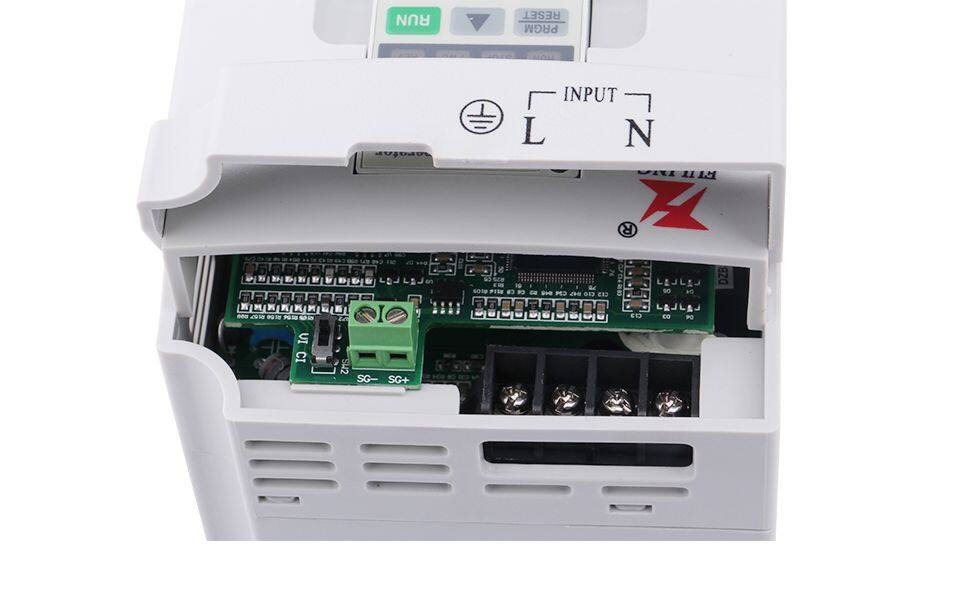

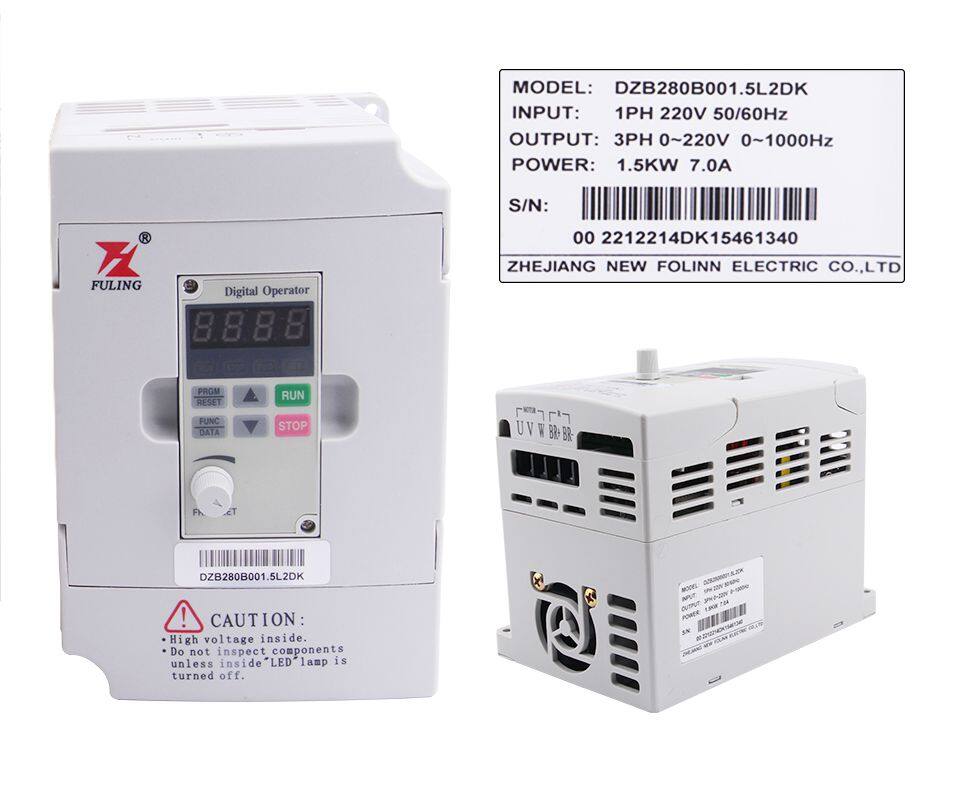

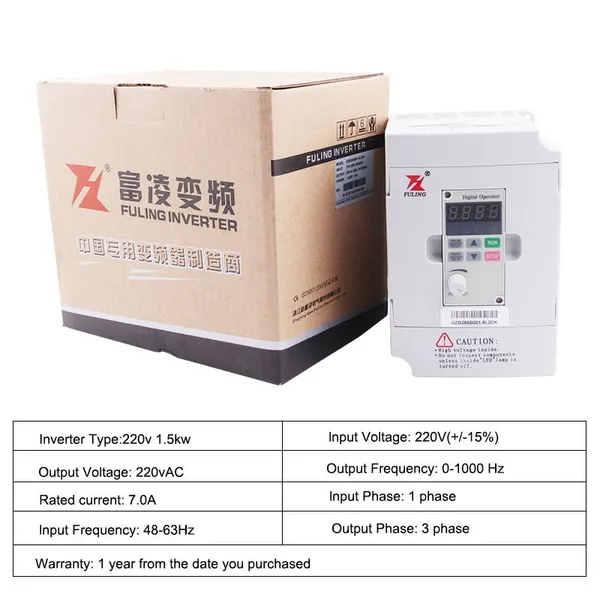

Input voltage: 220v (+/- 15%) Input frequency: 50 / 60Hz Input phase: 1 phase Output voltage: 220vAC Output frequency: 0-1000 Hz Output current: 7A Output phase: 3 phase Warranty period: 1 year from the date of purchase

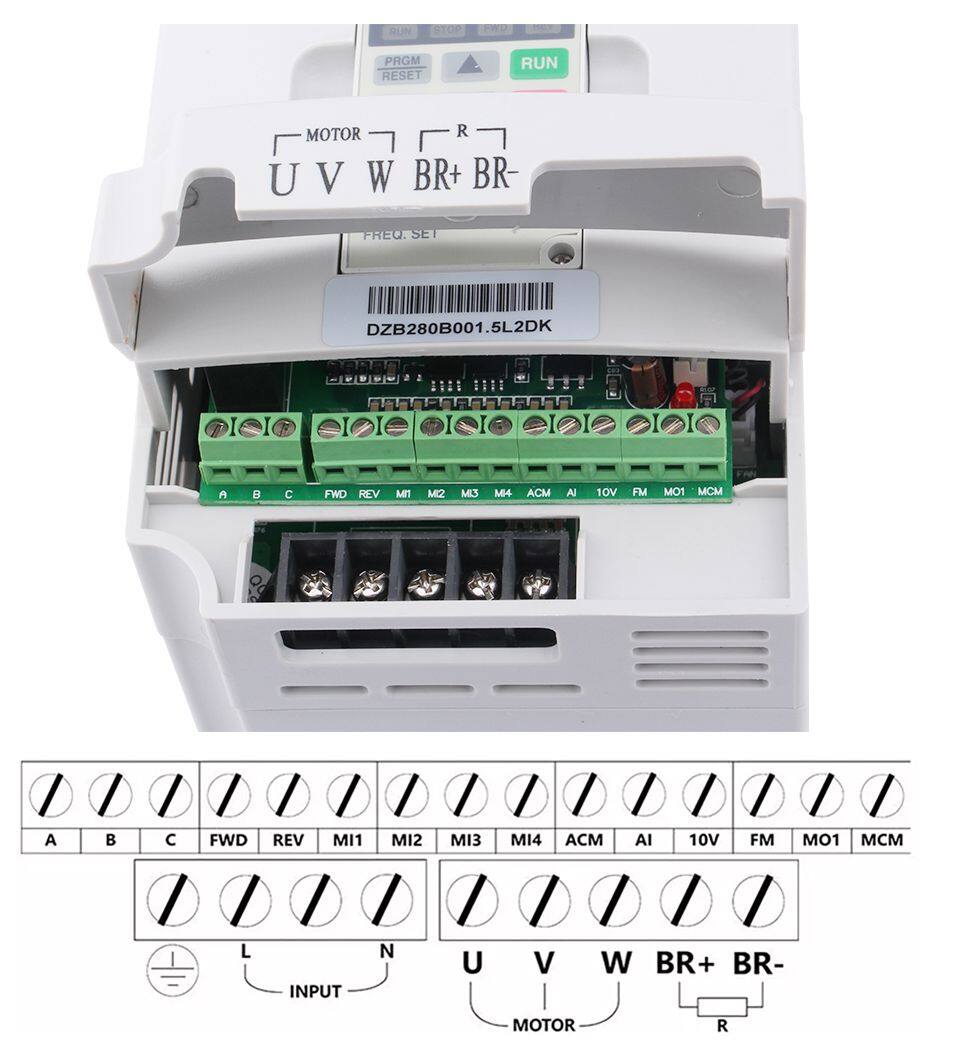

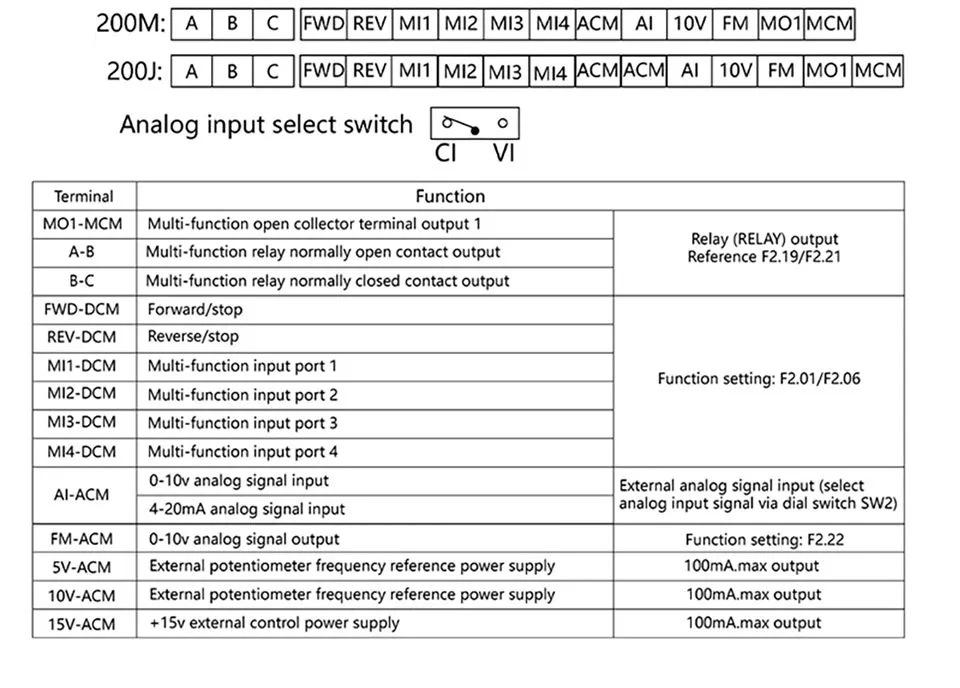

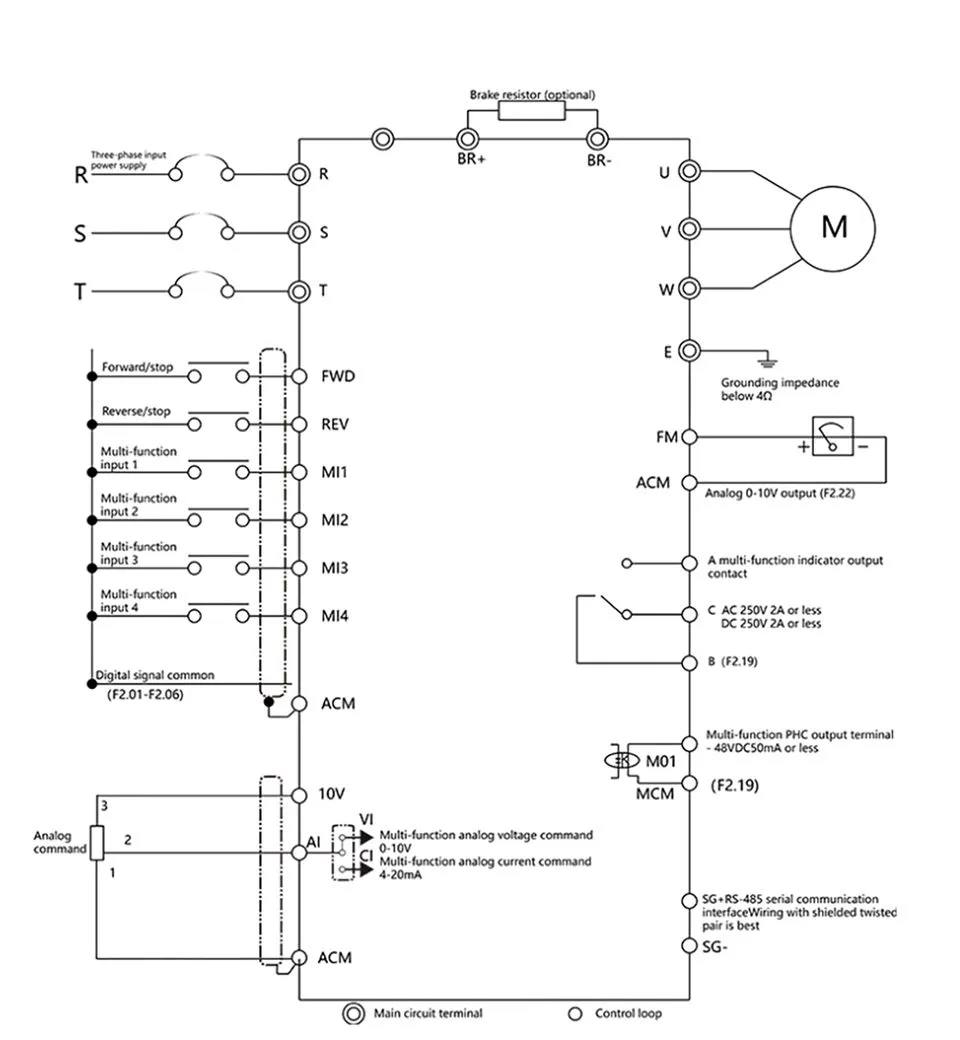

◆Two speed control methods: V/F control ◆No PG vector control (SVC): starting torque 0.5Hz up to 150% ◆8-level simple PLC function, multi-speed control and PID control ◆Support multiple frequency settings: digital settings, analog settings, PID settings, RS485 communication settings ◆I/O terminals can be freely programmed to combine multiple working modes according to user needs. ◆With frequency hopping control function, it can effectively suppress mechanical resonance and make the system more stable and reliable. ◆With instantaneous power failure retention function, it can avoid the impact on production caused by instantaneous power failure ◆With over torque and under torque detection ◆Automatic voltage regulation function, effectively solve the problem of low-frequency oscillation of high-power motors ◆Provide multiple fault protection functions: overcurrent, overvoltage, undervoltage, overheating, overload, lack of equal real-time monitoring and protection to ensure safe operation ◆Built-in reactor, the inverter power is greater than 37kW, which improves the power factor of the input side and improves the efficiency and stability of the whole machine. ◆ 0.75~15kW built-in brake unit.
Application
winding machine,mixer,extruder, slitter, winder, compressor, ventilator, pump, grinder, conveyor , elevator,centrifuger and other speed control machines.
