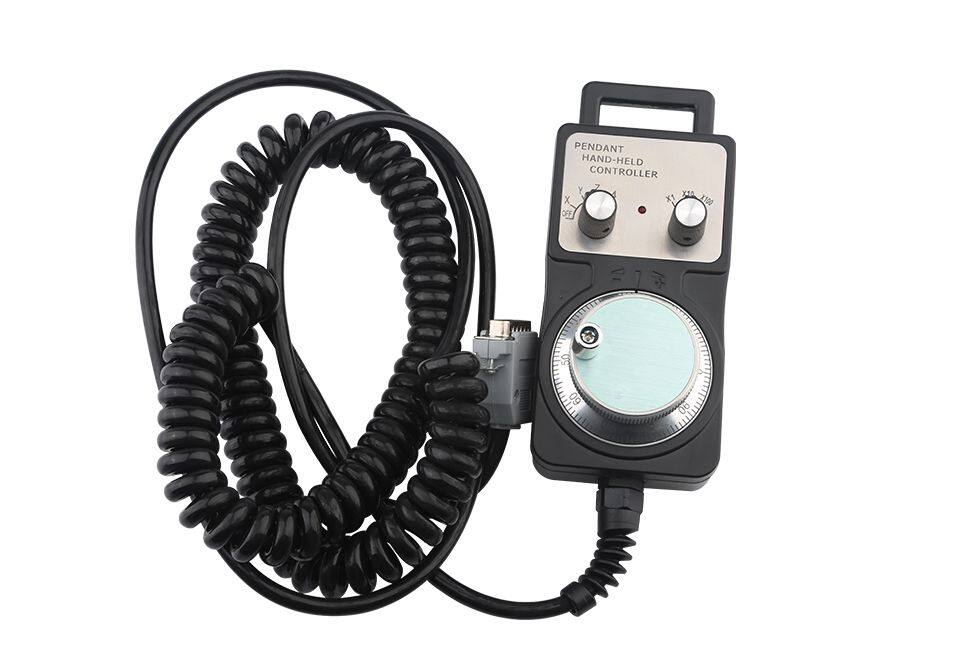

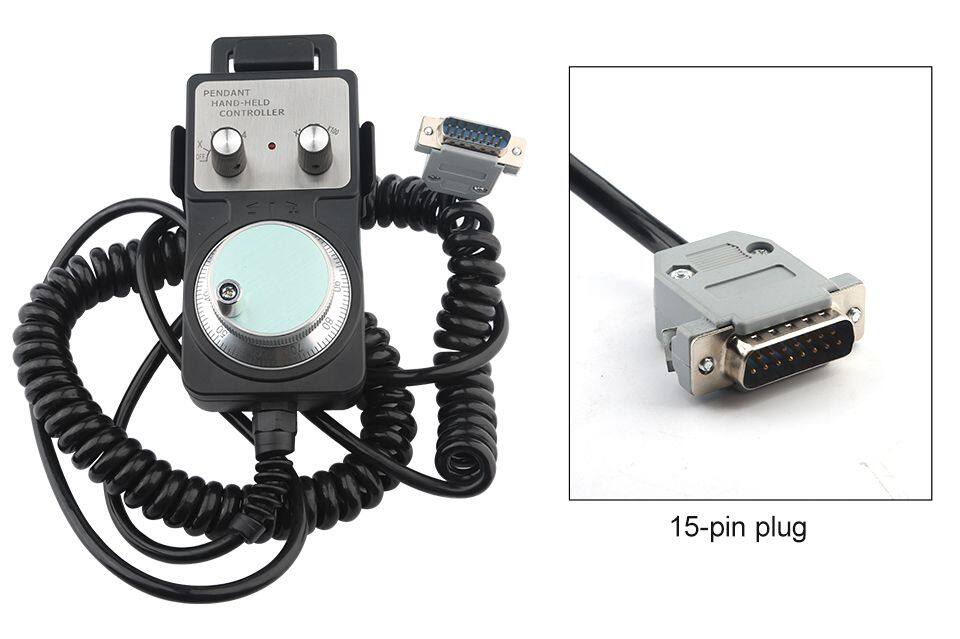

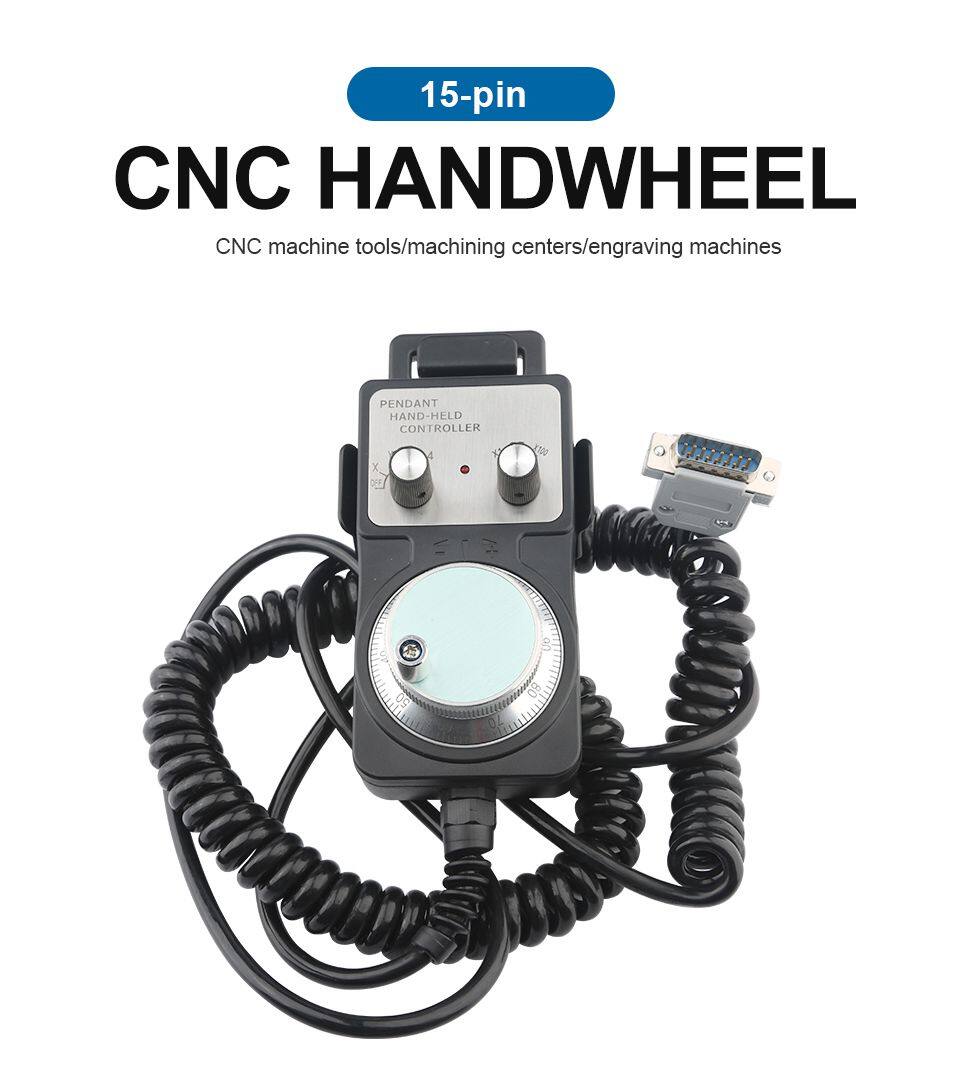

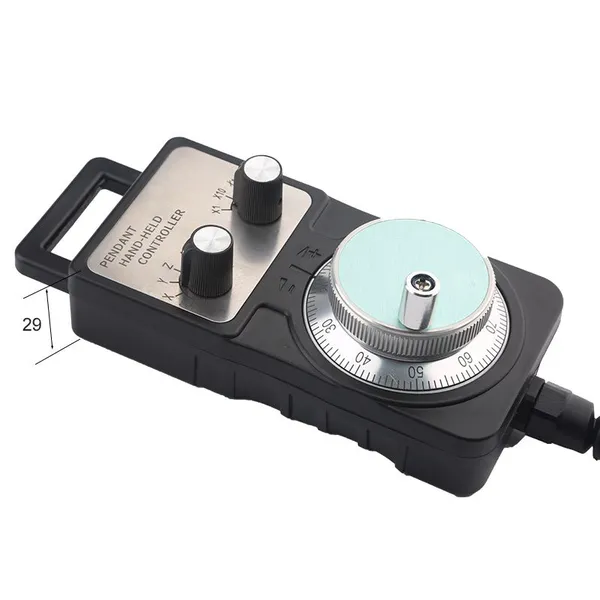

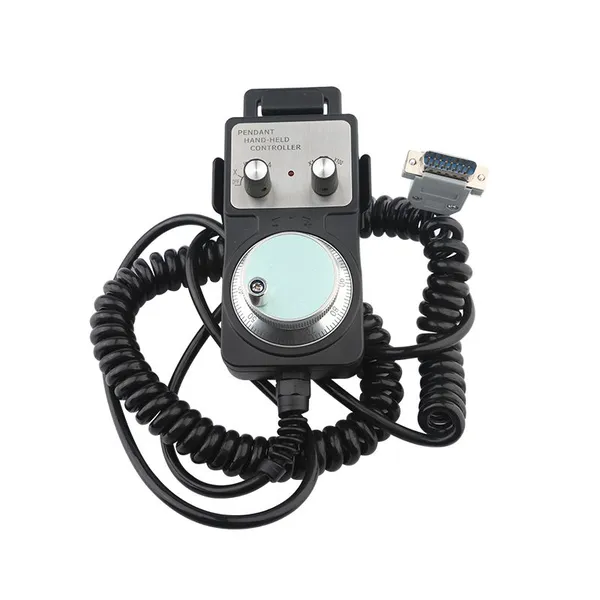

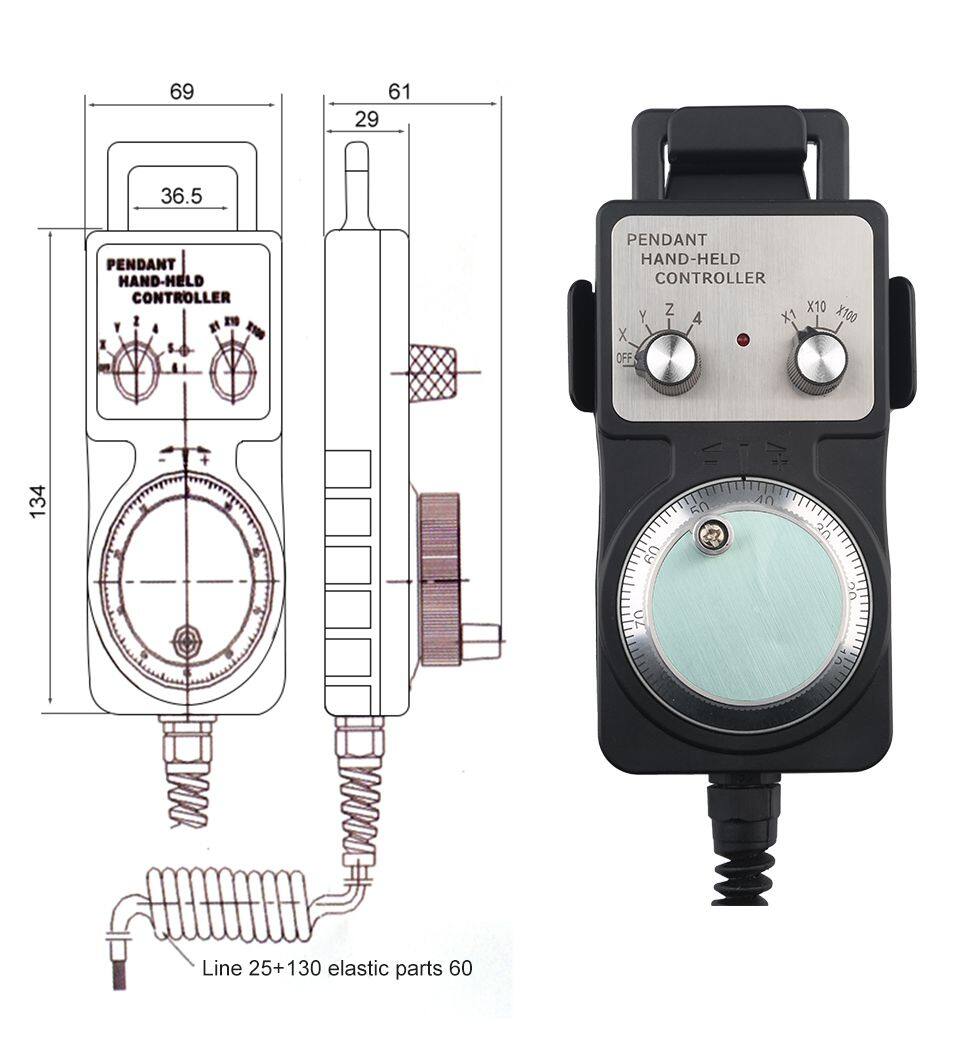

CNC Pulse Generator Trailer Handwheel 15-Pin Connector For CNC Router Machine Tool FAGOR GSK Siemens Mitsubishi FANUC System

CNC Hand Controller

Now the price of cnc components parts is affordable, if you have needs to buy cnc machine components, please leave us a message.

Feature:

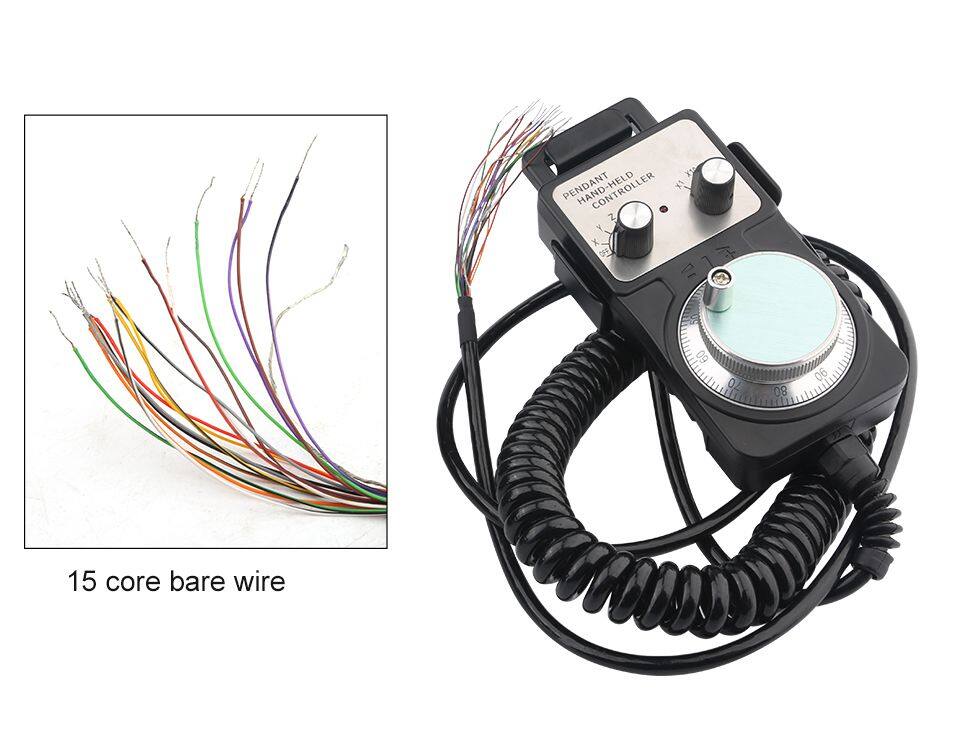

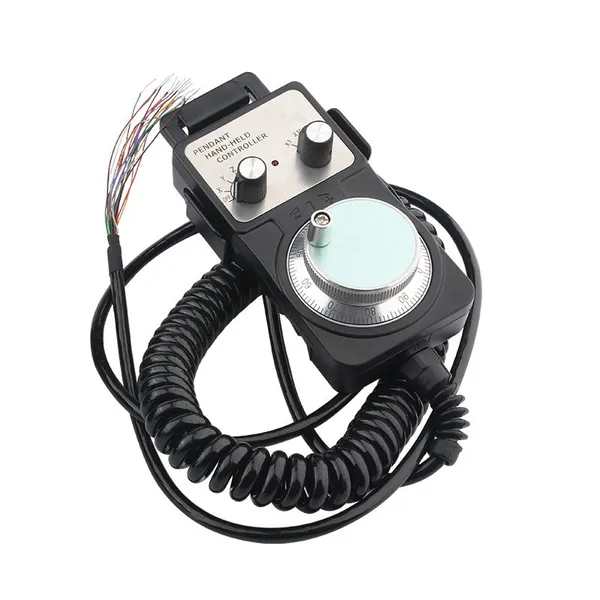

Unconnected wires must be cut into bare copper, and then wrapped one by one. Do not touch any other circuits, components and shells to avoid short circuits
1. Please read the manual carefully before wiring, so as not to affect the operation of the handwheel.
2. The positive and negative poles of the encoder must not be faulty. The voltage is too high to burn, usually 5V, and a single system such as Mitsubishi 12V, PLC after 24V.
3. The COM point is the common point of the handwheel switch and must be connected, otherwise the switch cannot work normally.
4. Handwheel operation is light and easy to be damaged by collision. Do not use too much force when rotating the code plate and switch, so as not to affect the service life
5. If there is no A-, B- signal, no need to connect
6. If Mitsubishi does not have A-, B- signals, and PLC does not have A-, B- signals, these signals are not connected

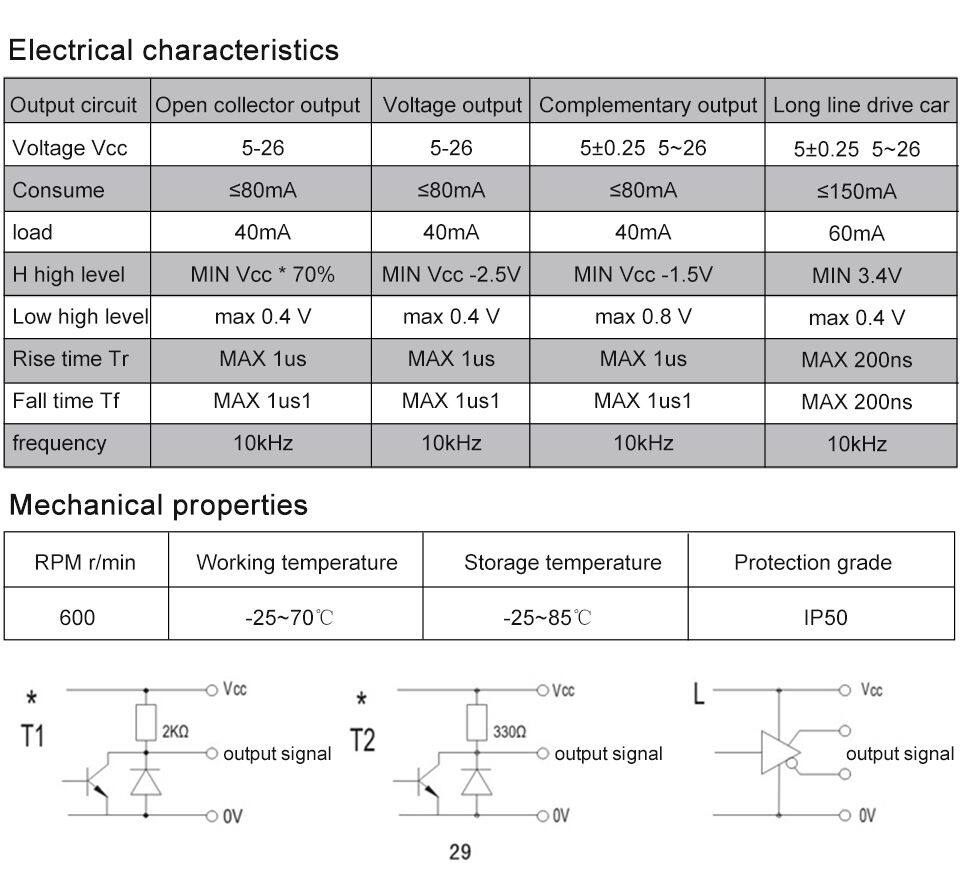

Voltage: 5V, 12V, 24V

Resolution :25, 100

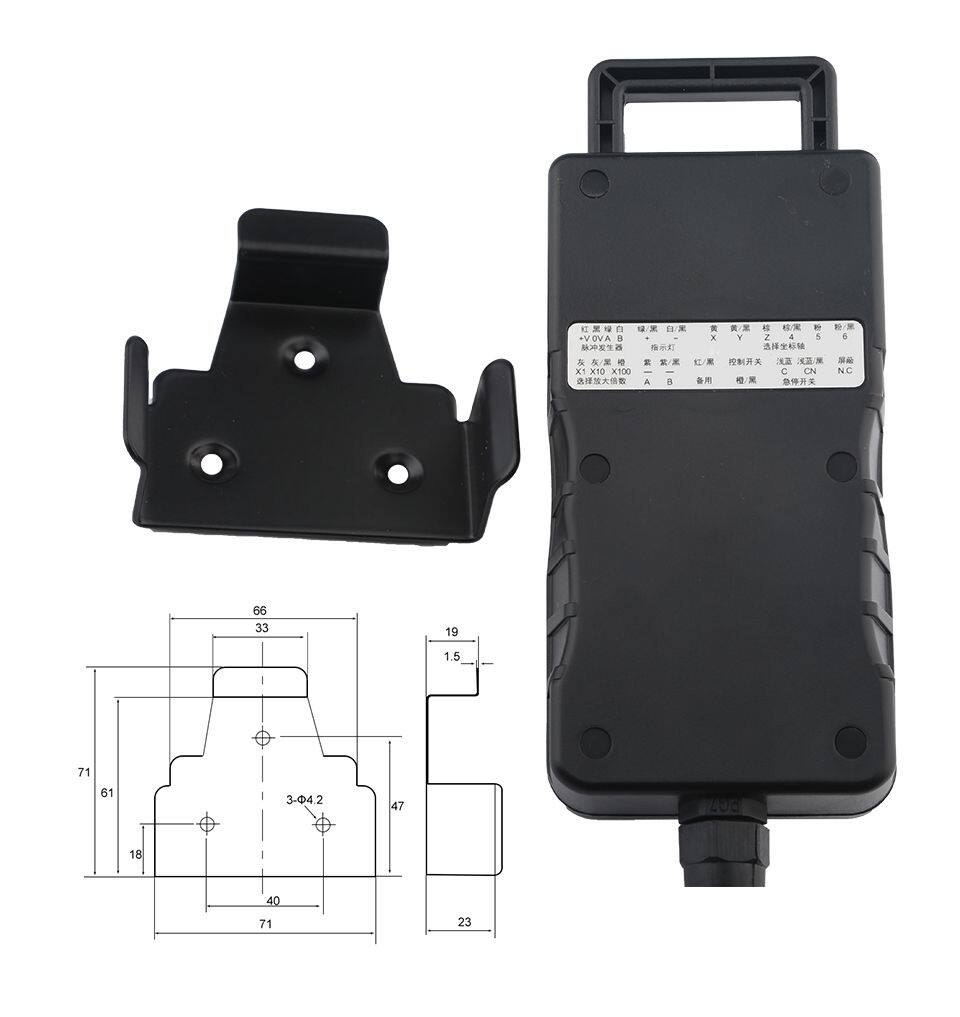

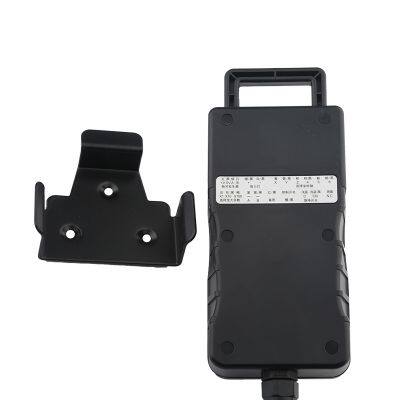

Adsorption method: magnet adsorption or hook

Output circuit: open collector, voltage output, complementary output, long wire drive

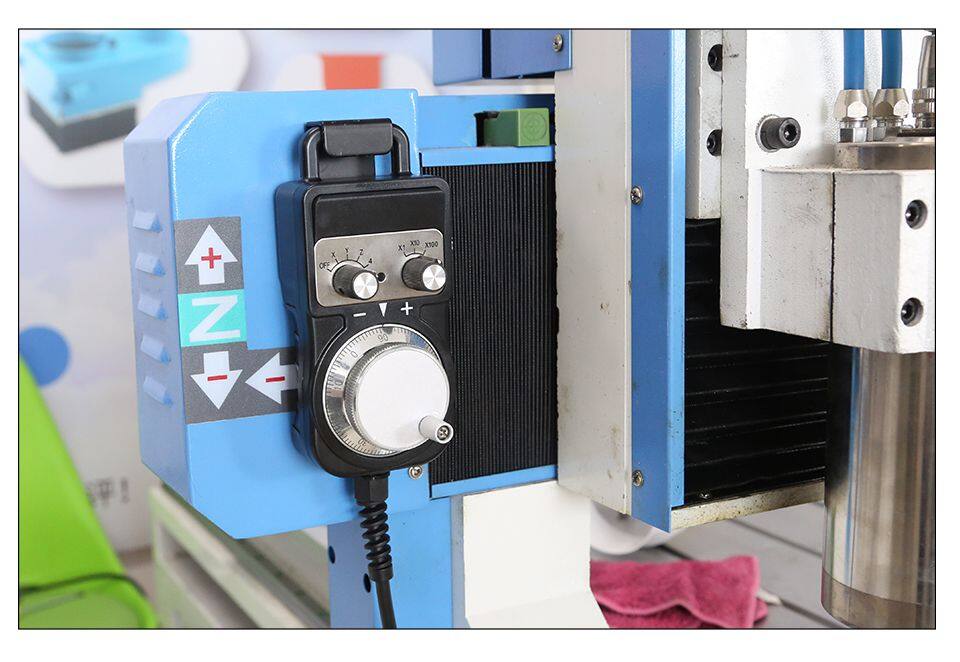

Application industry: CNC machine tools

Uses and features

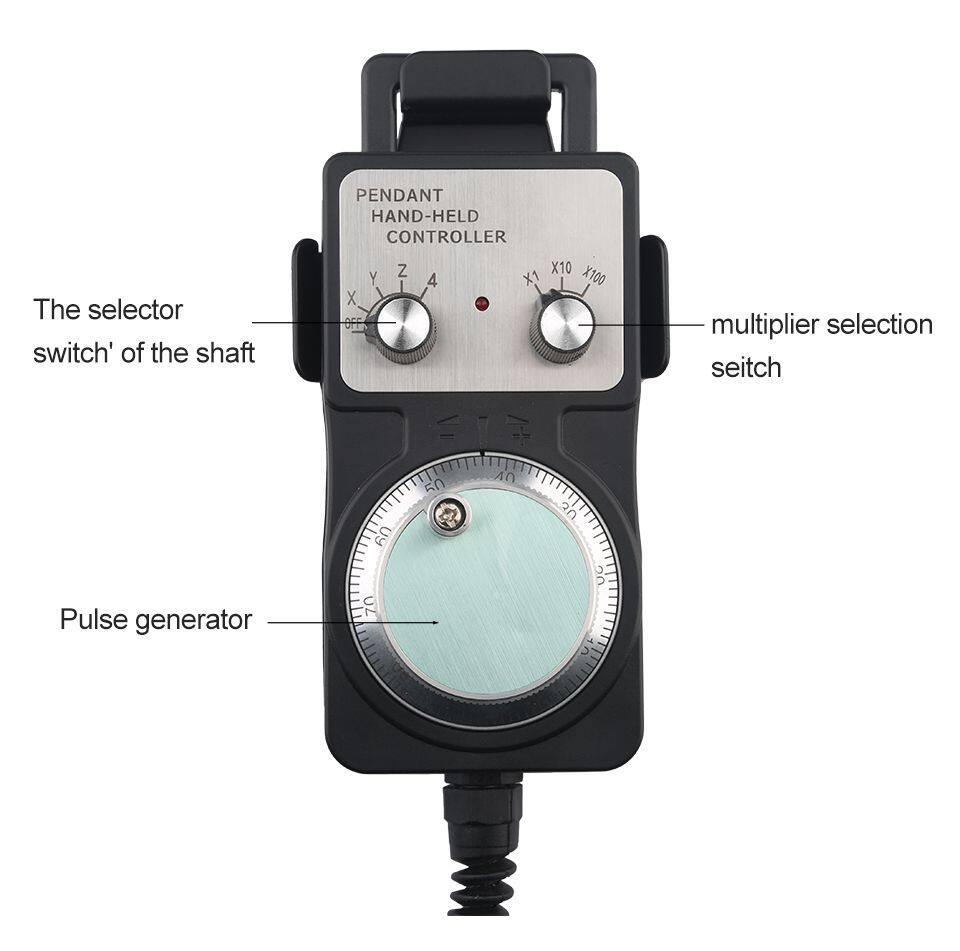

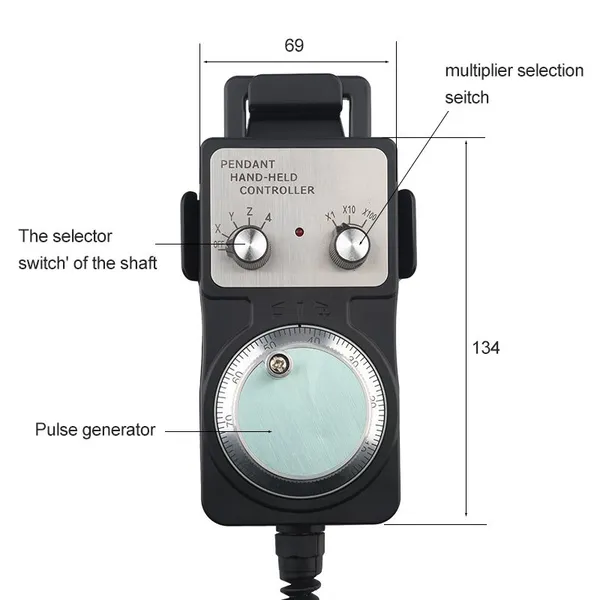

High insulation strength, with shaft transfer switch, oil discharge design, with X1,X10,X100 three levels of multiplier, can realize 6 axis and multiplier switch.

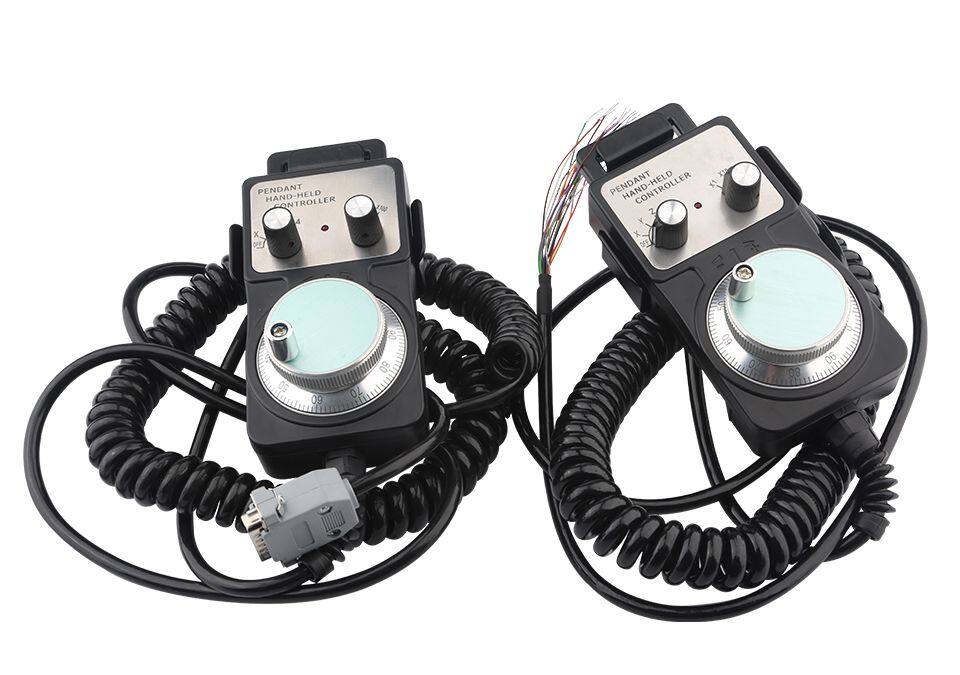

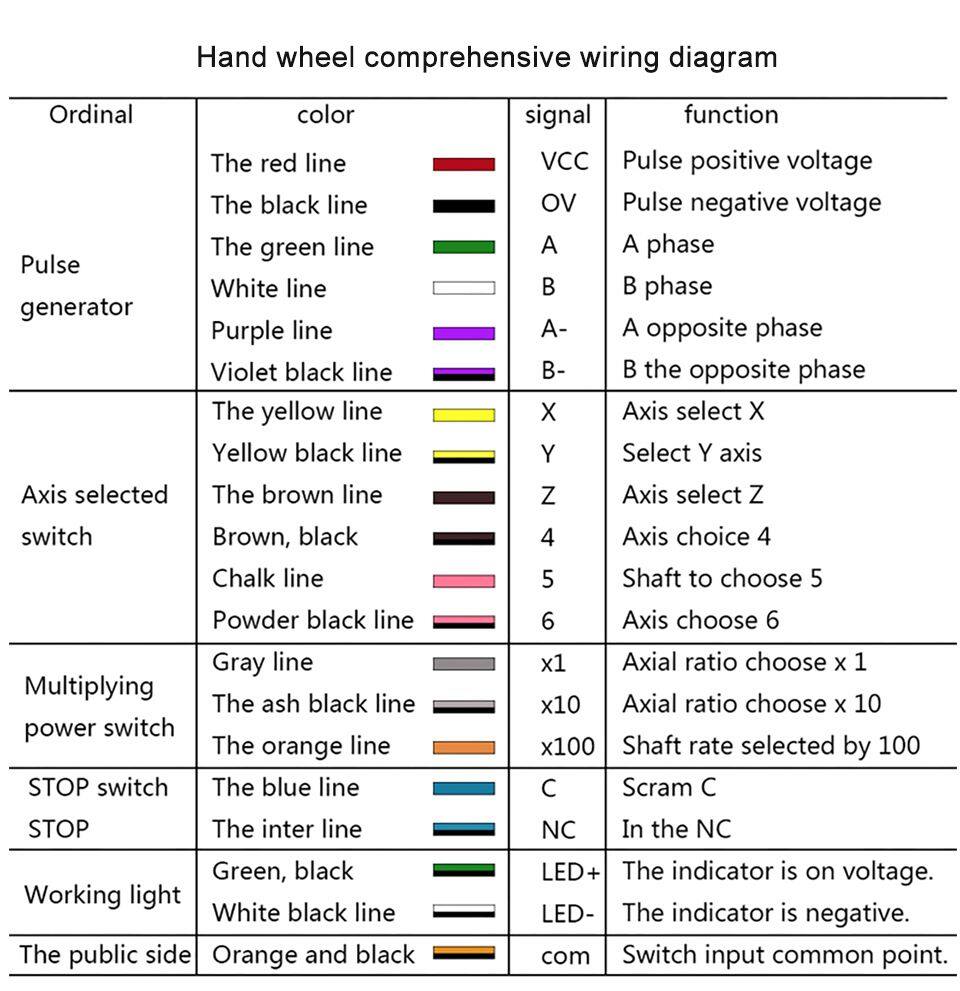

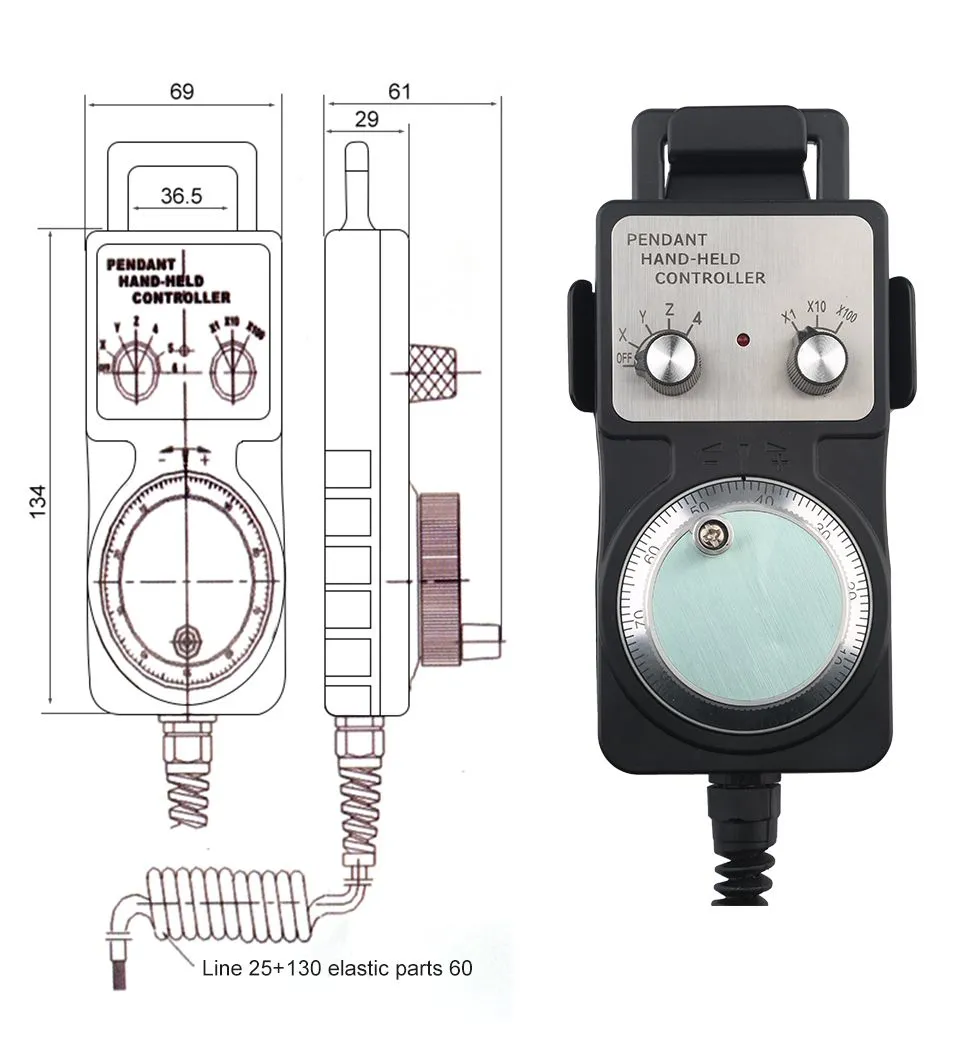

1. This product does not have a connector by default. The detailed wiring diagram is as above. If you can't operate the wiring, please consult the customer service and contact the technology to answer for you.

2. Wrong connection of the positive and negative poles of the pulse power supply will cause the pulse to burn out. Please pay attention to the positive and negative poles of the pulse power supply when installing. In addition, when installing the Mitsubishi system, please make sure that the system output to the pulse power voltage is correct before wiring.

3. The operating voltage of the pulse generator is +5V, +12V and +24V, etc. Please confirm the voltage type before wiring.

4. The output pulses of the pulse generator are AB and A/AB/B, etc. Please confirm the model first. (If there is no A-B-signal, don't connect; Mitsubishi has no A-B-signal, and PLC doesn't have A-B-signal don't connect)

5. The COM terminal can be connected to DC24V, DC5V, DC12V or DCov according to the requirements of the customer's machine tool.

6. If COM is DC24V, please connect LED+ and COM in parallel.
7. If COM is DCOV, please connect LED- and COM in parallel.

System customization, Good control.

System customization, perfect match! Ergonomic principles set,meter, anti-slip prominent lines, the center of gravity in the palm.

Environment-friendly plastic, Anti-interference

System customization, perfect match! Ergonomic principles set, meter, anti-slip prominent lines, the center of gravity in the palm.

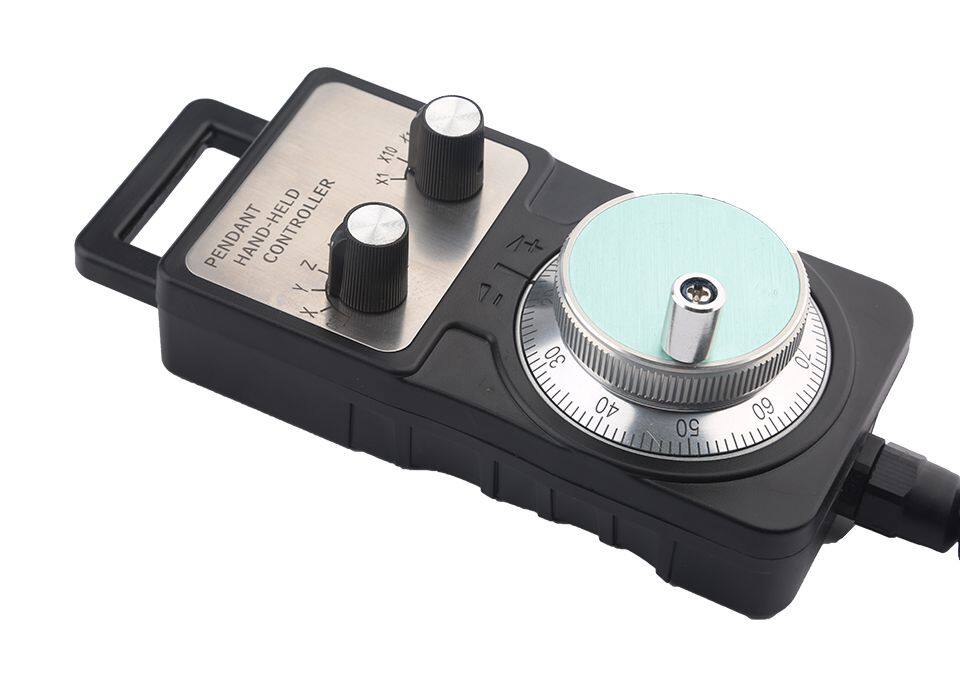

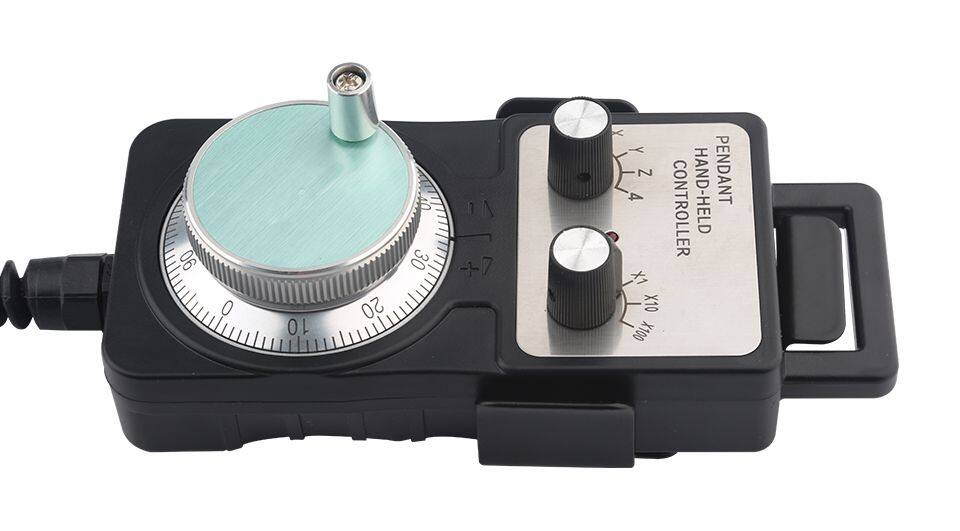

Aviation aluminum code plate

Integrated molding, fine workmanship, strong metal sense;Joints are made of special treatment, waterproof, oil-proof;Paint scale, do not fade to tang;Fine tuning dial scale thick and deep prominent,good skid resistance, smooth rotation, no jump.

Cable protective sleeve

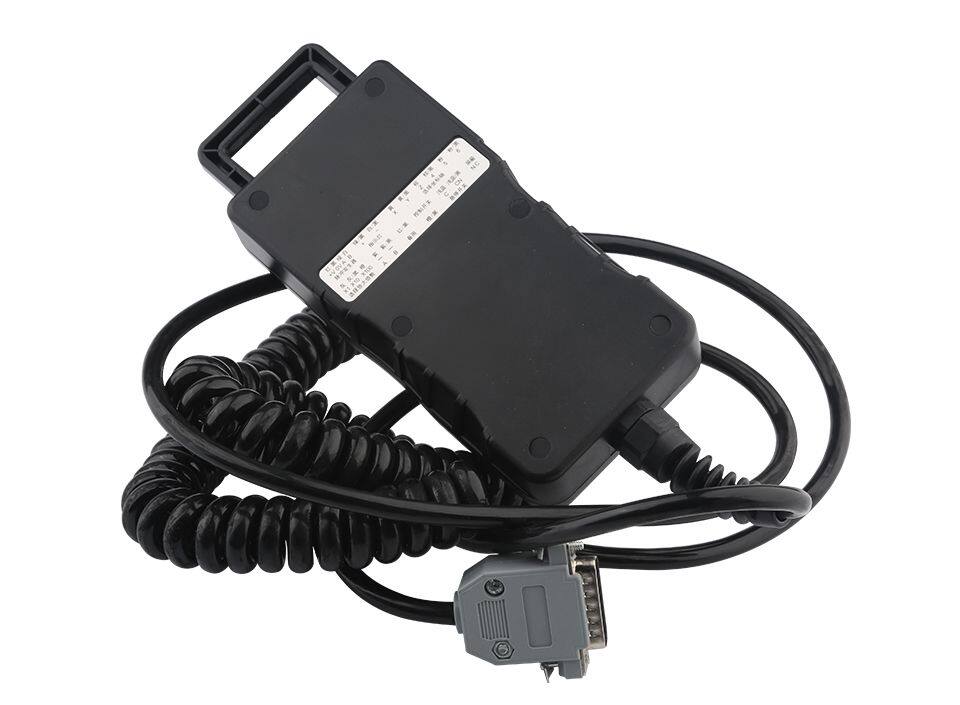

The handwheel inlet adopts waterproof connector + extended cablesheath design, which is waterproof and easy to disassemble.
