Help CenterNC Studio USB Wireless Remote Control Handle XHC WHB02 DSP Control Handle CNC Router Engraving And Cutting Machine
Related Products
-
CNC Pulse Generator Trailer Handwheel 15-Pin Connector For CNC Router Machine Tool FAGOR GSK Siemens Mitsubishi FANUC SystemUS$ 45.8MOQ: 1 Piece -
1M X 70mm/100mm Dust Cover Brush Gold Brush Main Shaft Dust Brush Woodworking Dust Cover Brush CNC Router MotorUS$ 2.7MOQ: 1 Piece
-
Hiwin Linear Guide Slider Hgh15 20 25 30ca/Cc Slider Square Guide Rail Slide Linear Slide Table 3d Printing Cnc Diy PartsUS$ 21 - 200MOQ: 1 Box
-
Fuling 1.5KW Inverter 220v 380v Engraving Machine General High Speed Spindle MotorUS$ 140MOQ: 1 Piece
-
CNC Dust Collecting Cover Dust Cutting Woodworking Engraving Machine Dust Cover Two Or Three Or Four Processes Dust AccessoriesUS$ 41 - 92MOQ: 1 Combo
Support system: Ncstudio5X, Ncstudio8X
feature:
1. Support three-axis position adjustment
2. With processing start, stop, processing feed adjustment spindle start and stop functions
3. Barrier-free transmission distance: 60 meters
4. Support the same room, can carry on 64 sets of remote control at the same time, no interference
5. With low power consumption design, 2 AAA batteries, can be used for six months
Working criteria:

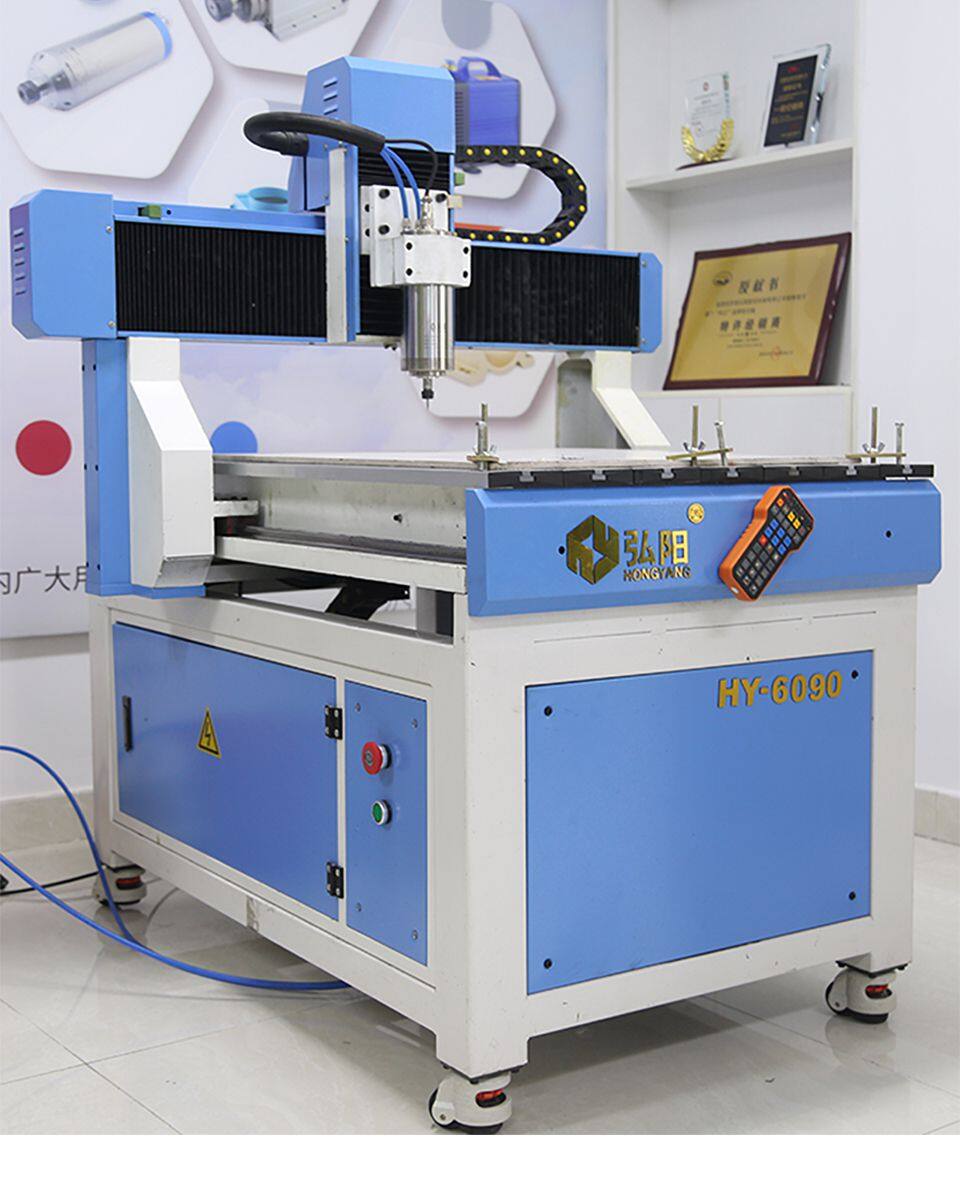

Traditional engraving machine requires engraving machine and computer to work together, and workers need to cooperate
Between the engraving machine and the computer. The work efficiency is low and the operation is inconvenient. And WHB02
Wireless controller, equivalent to the operator’s handheld computer, standing directly on the front engraving
The machine and engraving machine can operate normally, which brings great convenience to the work.

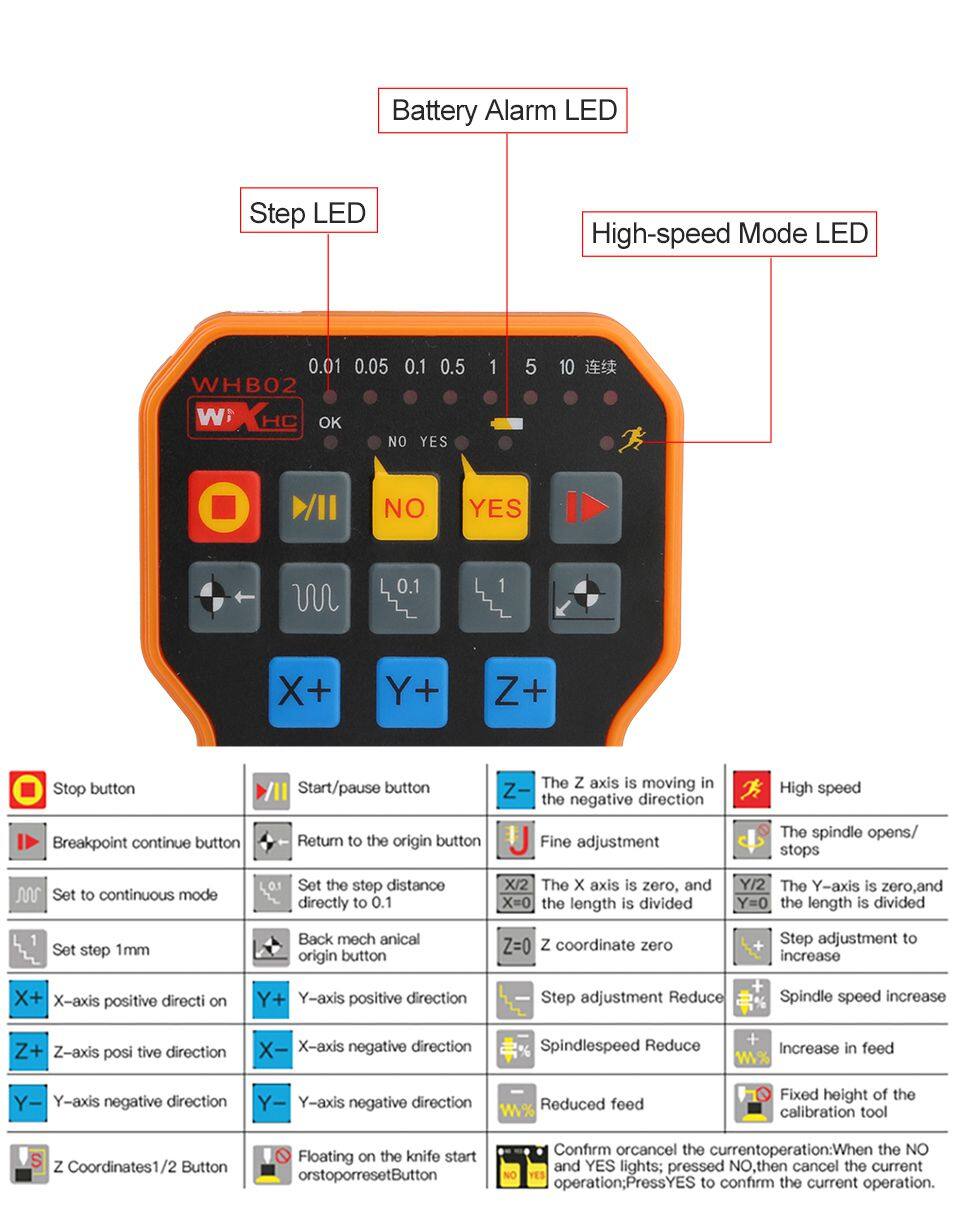

Function Description
Performance or Parameters Description:

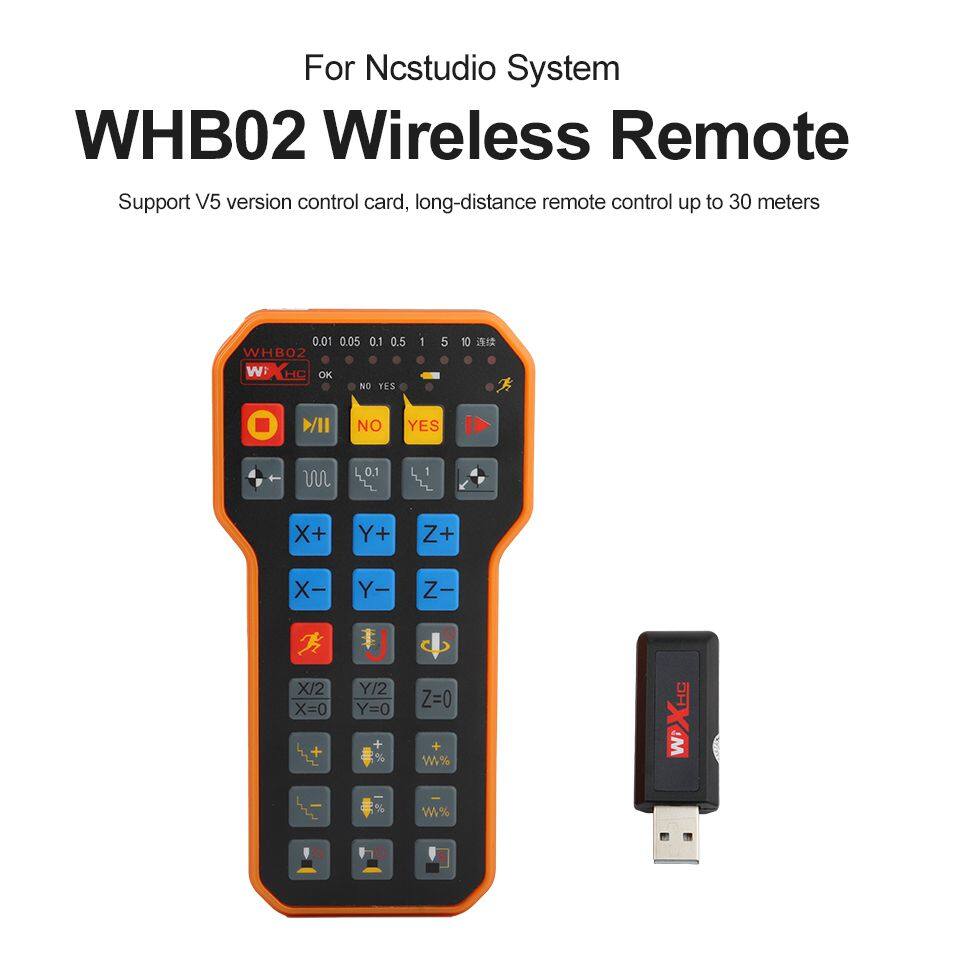

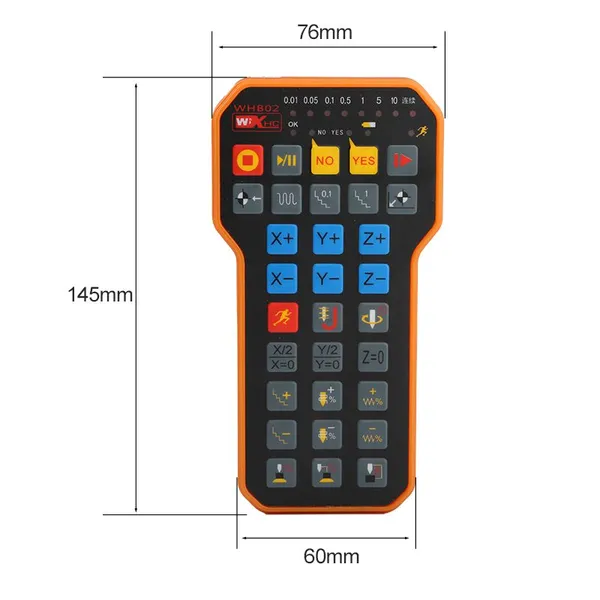

WHB02 Wireless Handwheel is a new product for NC Studio System and Card. It is widely used in furniture
production engraving machine, advertising field processing, stone processing. Apply for Weihong NCStudio5.449,
NCStudio8.202 versions and so on.

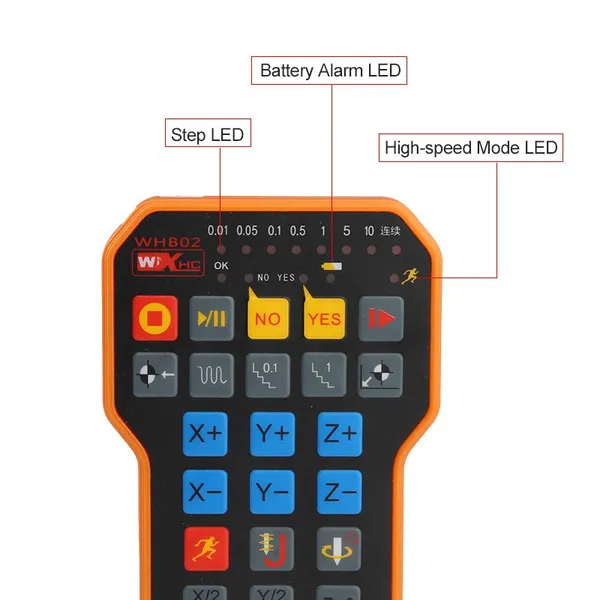

It has a step value indication, you can easily indicate the step value indicate 1X, 10X for the current sculpture,
or continuous state.
High-speed instruction

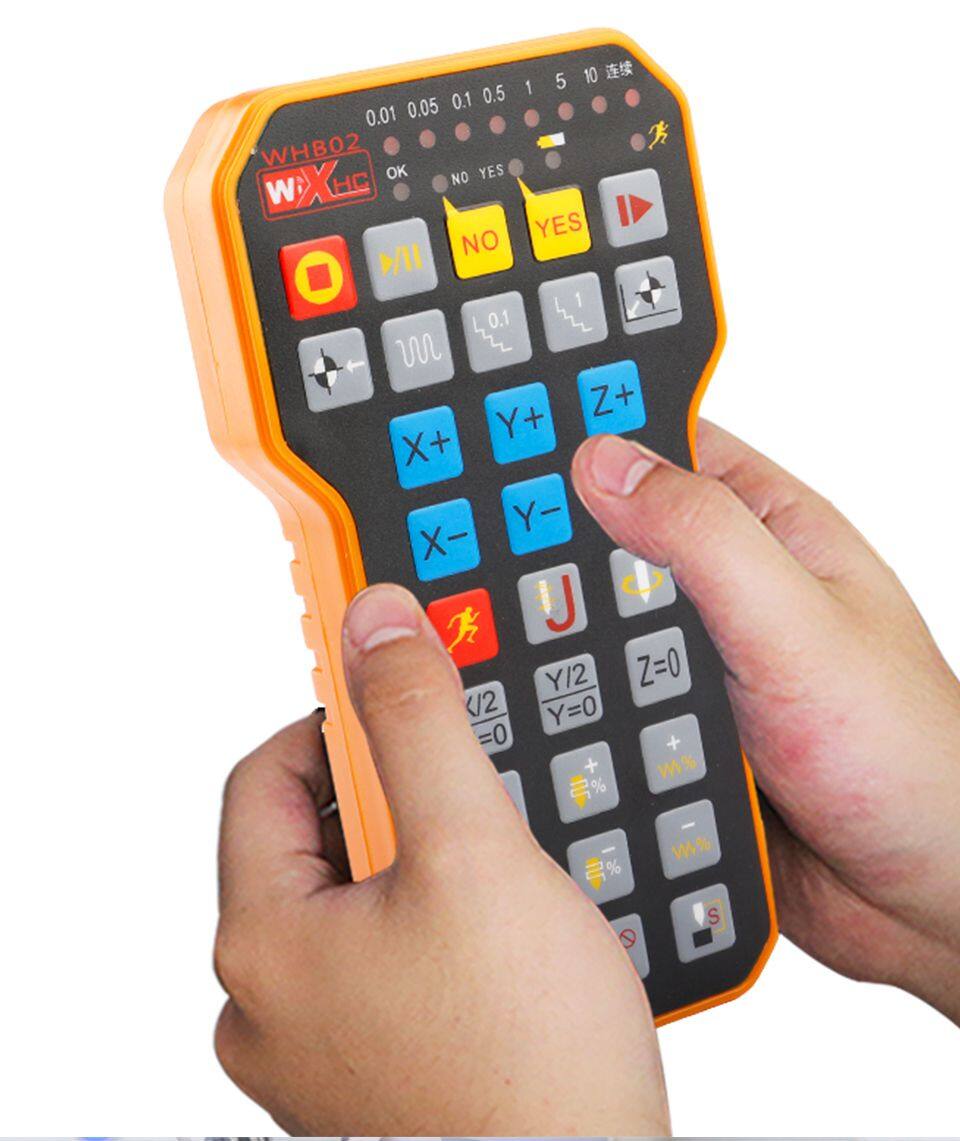

Boot power indicator, handle battery undervoltage alarm indication; Operation key part: handle with integrated
common machine operator key functions
Feed adjuster
Start / pause function.
X, Y, Z axis adjustment;
X, Y, Z axis fine-tuning;
X, Y, Z axis clear function;
Floating knife function;
Spindle on / off function;
Back to mechanical origin function;
Back workpiece origin function;
Carving open file feature, select File carving and much more.

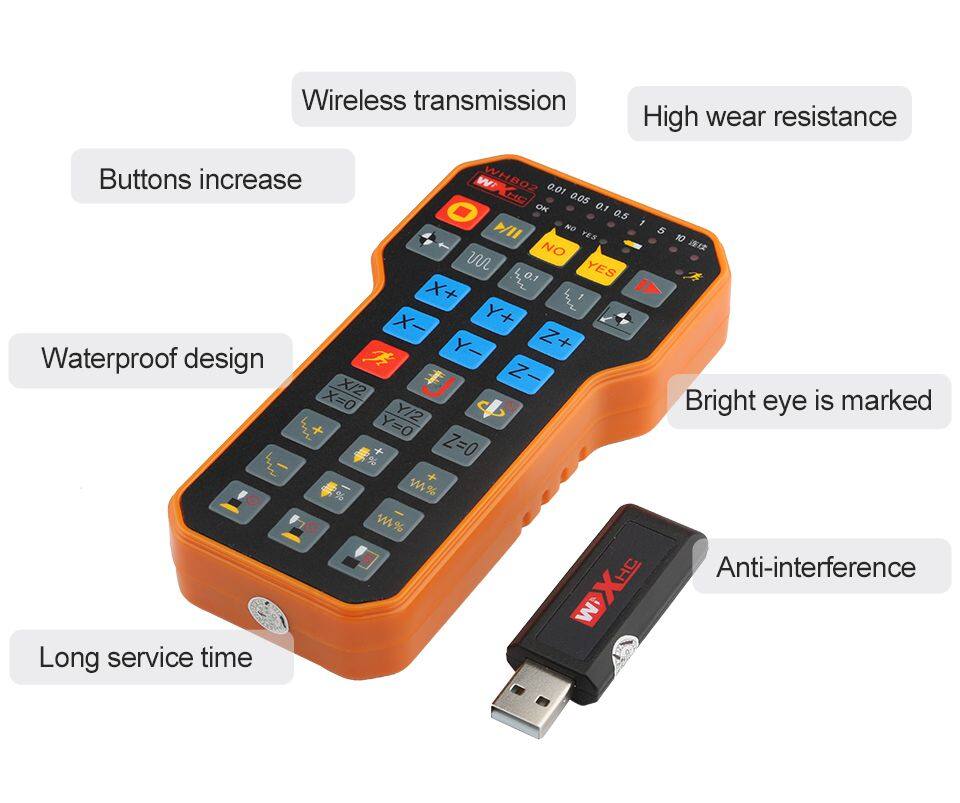

Low energy design
Average service life of two AA batteries of the second generation handle is about 2 months.When the three-generation handle button is working, if there is no button, it will enter the power saving mode after 1 second, and the user will not forget to turn off the power switch. In the case of power consumption, the service life of two AA batteries can reach about 6 months.
Wireless transmission distance
Color of the three generations of the handle is orange, which is easy to find. The linear and barrier-free wireless transmission distance of the three generations of the watch is 60 meters,further and more stable
wear-resisting,Life is long
Three generations of handles use metal film switch, which has a long service life.Long keysAlso not easy Press the PVC sticker to damage.
General Characteristics
Parameter: Description
Frequency bands: ISM, 443MHZ
Supply voltage: 2 AA batteries
Function Key: 31 Keys
Wireless transmission distance 40 meter
RF TX power: 10DB
Receiver: sensitivity -98DB
Maximum axis: 3 axis
Material: ABS, PC

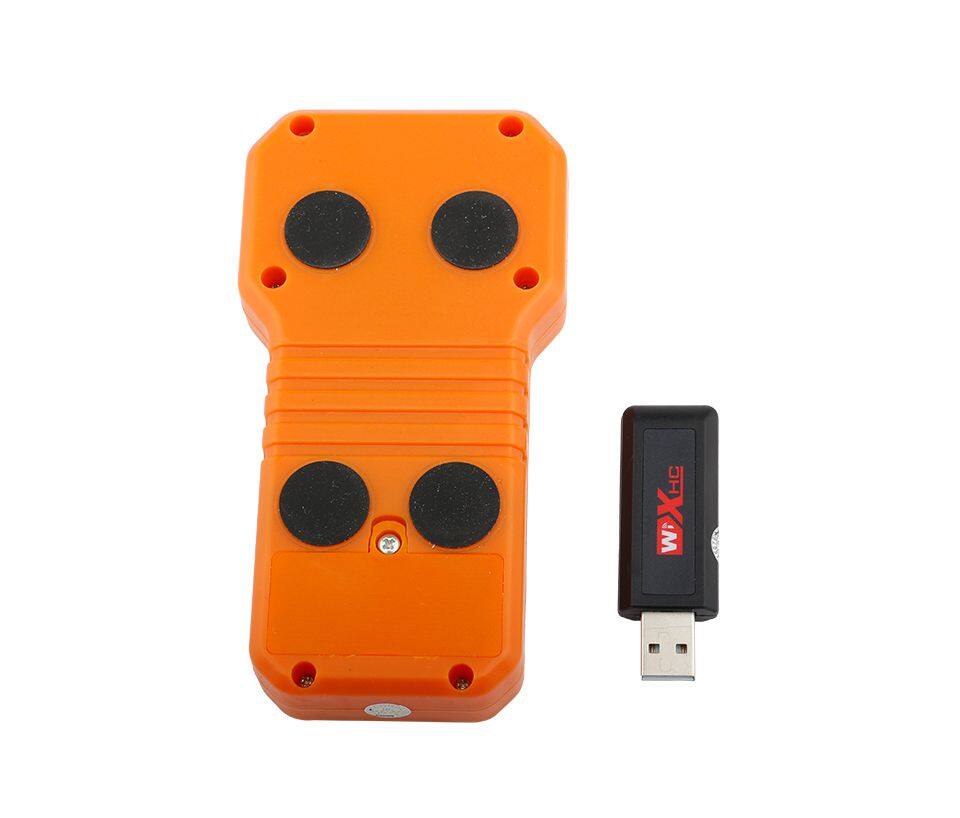

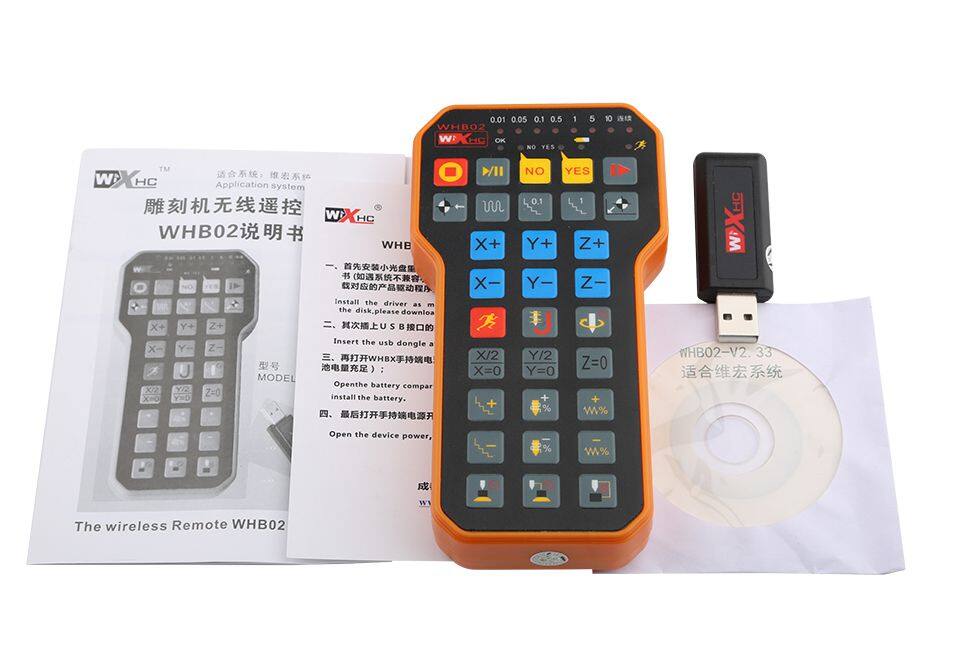

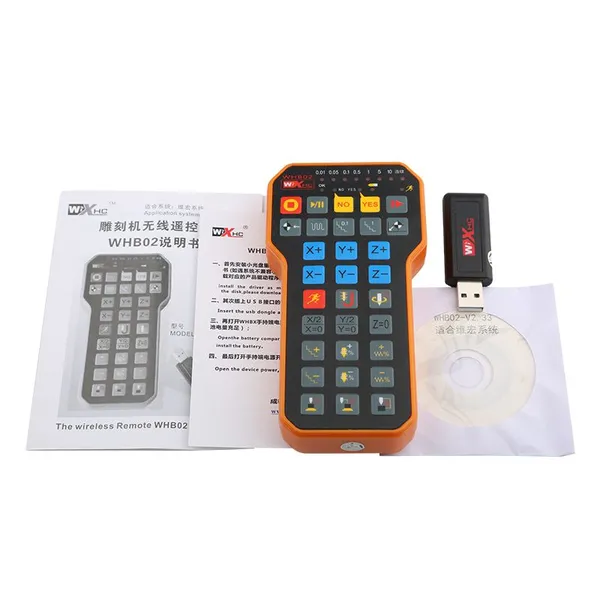

Attachments

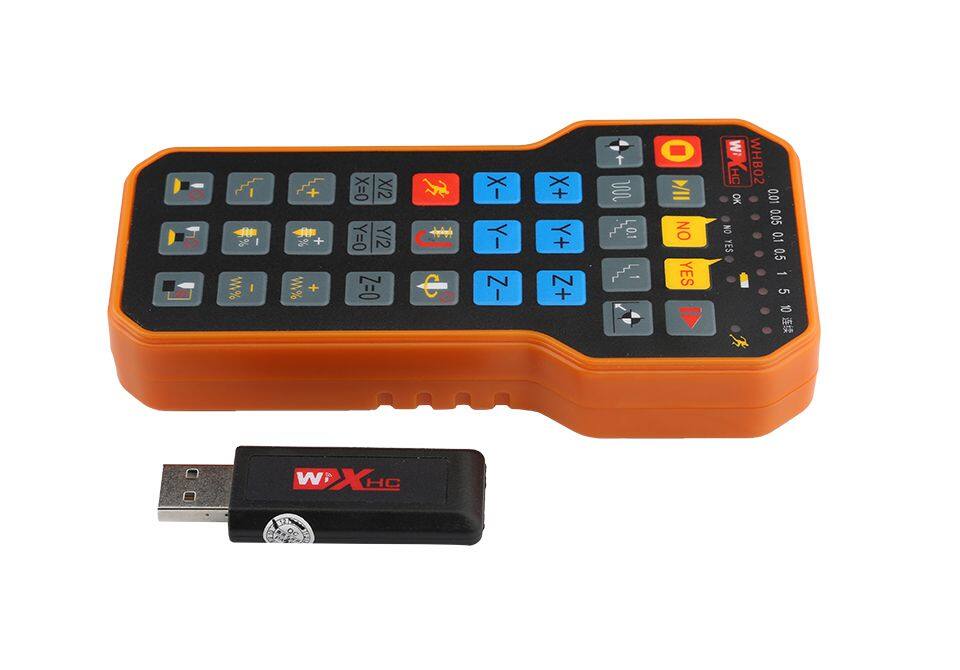

WHB02 Wireless MPG 1piece
USB receiver: 1piece
Driver disk: 1 disk
Guarantee card: 1 paper
user manual: 1 book

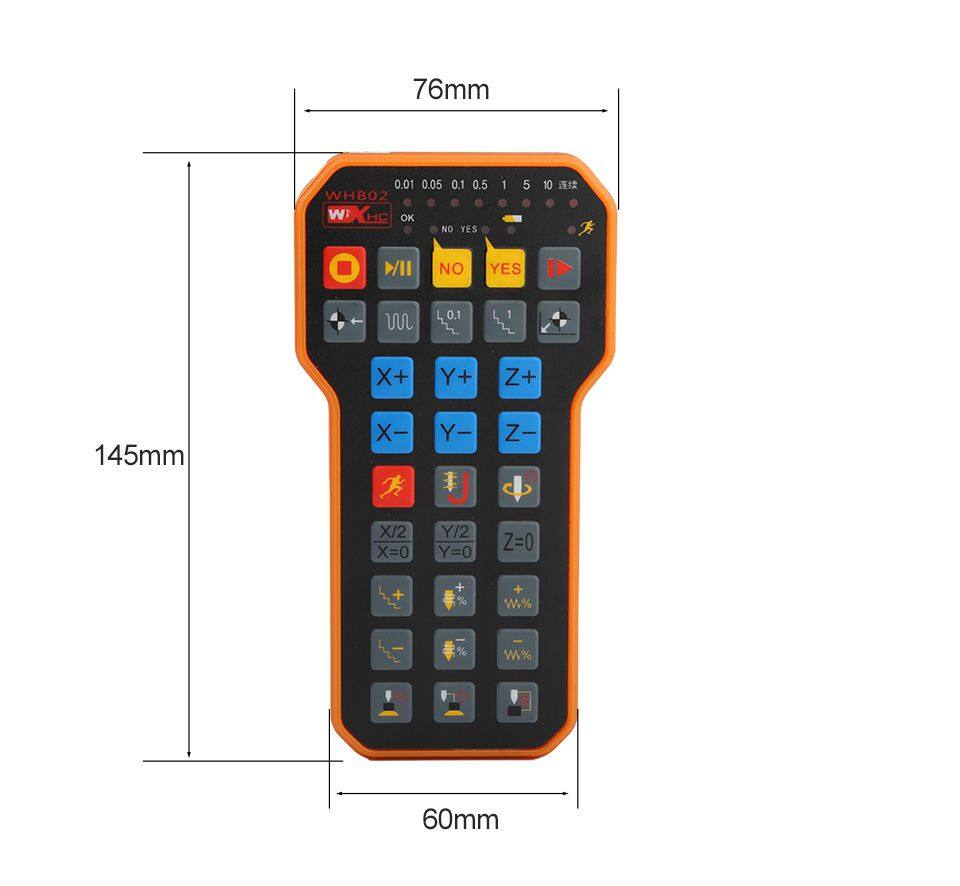

Package box size: 265*125*75mm
Weight: 0.7kg
