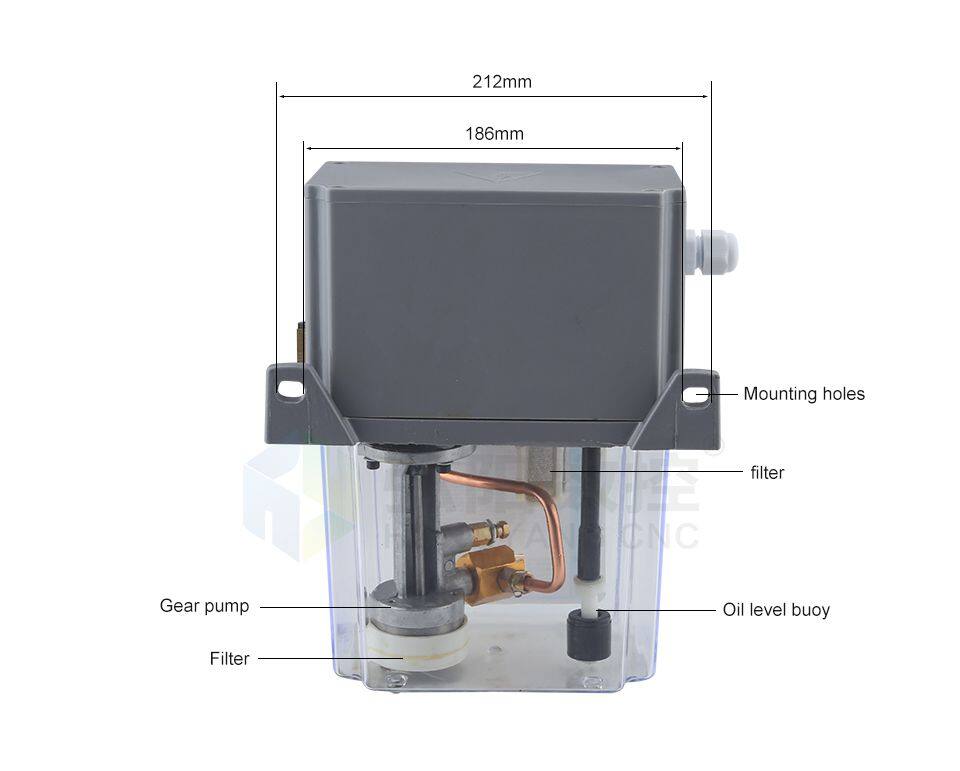

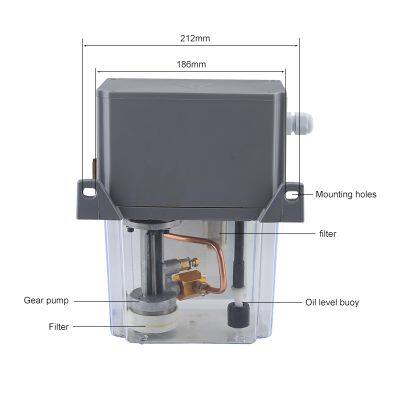

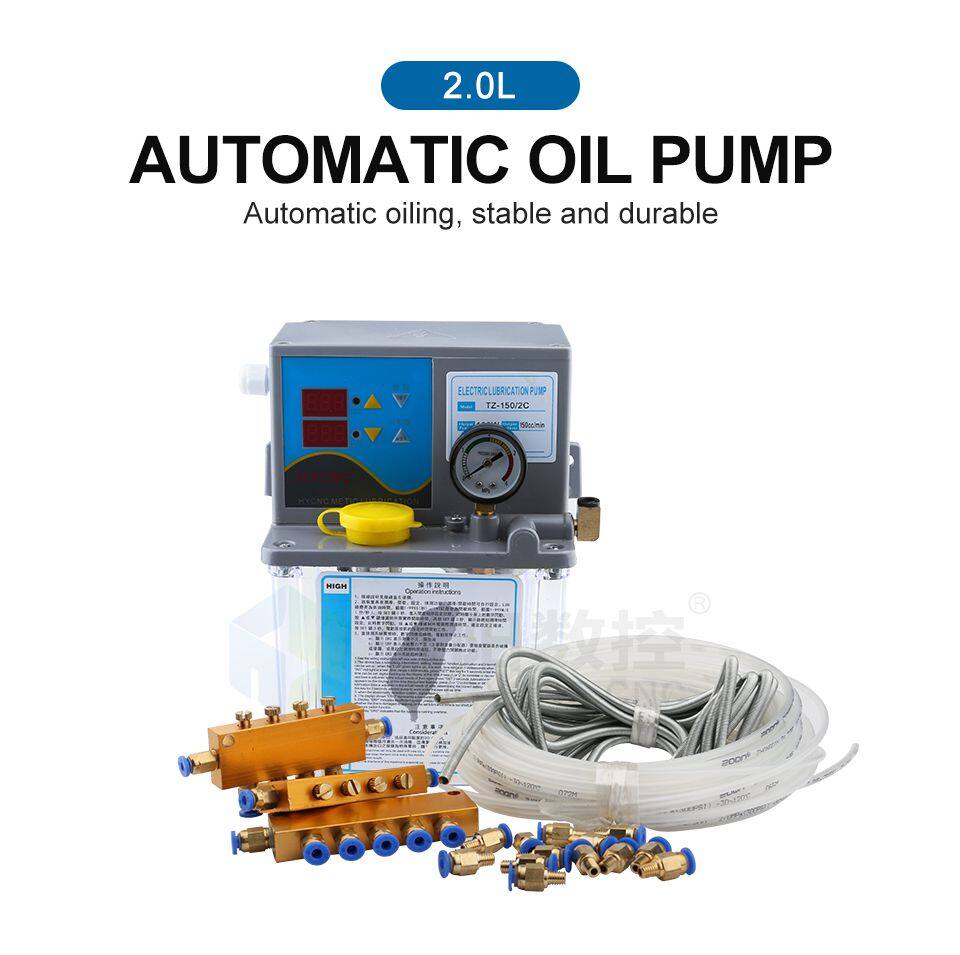

TZ-150 electric gear lubrication pump is a fully automatic controlled oil pump with a gear structure. The working time is 1-999 seconds and the shutdown time is 1-999 minutes, which can be adjusted arbitrarily according to the needs of mechanical equipment. It has low noise, high efficiency, and high pressure stability. Simple operation and other characteristics, suitable for gears, guide rails, chains, etc. of machine tools, textile machines, elevators, woodworking machinery, and used with centralized lubrication accessories, so as to achieve the effect of automatic lubrication without manual operation, timing and quantitative automatic lubrication.

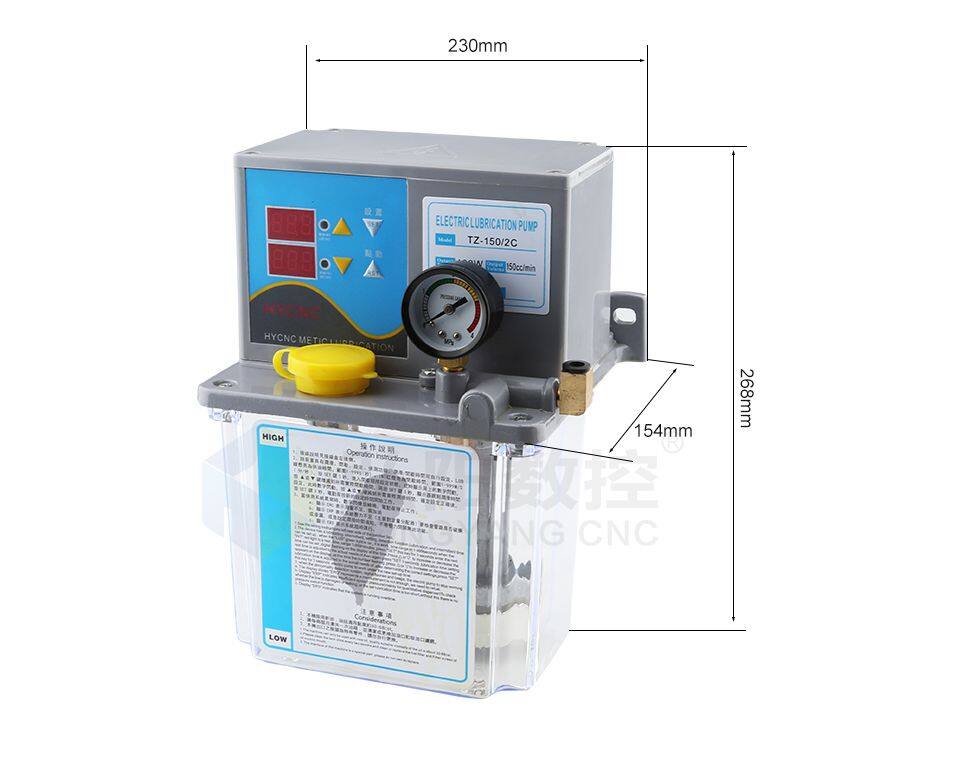

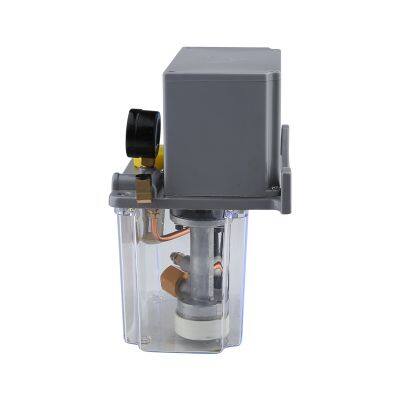

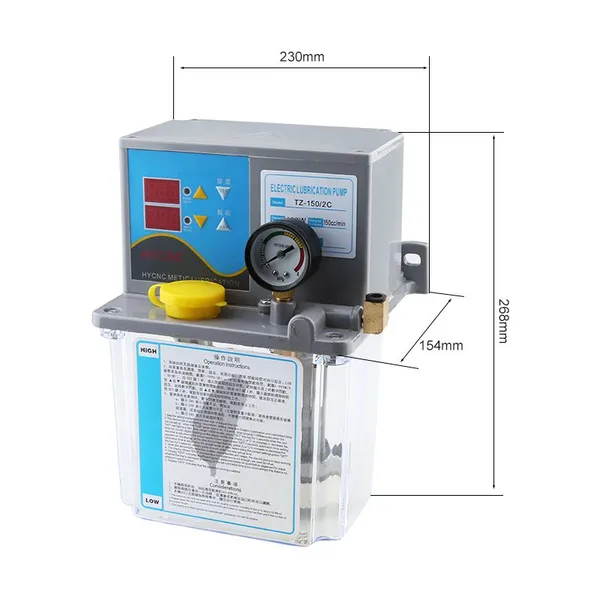

Product name: TZ-150/2G electric gear lubrication pump
Lubrication time: 1-999 seconds adjustable
Interval time: 1-999 minutes adjustable
Voltage: 110V or 220V
Pressure: 2.0Mpa
Oil pump volume: 2L
Scope of application: machine tools, textile machinery, elevators, etc.

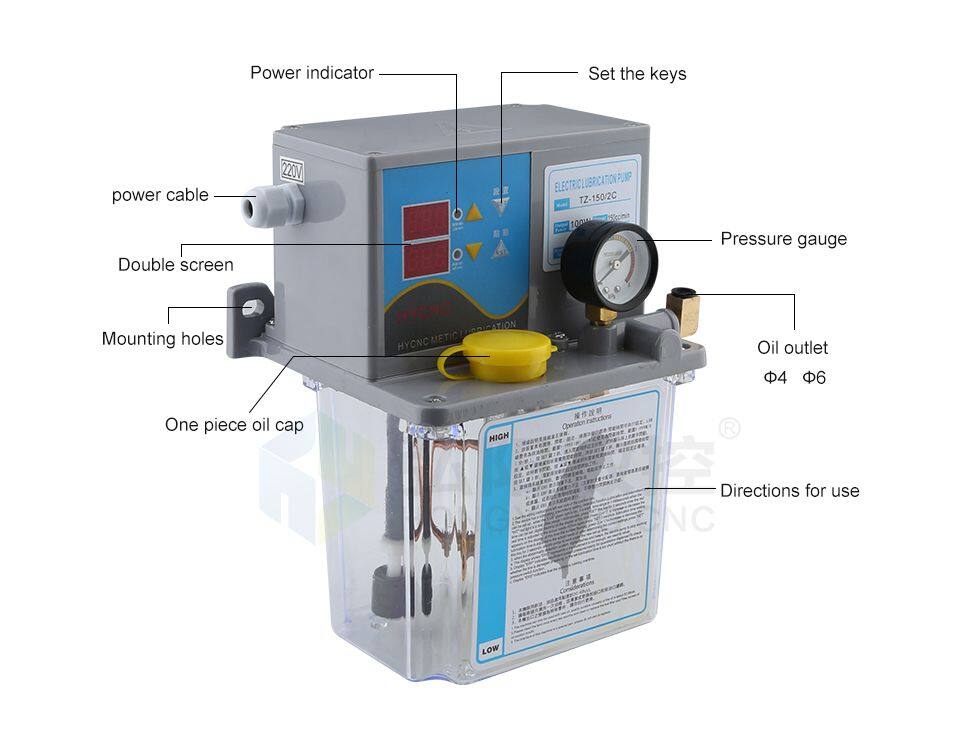

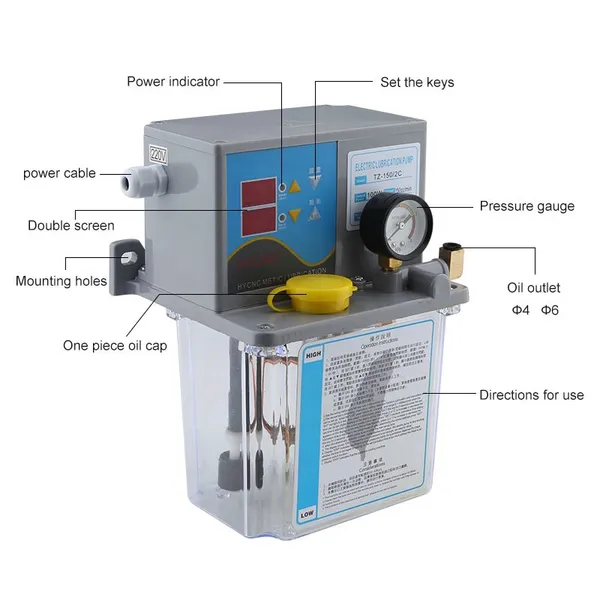

Performance characteristics:
1. The oil flow and intermittent time can be adjusted
2. Equipped with motor self-protection device to prevent excessive temperature and overload
3. The constant pressure function of the pressure relief valve can protect the lubrication pump and pipeline to reduce failures
4. Equipped with a liquid level switch, the buzzer will give an alarm when the oil level is insufficient, and the abnormal level signal can be output
5. The panel indicator can show the running status of the lubrication pump
6. It can be set as the rest period according to the number of mechanical operation, and the count value is based on
7The pressure switch can be freely selected according to user requirements
8. With ACT button, it can be forced to lubricate
9. Need to be used with resistance lubrication system

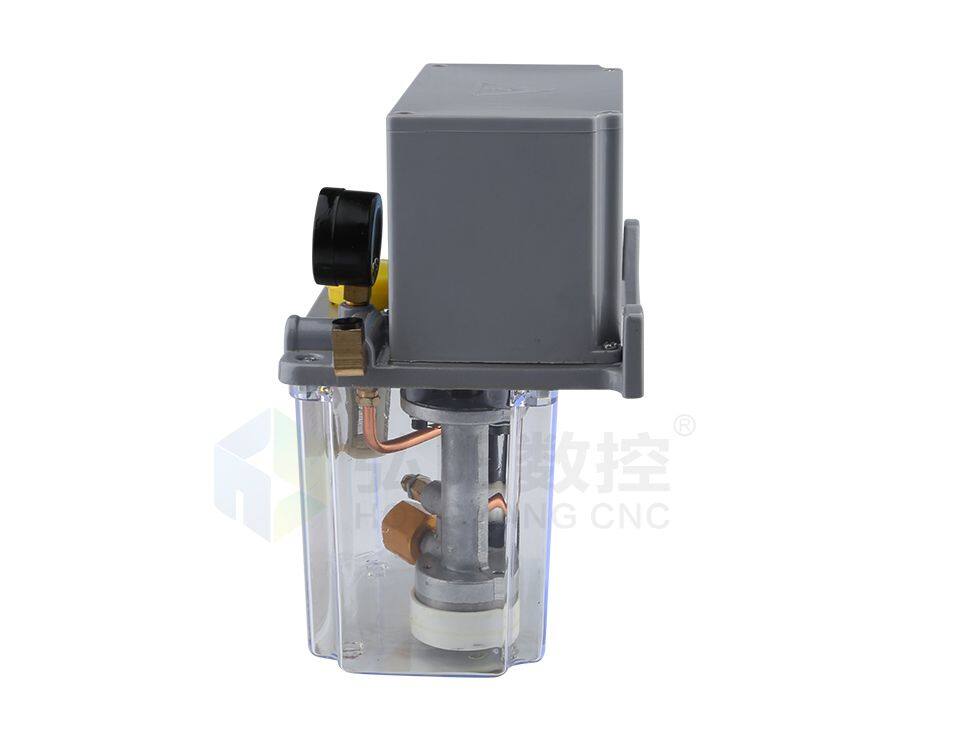

Increasing housing
Using high strength bending steel plate, the durability is much higher than plastic plate.

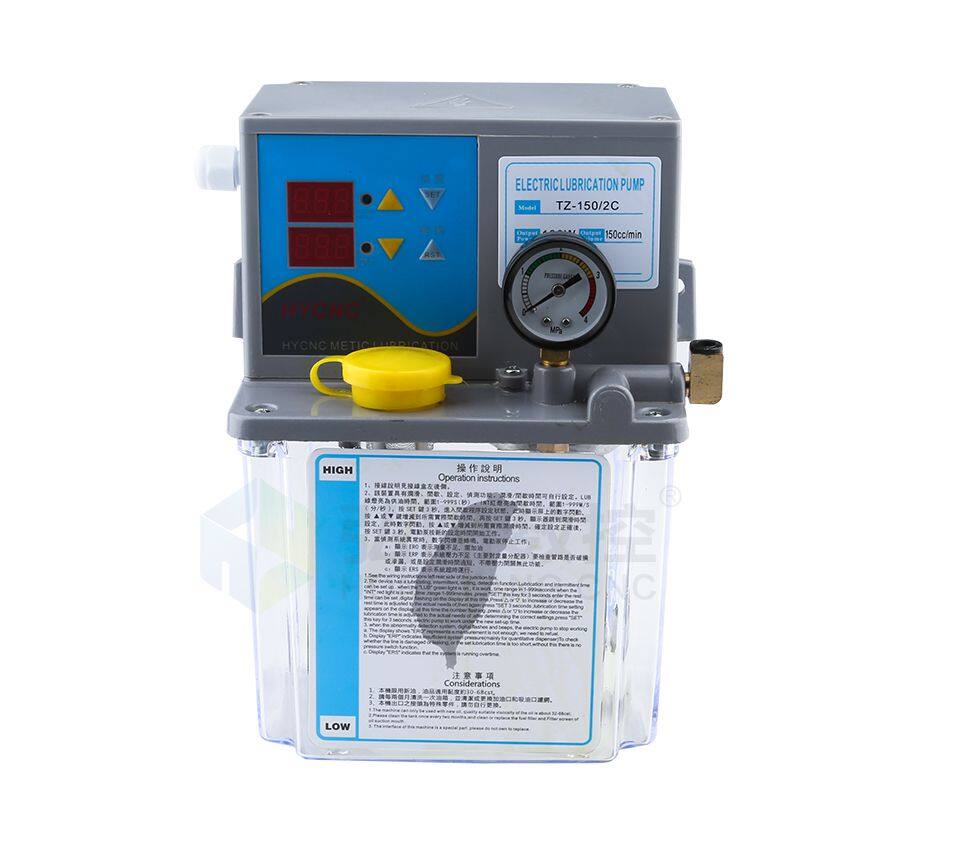

Convenient operation
Indicator Power indicator/Intuitive display of working time and interval time easy to operate
