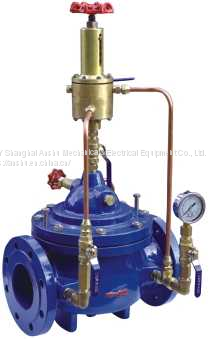

Hydraulic Control Valve Series
USD $1 - $1000
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- SHANGHAI
- T/T L/C
- 200 days
You May Like
Product Details
Place of Origin: | China | Model Number: | Flow control valve 、Pressure relief valve | Material: | Casting |
Application: | General | Structure: | Control | Standard or Nonstandard: | Standard |
Pressure: | High Pressure | Power: | Pneumatic | Port Size: | DN20-DN600 |
Media: | Base | Temperature of Media: | Medium Temperature |
Product Description

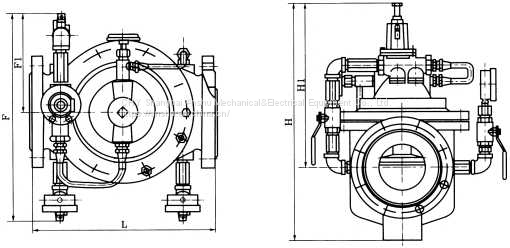

Flow control valve
DN(mm) | Size(mm) | ||||
L | F1 | F | H1 | H | |
20 | 150 | 136 | 292 | 247 | 342 |
25 | 160 | 136 | 292 | 247 | 342 |
32 | 180 | 136 | 292 | 247 | 342 |
40 | 200 | 155 | 330 | 278 | 395 |
50 | 203 | 155 | 330 | 278 | 395 |
65 | 216 | 165 | 350 | 298 | 405 |
80 | 241 | 175 | 365 | 313 | 430 |
100 | 292 | 195 | 410 | 350 | 510 |
125 | 330 | 220 | 455 | 365 | 560 |
150 | 356 | 23 | 475 | 420 | 585 |
200 | 495 | 255 | 530 | 450 | 675 |
250 | 622 | 300 | 623 | 470 | 730 |
300 | 698 | 340 | 700 | 490 | 760 |
350 | 787 | 415 | 840 | 526 | 840 |
400 | 914 | 430 | 880 | 570 | 910 |
450 | 978 | 430 | 880 | 570 | 910 |

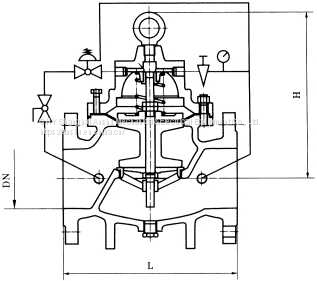

Pressure relief valve
DN(mm) | Size(mm) | DN(mm) | Size(mm) | ||
L | H | L | H | ||
20 | 150 | 245 | 150 | 356 | 495 |
25 | 160 | 272 | 200 | 495 | 570 |
32 | 180 | 291 | 250 | 622 | 666 |
40 | 200 | 311 | 300 | 698 | 733 |
50 | 203 | 332 | 350 | 787 | 807 |
65 | 216 | 355 | 400 | 914 | 888 |
80 | 241 | 370 | 450 | 978 | 978 |
100 | 292 | 413 | 500 | 978 | 1076 |
125 | 330 | 461 | 600 | 1230 | 1185 |
