Home > Industrial Equipment & Components > Valve > Ball Valve > Multifunctional Water Pump Control Valve

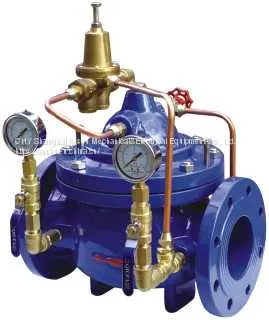

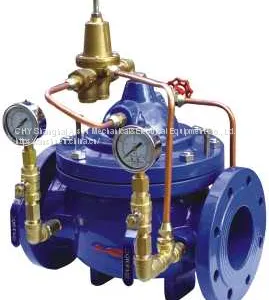

Multifunctional Water Pump Control Valve
US$ 1 - 1000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
Multifunctional Water Pump Control Valve
Material:
Casting
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
200 days
Related Products
Place of Origin
China
Model Number
Multifunctional Water Pump Control Valve
Material
Casting
Application
General
Structure
Control
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Pneumatic
Port Size
DN50-DN1000
Media
Base
Temperature of Media
Medium Temperature

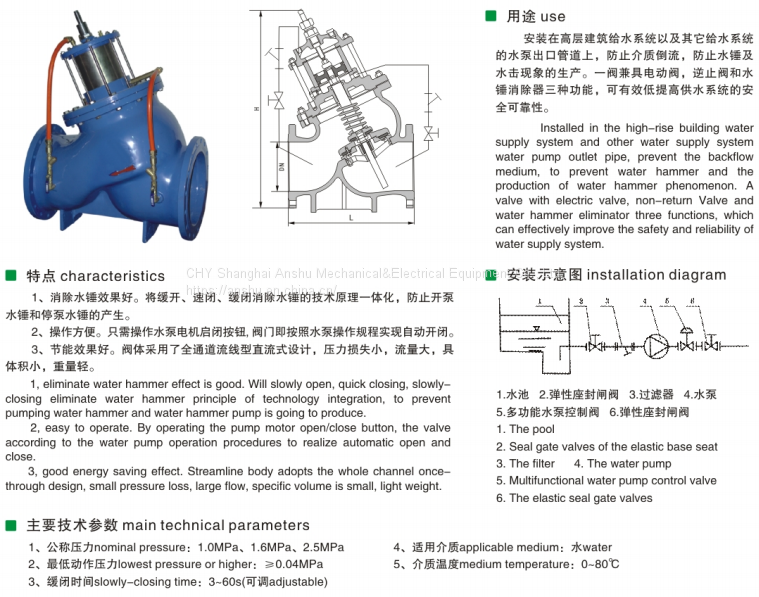

Multifunctional Water PumpControl Valve
| DN | L | H | D | D1 | n-Φd | ||||||
| 1.0MPa | 1.6MPa | 2.5MPa | 1.0MPa | 1.6MPa | 2.5MPa | 1.0MPa | 1.6MPa | 2.5MPa | |||
| 50 | 205 | 293 | 165 | 165 | 165 | 125 | 125 | 125 | 4-Φ18 | 4-Φ18 | 4-Φ18 |
| 65 | 216 | 328 | 185 | 185 | 185 | 145 | 145 | 145 | 4-Φ18 | 4-Φ18 | 8-Φ18 |
| 80 | 250 | 364 | 200 | 200 | 200 | 160 | 160 | 160 | 8-Φ18 | 8-Φ18 | 8-Φ18 |
| 100 | 320 | 418 | 220 | 220 | 235 | 180 | 180 | 190 | 8-Φ18 | 8-Φ18 | 8-Φ22 |
| 125 | 365 | 481 | 250 | 250 | 270 | 210 | 210 | 220 | 8-Φ18 | 8-Φ18 | 8-Φ22 |
| 150 | 415 | 543 | 285 | 385 | 300 | 240 | 240 | 250 | 8-Φ22 | 8-Φ22 | 8-Φ26 |
| 200 | 500 | 673 | 340 | 340 | 350 | 295 | 295 | 310 | 8-Φ22 | 12-Φ22 | 8-Φ26 |
| 250 | 605 | 792 | 395 | 405 | 425 | 350 | 355 | 370 | 12-Φ22 | 12-Φ22 | 12-Φ26 |
| 300 | 698 | 927 | 445 | 460 | 485 | 400 | 410 | 430 | 12-Φ22 | 12-Φ26 | 12-Φ26 |
| 350 | 787 | 957 | 505 | 520 | 555 | 460 | 470 | 490 | 16-Φ22 | 12-Φ26 | 16-Φ30 |
| 400 | 914 | 1188 | 565 | 580 | 620 | 515 | 525 | 555 | 16-Φ22 | 16-Φ26 | 16-Φ33 |
| 450 | 978 | 1219 | 615 | 640 | 670 | 565 | 585 | 600 | 16-Φ26 | 16-Φ30 | 16-Φ36 |
| 500 | 978 | 1256 | 670 | 715 | 730 | 620 | 650 | 660 | 20-Φ26 | 20-Φ30 | 20-Φ36 |
| 600 | 1200 | 1600 | 780 | 840 | 725 | 770 | 20-Φ26 | 20-Φ33 | 20-Φ36 | ||
| 700 | 1450 | 1750 | 895 | 910 | 840 | 840 | 20-Φ30 | 20-Φ36 | |||
| 800 | 1560 | 1900 | 1015 | 1026 | 950 | 950 | 24-Φ30 | 24-Φ36 | |||
| 900 | 1800 | 2100 | 1115 | 1050 | 28-Φ33 | 24-Φ39 | |||||
| 1000 | 2000 | 2400 | 1230 | 1160 | 28-Φ36 | ||||||
