Hydraulic Control Valve Series

Hydraulic Control Valve Series thumbnail-1
Hydraulic Control Valve Series thumbnail-2
Hydraulic Control Valve Series thumbnail-3
Hydraulic Control Valve Series thumbnail-4
Hydraulic Control Valve Series thumbnail-5
Hydraulic Control Valve Series photo-1
Hydraulic Control Valve Series photo-2
Hydraulic Control Valve Series photo-3
Hydraulic Control Valve Series photo-4
Hydraulic Control Valve Series photo-5
US$ 1 - 1000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
Balance differential pressure bypass valve、Emergency shut down valve
Material:
Casting
Contact Supplier Request Quote Chat Now
CHY Shanghai Anshu Mechanical&Electrical Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
200 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin China
Model Number Balance differential pressure bypass valve、Emergency shut down valve
Material Casting
Application General
Structure Control
Standard or Nonstandard Standard
Pressure High Pressure
Power Pneumatic
Port Size DN20-DN600
Media Base
Temperature of Media Medium Temperature

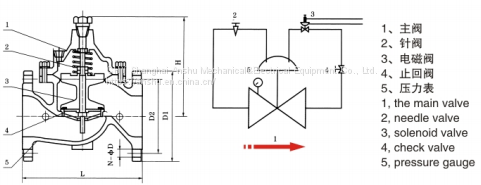

Balance differential pressure bypass valve

DN(mm) D1 D2 N-Φd L H
1.0MPa  1.6MPa 1.0MPa 1.6MPa 1.0MPa 1.6MPa
DN50 165 125 4-Φ19 203 160
DN65 185 145 4-Φ19 216 180
DN80 200 160 8-Φ19 241 200
DN100 220 180 8-Φ19 292 270
DN125 250 210 8-Φ19 330 310
DN150 285 240 8-Φ23 356 320
DN200 340 295

495 370
DN250 405 350 355 8-Φ23 12-Φ23 622 430
DN300 460 400 410 12-Φ23 12-Φ28 698 480
DN350 520 460 470 12-Φ23 16-Φ28 787 525
DN400 580 540 525 16-Φ28 16-Φ31 914 580
DN450 640 565 585 20-Φ25 20-Φ31 978 635
DN500 715 620 650 20-Φ28 20-Φ34 978 690
DN600 810 840 725 770 20-Φ31 20-Φ37 1295 830


Emergency shut down valve

DN(mm) Size(mm)
L F1 F H1 H
20 150 136 229 247 342
25 160 136 229 247 342
32 180 136 229 247 342
40 200 155 330 278 395
50 203 155 330 278 395
65 216 165 350 298 405
80 241 175 365 313 430
100 292 195 410 350 510
125 330 220 455 365 560
150 356 230 475 420 585
200 495 255 530 450 675
250 622 300 623 470 730
300 698 340 700 490 760
350 787 415 840 526 840
400 914 430 880 570 910
450 978 430 880 570 910
500 978 410 780 750 1110
600 1230 456 888 850 1286























































































































Product Tags: valve , Control Valve , Hydraulic Control Valve , Balance differential pressure bypass valve , Emergency shut down valve
