Key Specifications
Get Latest Price
Place of Origin:
China
Model Number:
Hydraulic electric control valve 、Water pump control valve
Material:
Casting
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
200 days
Related Products
Place of Origin
China
Model Number
Hydraulic electric control valve 、Water pump control valve
Material
Casting
Application
General
Structure
Control
Standard or Nonstandard
Standard
Pressure
High Pressure
Power
Pneumatic
Port Size
DN20-DN600
Media
Base
Temperature of Media
Medium Temperature

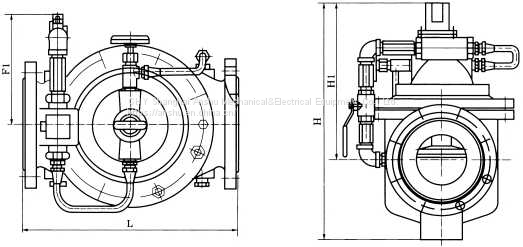

Hydraulic electric control valve
| DN(mm) | Size(mm) | |||
| L | F1 | H1 | H | |
| 20 | 150 | 136 | 269 | 342 |
| 25 | 160 | 136 | 269 | 342 |
| 32 | 180 | 136 | 269 | 342 |
| 40 | 200 | 155 | 300 | 395 |
| 50 | 203 | 155 | 300 | 395 |
| 65 | 216 | 165 | 288 | 385 |
| 80 | 241 | 175 | 310 | 420 |
| 100 | 292 | 195 | 340 | 500 |
| 125 | 330 | 220 | 380 | 540 |
| 150 | 356 | 230 | 410 | 575 |
| 200 | 495 | 255 | 440 | 665 |
| 250 | 622 | 300 | 460 | 720 |
| 300 | 698 | 340 | 480 | 750 |
| 350 | 787 | 415 | 516 | 830 |
| 400 | 914 | 450 | 560 | 900 |
| 450 | 978 | 450 | 560 | 900 |
| 500 | 978 | 410 | 750 | 1110 |
| 600 | 1230 | 456 | 850 | 1286 |

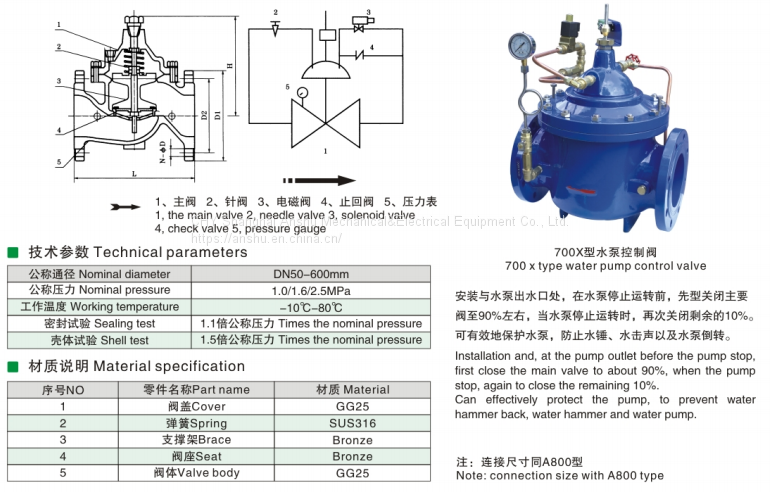

Water pump control valve
