Balanced Globe Valve
US$ 1 - 1000
/ Set
1 Set(Min. Order)
- SHANGHAI
- T/T L/C
- 20 days
You May Like
Product Details
| Place of Origin | China | Model Number | J46W-25P | |
| Material | Casting | Application | General | |
| Structure | Stop | Standard or Nonstandard | Standard | |
| Pressure | High Pressure | Power | Pneumatic | |
| Port Size | DN200-DN400 | Media | Base | |
| Temperature of Media | Medium Temperature |
Product Description

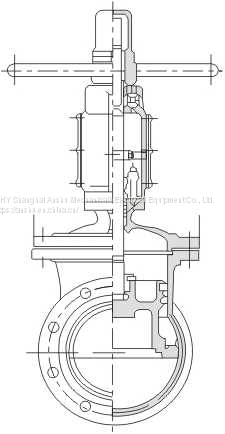

Balanced Globe valve

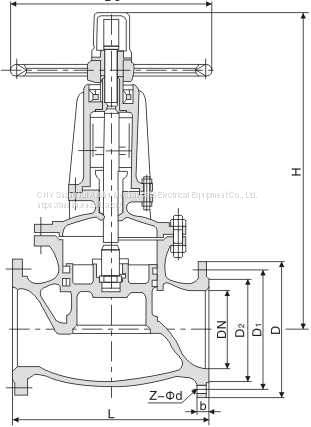

| Type | DN | PN2.5MPa | WT (kg) | ||||||||
| L | D | D1 | D2 | b | Z-Φd | H | D0 | ||||
| J46W-25P | 250 | 730 | 425 | 370 | 332 | 36 | 12-Φ30 | 900 | 560 | 370 | |
| 300 | 850 | 485 | 430 | 390 | 40 | 16-Φ34 | 1052 | 720 | 540 | ||
| 400 | 1100 | 610 | 550 | 505 | 48 | 16-Φ34 | 1168 | 800 | 872 | ||
| Type | DN | PN4.0MPa | WT (kg) | ||||||||
| L | D | D1 | D2 | D6 | b | Z-Φd | H | D0 | |||
| J46W-40P | 250 | 730 | 445 | 385 | 345 | 313 | 42 | 12-Φ34 | 900 | 560 | 431 |
| 300 | 850 | 510 | 450 | 400 | 364 | 46 | 16-Φ34 | 1052 | 720 | 626 | |
| 400 | 1100 | 655 | 585 | 535 | 474 | 58 | 16-Φ41 | 1168 | 800 | 980 | |
