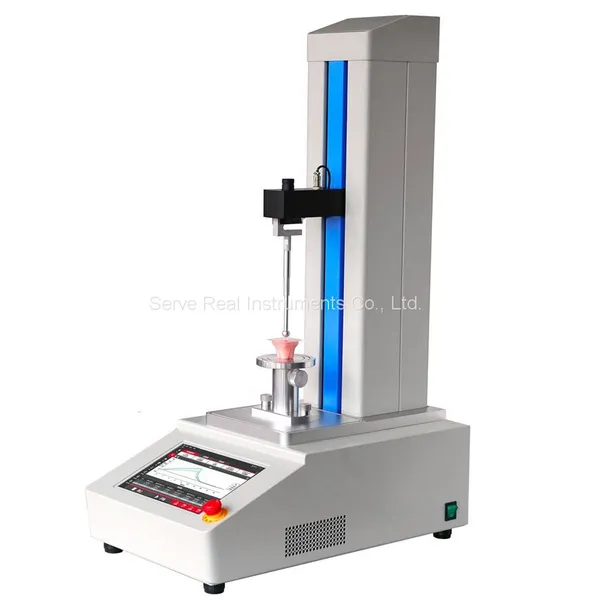

The TA-20HD can accurately quantify the freezing strength, hardness, brittleness, tenderness, elasticity, toughness, cohesion, cohesion, brittleness, chewiness, recovery, tensile strength, burst strength, shear strength of samples , compressive strength, penetration strength, creep properties, relaxation properties and many other physical properties. It is widely used in the physical property analysis of various foods, medicines, cosmetics, and other industrial products.
Features
Embedded with a 10-inch industrial HD touch screen with a resolution of 1280×800. It can be controlled by touch or by mouse and keyboard.
Comes standard with HDMI high-definition interface, supports dual screens, and can be connected to an external monitor or projector.
Rich interfaces: 1 RS232 serial port, 1 Gigabit Ethernet port, 1 HDMI port, 4 USB ports, 2 of which are USB3.0.
With functions of measurement, correction, restoration, automatic repair or error correction of accuracy.
The embedded HD camera module can record the whole process of the test of important samples, and store it in a traceable database together with other test data of the test.
The force sensing element can be replaced quickly and safely. Through the conversion of the force sensing element, the detection range can be changed, and the sensing accuracy can be changed to adapt to different sample analysis.
Test playback: The software automatically records the whole process of the test (including synchronous video and photo screenshots), and provides intelligent retrieval functions under various conditions. Experiments can be traced back to any period for data restoration, curve plotting, and synchronized video playback to view and analyze the details of the retrieved experiments.
The system can display three curves of power-time, power-distance, and distance-time. The curve includes a ruler, which can be zoomed, text or symbols can be marked, colors can be changed, key data points can be marked, and the area of the selected map area can be automatically calculated.
The system supports users to edit the test report by themselves, and the file format and test items support adding and deleting.
Multiple protection functions, emergency braking, upper and lower limit control, power induction element overload protection (customizable over-standard warning settings), detection data encryption.
Test modes available: Timing, Positioning, Constant Load, Single Cycle, Multi-cycle, Compression, Piercing, Shearing, Bending, Extrusion, Adhesion, Compression Hold, Full Texture, Rupture, Fracture, Relaxation Properties, Creep features, custom modes, precision metering, and more.
Three levels authority management function, multi-user, ordinary users can add unlimited times.
The software can simultaneously select the current or historical 5 test results, including function curve, synchronous recording, etc., for comparison and analysis.
Friendly operation interface is, clear experimental process, easy operation
Specifications
Load force range |
20Kg (optional 1, 2, 5, 10, 20, 25, 50Kg can be quickly replaced by users) |
Load sensor can be equipped |
1, 2, 5, 10, 20, 25, 50Kg, others optional |
Load force detection accuracy |
Better than 0.01% |
Load force resolution |
0.0001g |
Displacement range |
0~410mm |
Displacement resolution |
0.0001mm |
Movement speed range |
0.001mm/s~50mm/s, ≤±0.1% |
Data collection rate |
Max 4800hz, 200,500,1500,2000,3000hz optional |
Instrument protection function |
emergency braking, upper and lower limit control, power sensor unit overload protection, detection data encryption |
Dimensions |
L555 × W330 × H 885 mm |
Weight |
29Kg |
