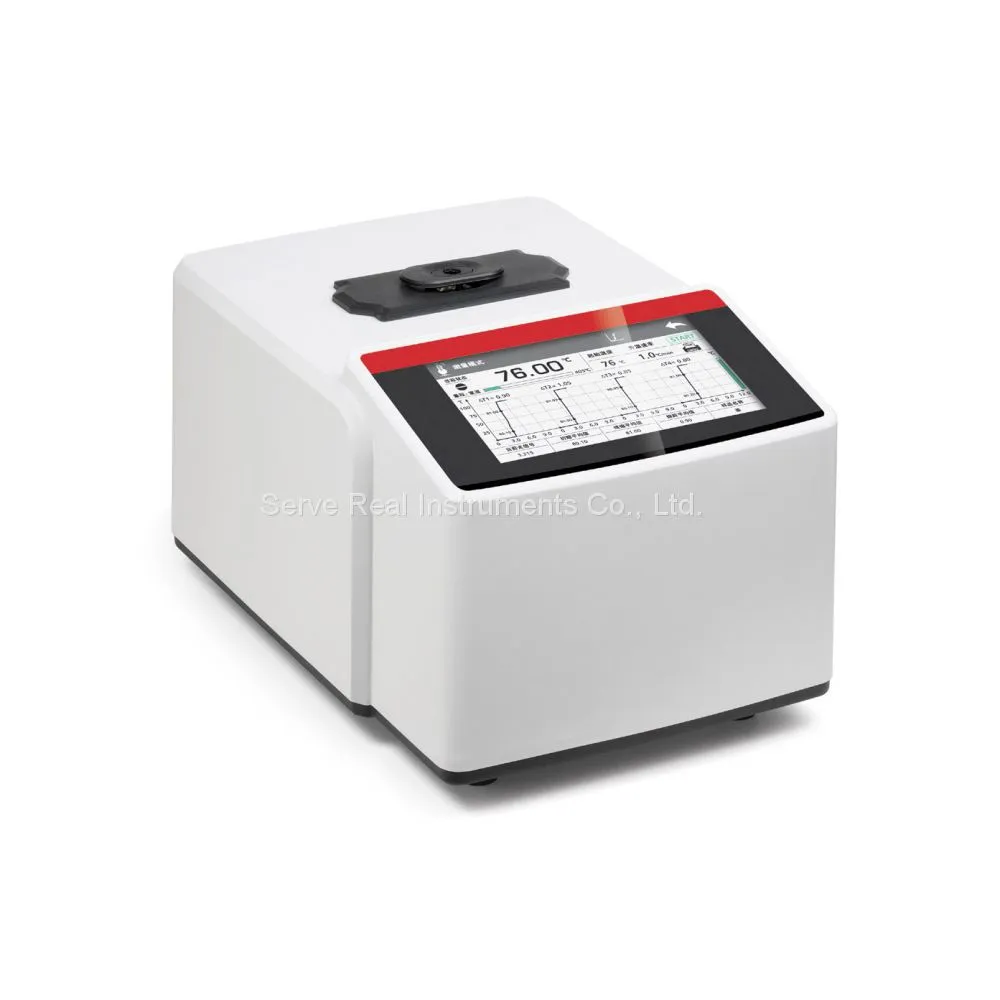

LCD Melting Point Apparatus Drug Test Instrument

US$ 1000 - 2000 MOQ: 1 Set

Key Specifications

Brand Name:

SRI

Place of Origin:

China

Model Number:

MPA-1A

Wuxi Serve Real Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI, SHENZHEN,NINGBO, QINGDAO

Delivery Detail:

7 days

Brand Name SRI

Place of Origin China

Model Number MPA-1A

Features

Fast and economical, high-efficiency automatic and reliable melting point determination

LCD liquid crystal display, simple and intuitive

Numeric keyboard input, easy to operate

Unique digital temperature control technology, delicate temperature control

Stepless speed regulation of heating rate

Support one-point, two-point, three-point temperature correction

USB connected to computer, RS232 interface connected to printer

Capillary tube method, in line with Pharmacopoeia regulations

Specifications

Model	MPA-1BE
Instrument level	Level 0.5
Detection method	Fully automatic detection
Loading method	capillary method
Measuring range (temperature: °C)	Room temperature~400℃
Resolution (℃)	0.01℃
Heating rate (℃/min)	0.1℃~20℃/min stepless speed change
Heating rate error	≦5%
Measurement accuracy (℃)	±0.2℃( 0.1°C (heating rate is 0.2°C/min)
Measurement repeatability	0.2°C (heating rate is 1°C/min)
Heating/cooling time	≤4mins/6mins
Number of samples processed	1
Standard capillary specifications	Outer diameter 1.4, inner diameter 1.0, length 90 mm
Sample filling height	3mm~5mm
LCD screen parameters	4.3 inch LCD
Print function	have
Interface	USB communication port + RS232 print port
Measurement report	Support printing or saving on PC via APP
User management	without
Predefined measurement methods	without
Power and Power	220±10%V AC
Dimensions	50/60Hz/100W
Total weight	Approx. 4.5kg
