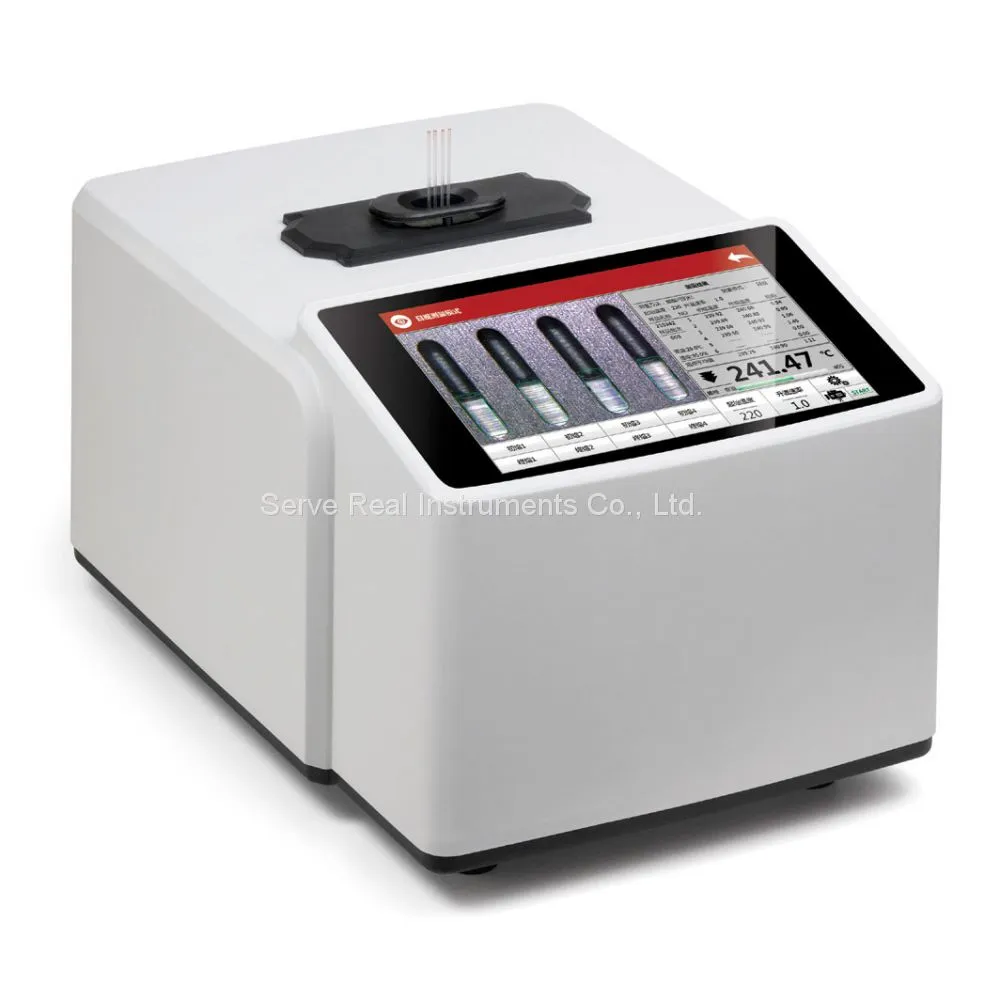

Touch Screen Melting Point Apparatus Drug Test Instrument

US$ 1000 - 2000 MOQ: 1 Set

Key Specifications

Brand Name:

SRI

Place of Origin:

China

Model Number:

MPA-1A

Wuxi Serve Real Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI, SHENZHEN,NINGBO, QINGDAO

Delivery Detail:

7 days

Brand Name SRI

Place of Origin China

Model Number MPA-1A

Features

7-inch high-resolution color touch screen, real-time display of melting curve

Touch operation, easier interaction

Fast economical and efficient automatic measurement

Capillary tube method, in line with Pharmacopoeia regulations

Support one-point, two-point, three-point temperature correction

32 custom measurement methods can be created to quickly recall working parameters

Two-level user management, support password, permission editing

USB connected to computer, RS232 interface connected to printer

Automatically generate and store measurement reports for easy data traceability

Specifications

Model	MPA-2A	MPA-2B
Instrument level	Level 0.2
Detection method	Fully automatic detection
Loading method	capillary method
Measuring range (temperature: °C)	Room temperature~400℃
Resolution (℃)	0.01℃
Heating rate (℃/min)	0.1℃~20℃/min stepless speed change
Heating rate error	≦5%
Measurement accuracy (℃)	±0.2℃(
Measurement repeatability	0.1°C (heating rate is 0.2°C/min) ;0.2°C (heating rate is 1°C/min)
Heating/cooling time	≤4mins/6mins	≤9mins/6mins(50~400℃)
Number of samples processed	1	4
Standard capillary specifications	Outer diameter 1.4, inner diameter 1.0, length 90 mm
Sample filling height	3mm~5mm
LCD screen parameters	7-inch high-resolution color touch screen, 1024x600 high resolution
On-screen display	Real-time display of melting curve
Print function	have
Interface	USB communication port + RS232 printing port + U disk interface
Measurement report	Automatically generated and stored or saved on PC via APP
User management	Two-level user management: administrator + common user
Predefined measurement methods	32 types can be created
Power and Power	220±10%V AC50/60Hz/120W
Dimensions	345×245×215mm (L×W×H)
Total weight	4.5kg
