Help CenterVideo Melting Point Apparatus Drug Test Instrument
Related Products

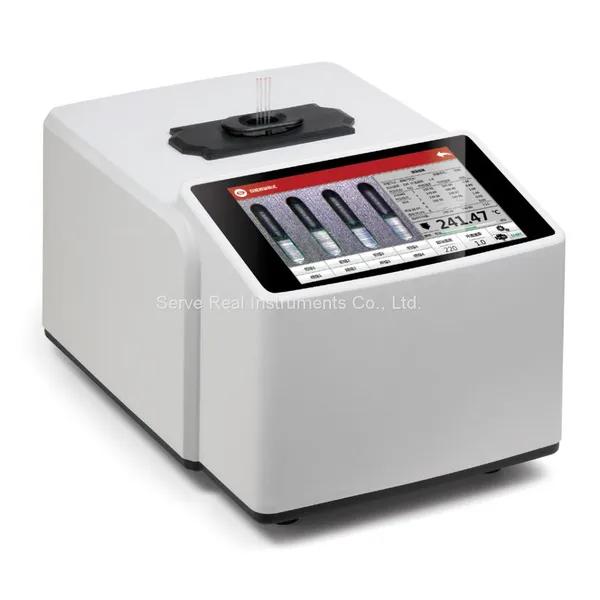

The second-generation image analysis video melting point instrument adopts the leading machine vision image analysis AUTO-ROI® technology to gain insight into all the details of the melting process of samples, and automatically judge the melting point, realizing a new leap in technology.
Specifications
Model |
MPA-2X |
MPA-2XE |
Instrument level |
0.2 |
|
Detection method |
HD video image analysis AUTO-ROI® automatic measurement + visual inspection |
|
Loading method |
capillary method |
|
Measuring range |
Room temperature~320℃ |
Room temperature~400℃ |
Resolution |
0.01℃ |
|
Heating rate |
0.1℃~20℃/min stepless speed change |
|
Heating rate error |
≦5% |
|
Measurement accuracy (℃) |
±0.2℃( |
|
Measurement repeatability |
0.1°C (heating rate is 0.2°C/min) 0.2°C (heating rate is 1°C/min) |
0.1℃(heating rate is 0.5°C/min) 0.2℃(heating rate is 1°C/min) |
Heating/cooling time |
≤9mins/6mins(50~400℃) |
|
Number of samples processed |
4 |
6 |
Standard capillary specifications |
Outer diameter 1.4, inner diameter 1.0, length 90 mm |
|
Sample filling height |
3mm~5mm |
|
LCD screen parameters |
7-inch high-resolution color touch screen, 1024x600 high resolution |
|
On-screen display |
Real-time display of melting curve |
|
Video recording |
Without |
1000 minutes, optional extended to 3000 minutes |
Print function |
have |
|
Interface |
USB+RS232+Ethernet, optional WIFI |
|
Data traceability |
Have |
|
Conforms to specifications |
National Pharmacopoeia, FDA 21 CFR Part 11, GMP/GLP |
|
Measurement report |
Manual/automatic generation and storage, customizable report format |
|
User management |
Administrator + 32 ordinary users Independent password, multiple authorizations can be increased or decreased, support handwritten electronic signature, measurement methods and measurement reports are managed by user groups |
|
Predefined measurement methods |
64 |
128
|
Power and Power |
220±10%V AC, 50/60Hz/150W |
|
Dimensions |
L345×W245×H215mm |
|
Total weight |
Approx 5kg |
|
