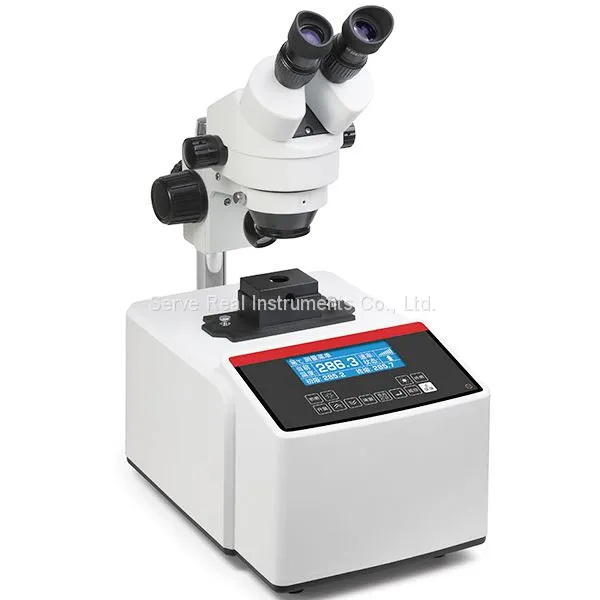

The melting point of a substance is the temperature at which the substance changes from a solid state to a liquid state. In the field of organic chemistry, melting point determination is a basic means to identify the nature of substances, and it is also one of the important methods for purity determination. Therefore, the melting point tester has an important position in the chemical industry, medical experiments, and drug research, and is an essential instrument for the production of drugs, spices, fuels and other organic crystalline substances.
Features
LCD liquid crystal display, simple and intuitive
Membrane key input, easy to operate
Unique digital temperature control technology, delicate temperature control
40X~100X magnification is adjustable to ensure the observation of very small samples
Support one-point, two-point, three-point temperature correction
USB connected to computer, RS232 interface connected to printer
Dual use for capillary tube method and cover glass (hot stage method)
Specifications
Model |
MPA-1A |
MPA-1AE |
|
Instrument level |
Level 1.0 |
||
Detection method |
Observe the melting process through a binocular microscope |
||
Loading method |
Capillary method + hot stage method |
||
Measuring range (temperature: °C) |
Room temperature3~20℃ |
Room temperature~400℃ |
|
Resolution (℃) |
0.1℃ |
||
Heating rate (℃/min) |
1.0, 3.0, 5.0, 10.0/min, full speed |
||
Heating rate error |
≦10% |
||
Measurement accuracy (℃) |
±0.8℃( |
||
Measurement repeatability |
0.5°C (heating rate is 1.0°C/min) |
||
Heating/cooling time |
≤8mins/8mins(50~320℃) |
≤4mins/6mins |
|
Number of samples processed |
1 |
||
Standard capillary specifications |
Outer diameter 1.4, inner diameter 1.0, length 90 mm |
||
Sample filling height |
3mm~5mm |
||
LCD screen parameters |
4.3 inch LCD |
||
Cover glass size |
18×18×0.17mm |
||
Microscope type |
binocular |
||
Optical magnification |
40~100X |
440~1100X |
|
Print function |
have |
||
Interface |
USB communication port + RS232 print port |
||
Measurement report |
Support printing or saving on PC via APP |
||
User management |
without
|
||
Predefined measurement methods |
without
|
||
Power and Power |
220±10%V AC50/60Hz/100W |
||
Dimensions |
Length 400mm×width 245mm×height 550mm (adjustable) |
||
Total weight |
Approx 8kg |
||
