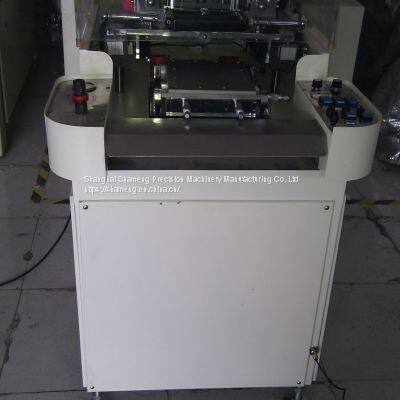

High Precision Small Screen Printing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
45 days
Related Products
Place of Origin
China
After-sales Service Provided
Engineers available to service machinery overseas
Condition
New
Automatic Grade
Semi-Automatic
Color & Page
Single Color
■SM-150 Standard specification
| Max. printing area | 150×150mm |
|---|---|
| Repeatability | below ±0.01mm |
| Max. printing speed | 5.5 sec/sheet(excluding feeding time) |
| Stencil | |
| Exclusive stencil frame | 320×320×17mm(Aluminum casting) |
| mounting | Front side, slide input |

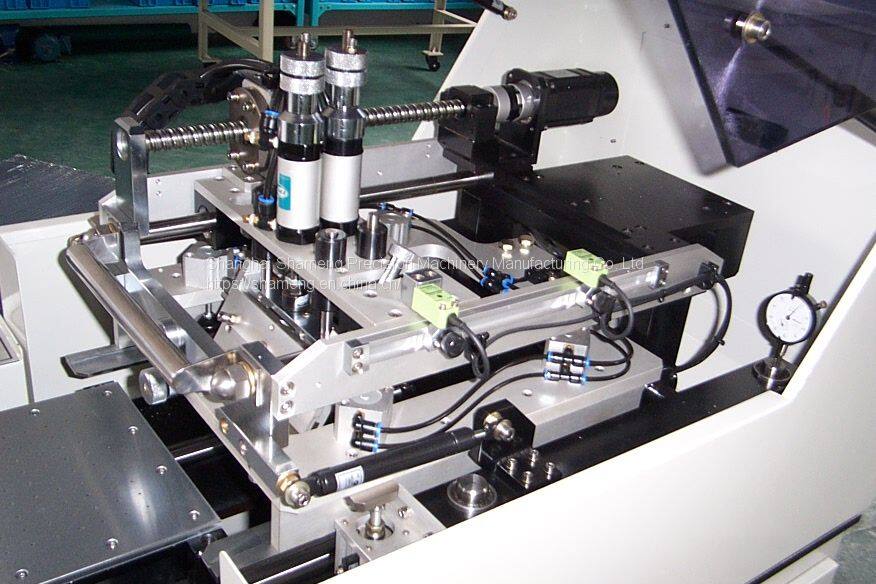

| Squeegee and flood coater | |
| Squeegee | thickness 9mm Urethane rubber +exclusive holder |
| Squeegee mounting | 1 location knob fixing |
| Squeegee height adjustment | 20mm(screw type, with lock) |
| Squeegee pressure | Air cylinder center pressure(with regulator) |
| Squeegee angle | 60～90° |
| Flood coater | Exclusive for SUS made |
| Flood coater mounting | 1 location knob fixing |
| Flood coater height adjustment | 20mm(screw type, with lock) |
| Flood coater pressure | Air cylinder center pressure |
| Carriage of squeegee and flood coater | |
| Driving | Ball screw +AC servo+LM guide |
| Stroke adjustment | Digital input |
| Speed adjustment | Digital input 0～350mm/sec |
| Upper side frame opening | 50° |
| Clearance | |
| Column | 4 pillar type |
| Driving | motor |
| Amount | 0～20mm resolution 0.1mm |
| Table | |
| Size | 230(W)×280(L)mm |
| Driving | Air cylinder +LMguide |
| location micro adjustment | X,Y direction ±2.5mm |
| Vacuum | Ring blower 200W |
| Control panel(Touch panel type) | |
| Display | Setting squeegee and flood coater speed |
| Setting squeegee and flood coater stroke | |
| Setting clearance amount | |
| Printing condition registration for different material 130Channel | |
| Machine weight | 170kg |
| Machine size | 780(W)×790(L)×1100(H)mm |
| Electricity | 200V 3Phase 15A |
| Compress air | 0.5MPa |

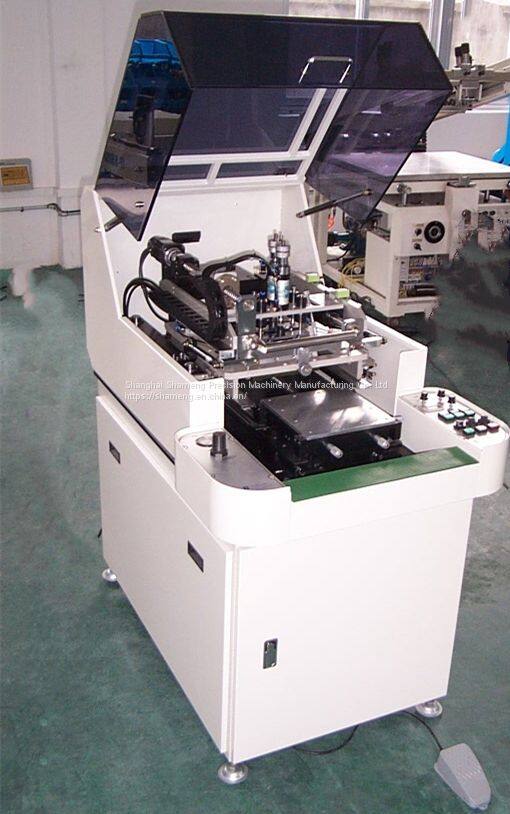

SM-150 is small area screen printer, developed for the functionable printing such as silver paste. Maintaining the flexible printing speed, Cube support squeegee speed adjustment from fine to high speed, at the same time other mechanical movements tact time is
shorten to maintain high speed. Material changeover time is also consider in order to minimize printing time. Precision printing machine with high productivity.
Compact body specially design for tight spot such as laboratory, enable data management for screen printing. Your excellent partner for R&D.
