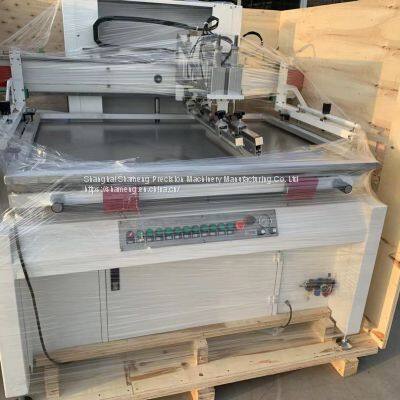

Help CenterTwo Post Semi Automatic Screen Printing Machine
Related Products
-
High-Precision and High-Tension Screen Stretching MachineNegotiableMOQ: 1 Set -
Fully Automatic Printing Machine for Thin FilmsNegotiableMOQ: 1 Set
-
High Precision Small Screen Printing MachineNegotiableMOQ: 1 Set
-
Infrared DryerNegotiableMOQ: 1 Set
-
CCD Screen Printing MachineNegotiableMOQ: 1 Set
(Specification of Equipment)
SM-450TP | SM-560TP | SM-1580TP | |
Max. Printing Area | 400×500mm | 500×600mm | 800×1200mm |
Max. Frame Size (Outer) | 800×900mm | 900×1,000mm | 1100×1500mm |
Printing Table Size | 500×650mm | 600×800mm | 1000×1400mm |
Max. Printing Speed | 900 Sheet/h | 850 Sheet/h | 600 Sheet/h |
Off Contact | 0 ~ 20mm | 0 ~ 20mm | |
Squeegee Speed | 100 ~ 600 mm/sec | 100 ~ 600 mm/sec | |
Air Consumption | 20ℓ/min | 20ℓ/min | |
Air Source | 6 kg/cm2 | 6 kg/cm2 | |
Electric Source | 380(220)V×3p×0.5KW | 380(220V)×3p×1.2KW | |
Dimension (W×D×H) | 800×1,650×1,400mm | 950×1,700×1,400mm | 1,350×1,900×1,400mm |
※ YP-TP is table fixing type. YP-TH is table In-Out type.
※ It is possible to change the specification of equipments by customer’s requirement.
(Characteristics of Equipment)
It is suitable equipment for fast and precise printing, the screen plate works perpendicularly.
ü The durability of machine is excellent because of using high-precise spare parts.
ü Honey Comb was used the inside of Al Frame for evenness and durability of working table, and the evenness is excellent and light because Stainless Steel was used.
ü The screen plate works perpendicularly, so coating is uniform and it can reduce the consumption of ink.
ü It is easy to clamp the frame by pneumatic type.
ü It is possible to adjust coating speed, stroke, squeegee angle and printing pressure etc, and it is designed specially for worker’s convenience.
ü It is very easy to change to various printing method because of using PLC program of operation of equipment
(Application of Equipment)
FPC, Membrane s/w, Metal and paper, Glass, Wood, Acrylic and sticker etc.
