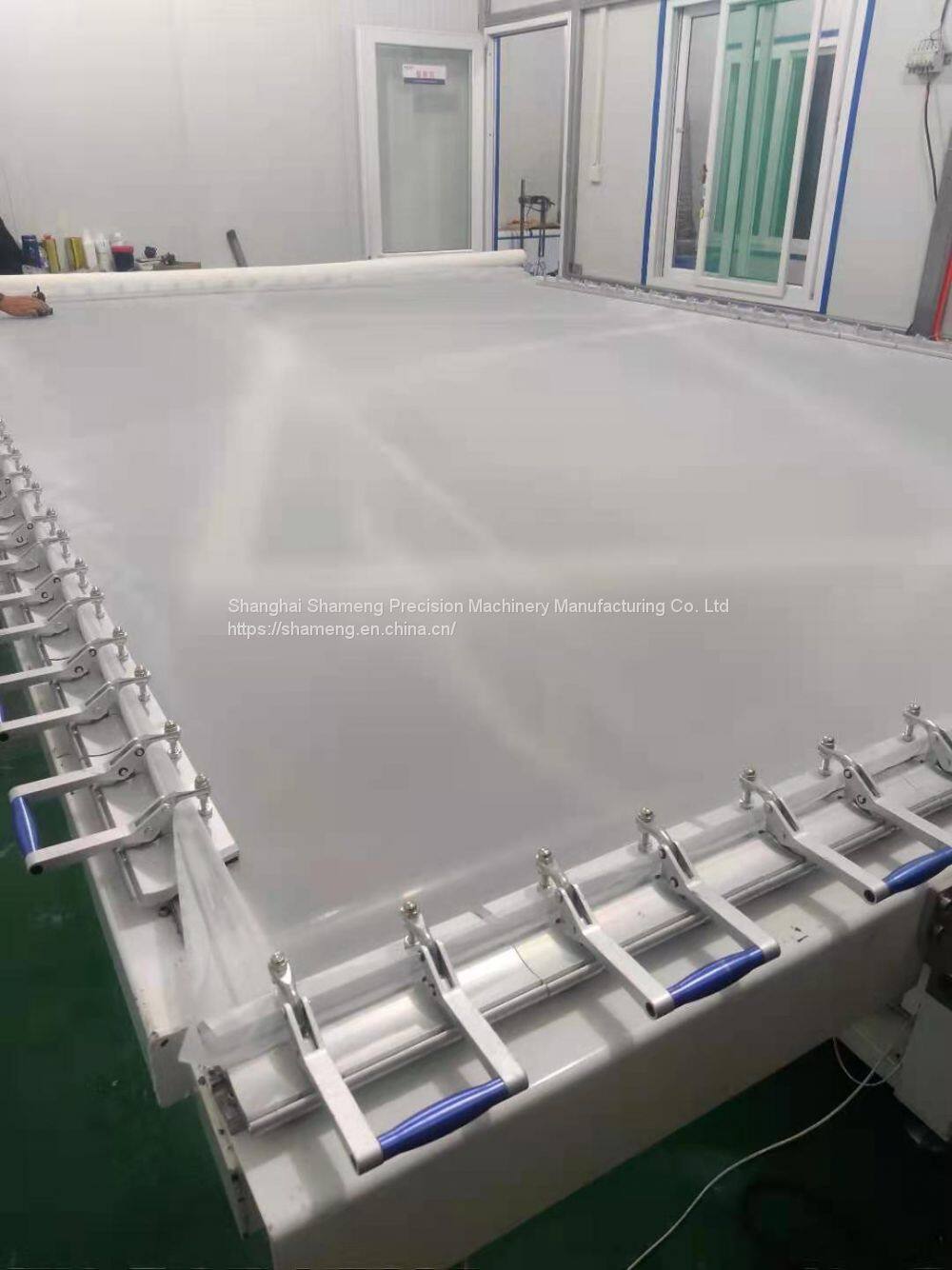

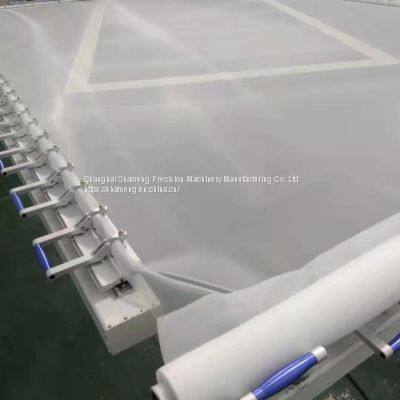

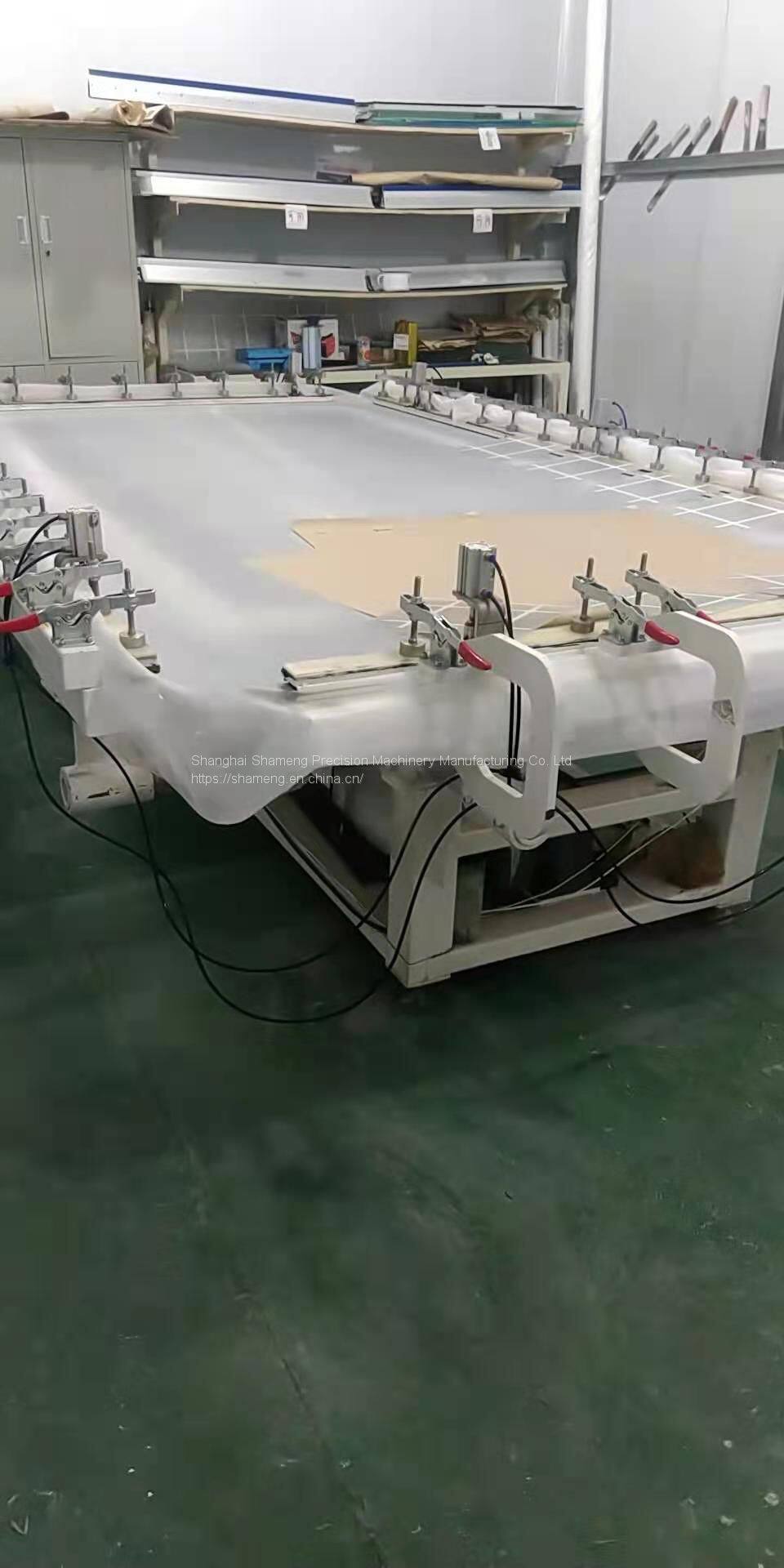

High-Precision and High-Tension Screen Stretching Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Condition:
New
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
45 days
Related Products
Place of Origin
China
Condition
New
Automatic Grade
Automatic
Color & Page
Single Color
(Specification of Equipment)
SM-1824M |
SMT-1030M |
||
Working Table Size |
3000×4100mm |
1,000×3,000mm |
|
Max. Tension Frame Size |
1,000×1,000mm - 2EA |
600×600mm - 2EA |
|
Motor |
X |
1/2HP × 1/30 |
|
Y |
1/2HP × 1/30 |
||
Up/Down |
1/2HP × 1/30 |
||
Tension Length |
X |
0 ~ 1,000mm |
|
Y |
0 ~ 500mm |
||
Up/Down |
0 ~ 120mm |
||
Electric Source |
380(220v) |
||
■Features
●Automatically release unbalance load for vertical and horizontal direction, enables low stress rectangular tenisioning. Simple switch control for frame size changing.
●Simple frame sticking with frame lifting mechanism.
●Independent vertical and horizontal motor for strong tensioning against stainless steel screen and polyester screen
●Remote control operation panel convenience for large frame tensioning.
●Other order made size can be manufacture.
