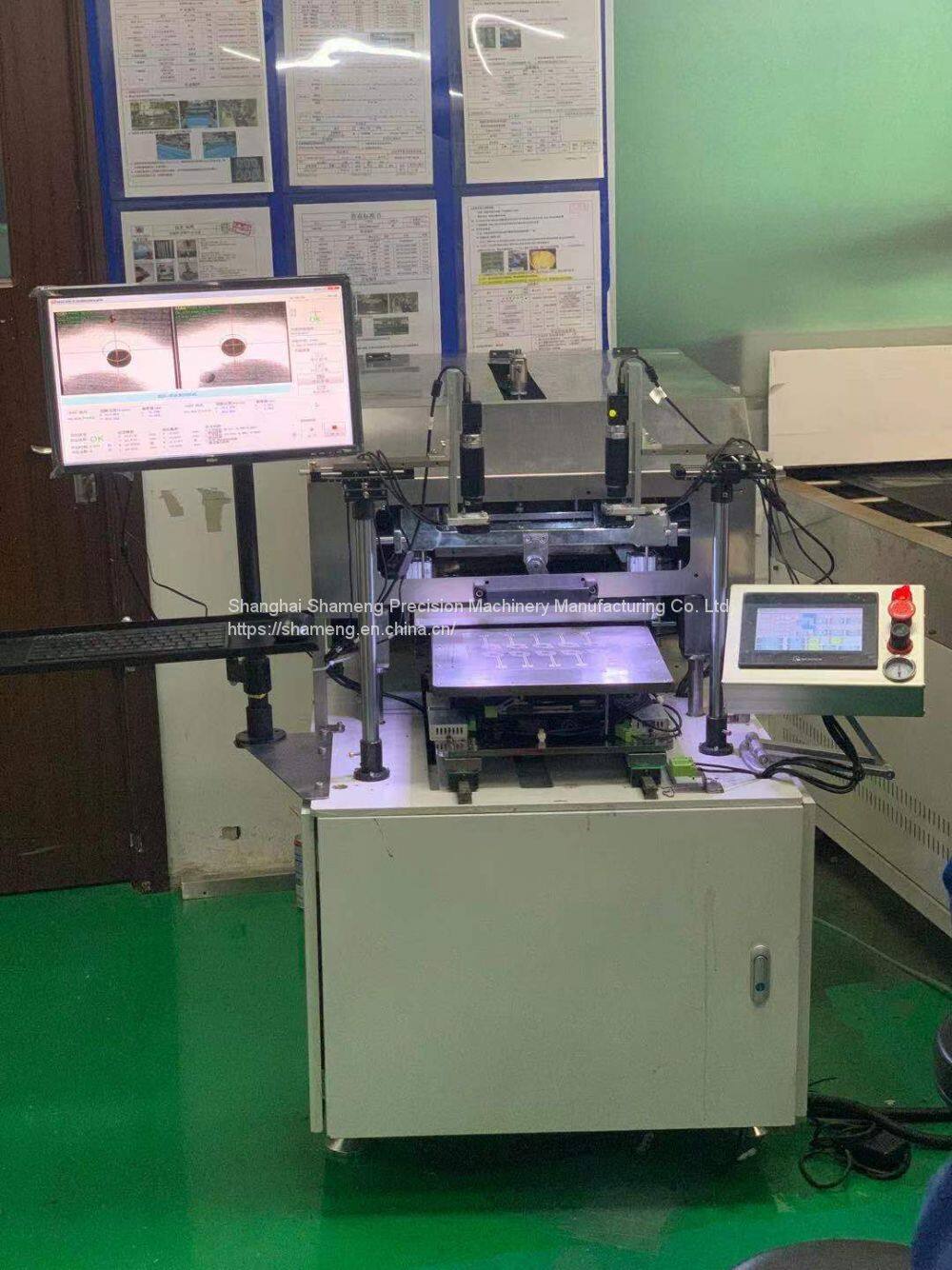

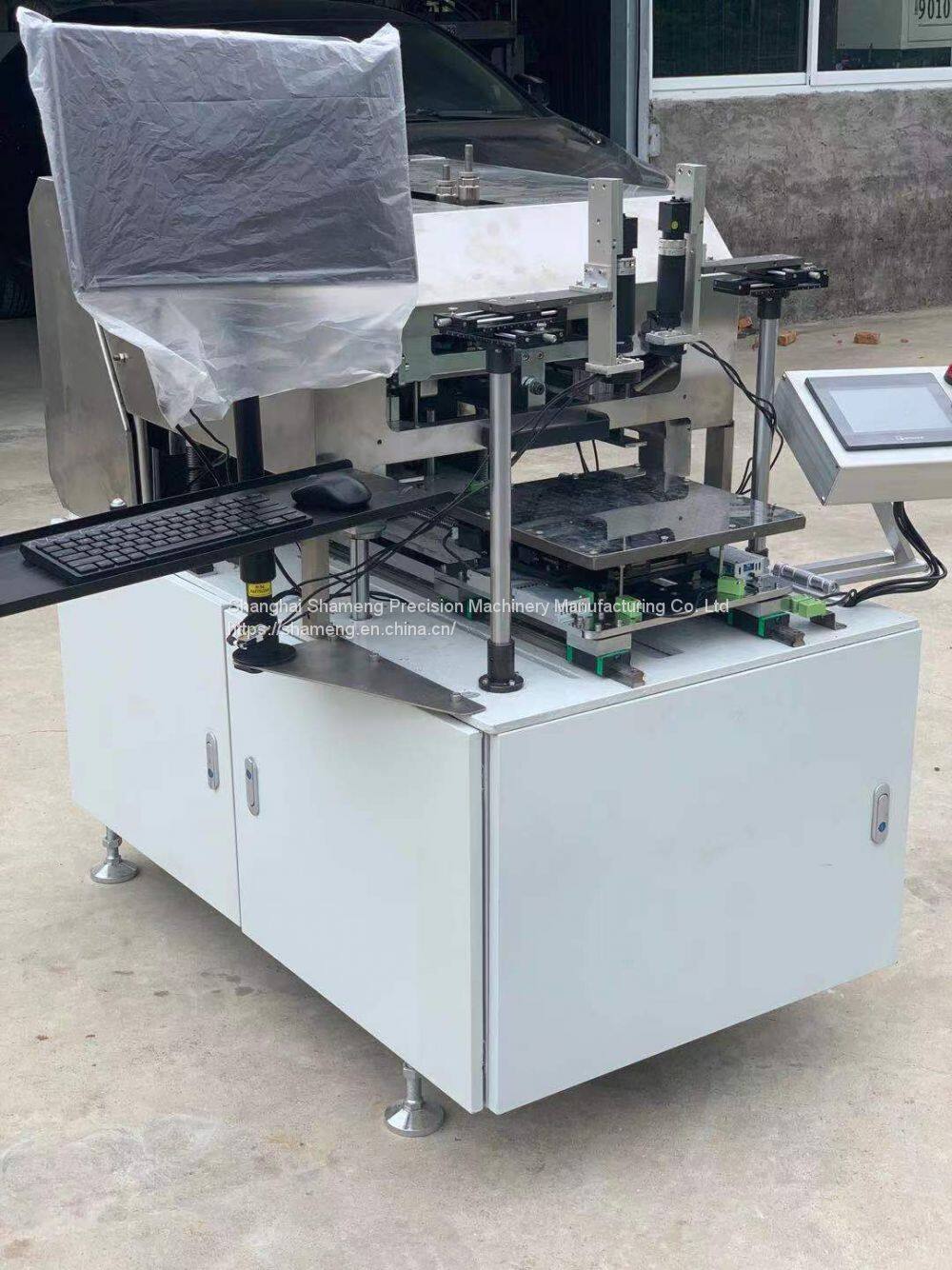

Help CenterCCD Screen Printing Machine
Related Products
-
Four Post Screen Printing MachineNegotiableMOQ: 1 Set -
High-Precision and High-Tension Screen Stretching MachineNegotiableMOQ: 1 Set
-
Fully Automatic Printing Machine for Thin FilmsNegotiableMOQ: 1 Set
-
High Precision Small Screen Printing MachineNegotiableMOQ: 1 Set
-
Automatic Emulsion Coating MachineNegotiableMOQ: 1 Set
(Specification of Equipment)
SMP-300S |
|
Max. Printing Area |
300×300mm |
Printing Table Size |
400×400mm |
Max. Frame Size |
4200×420mm (Casting) |
Printing Pressure |
0 ~ 60 kg/f |
Max. Printing Speed |
400 Sheet/h |
Air Consumption |
15ℓ/min |
Air Source |
6 kg/cm2 |
Electric Source |
380(220)V×1p×2KW |
Dimension (W×D×H) |
640×1,300×1,600mm |
Weight |
Approx. 400kg |
Features
・ High speed printing tact time 2.5 sec
・ Table with high precision, high rigidity, high efficiency and excellent control
・ Space saving(simultaneous operation of loading, alignment, printing and unloading)
・ Location registration with SHAMENG Image Processing 「MIP」
・ User friendly with CCD Screen Printing Machine(see Cube series catalog)
・ Peel-off with AC servo motor
・ Camera movement with AC servo motor
・ Unique alignment method with 3 axis AC servo motor
・ Support full automatic
・ Various options available
・ Can be purchase without MIP unit
・ Please contact us for other printing size
