Home > Packaging & Printing > Printing Machinery > Screen Printer > Semi Automatic Screen Printing Machine

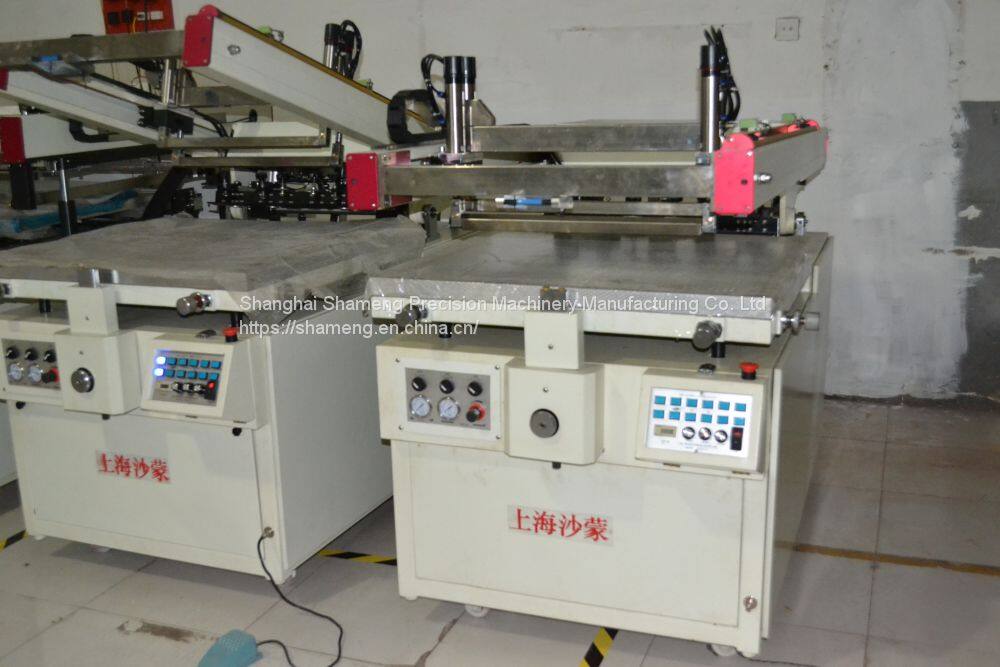

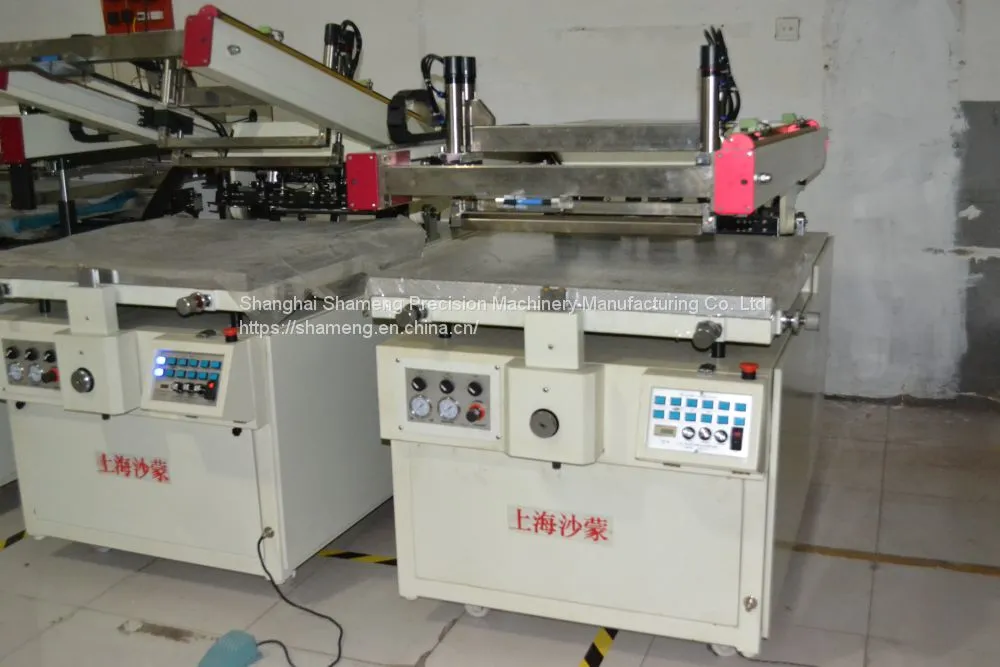

Semi Automatic Screen Printing Machine

Shanghai Shameng Precision Machinery Manufacturing Co. Ltd

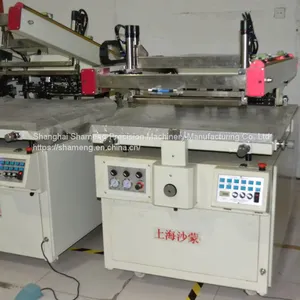

Semi Automatic Screen Printing Machine thumbnail-1

Semi Automatic Screen Printing Machine thumbnail-2

Semi Automatic Screen Printing Machine thumbnail-3

Semi Automatic Screen Printing Machine thumbnail-4

Semi Automatic Screen Printing Machine photo-1

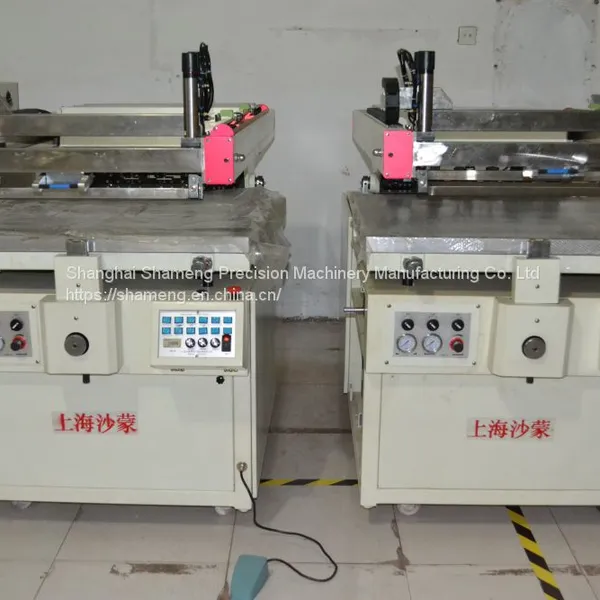

Semi Automatic Screen Printing Machine photo-2

Semi Automatic Screen Printing Machine photo-3

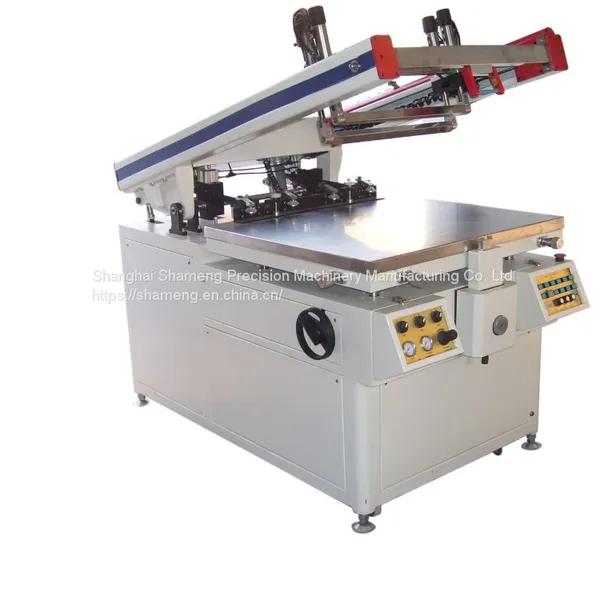

Semi Automatic Screen Printing Machine photo-4

US$ 5000 - 9800 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

China

After-sales Service Provided:

Engineers available to service machinery overseas

Condition:

New

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

45 days

Product Details
Company Profile
Contact Us

Place of Origin China

After-sales Service Provided Engineers available to service machinery overseas

Condition New

Color & Page Single Color

Specification of Equipment

	SMP-650SA	SMP-860SA	SMP-1280SA
Max. Printing Area	600×500mm	800×600mm	1,200×800mm
Printing Table Size	750×710mm	900×850mm	1,300×1,100mm
Max. Frame Size (Outer)	900×900mm	1,100×1,000mm	1,500×1,300mm
Max. Printing Speed	1,100 Sheet/h	1,000 Sheet/h	900 Sheet/h
Squeegee Speed	0 ~ 50mm
Air Consumption	18ℓ/min
Air Source	6 kg/cm²
Electric Source	380(220)V×3p×1.4KW~3.2KW
Dimension (W×D×H)	800×1,650×1,400mm	950×1,700×1,400mm	1,350×1,900×1,400mm
Weight	Approx. 520kg	Approx. 600kg	Approx. 800kg

※ Option – Swing S/Q

※ It is possible to change the specification of equipments by customer’s requirement.

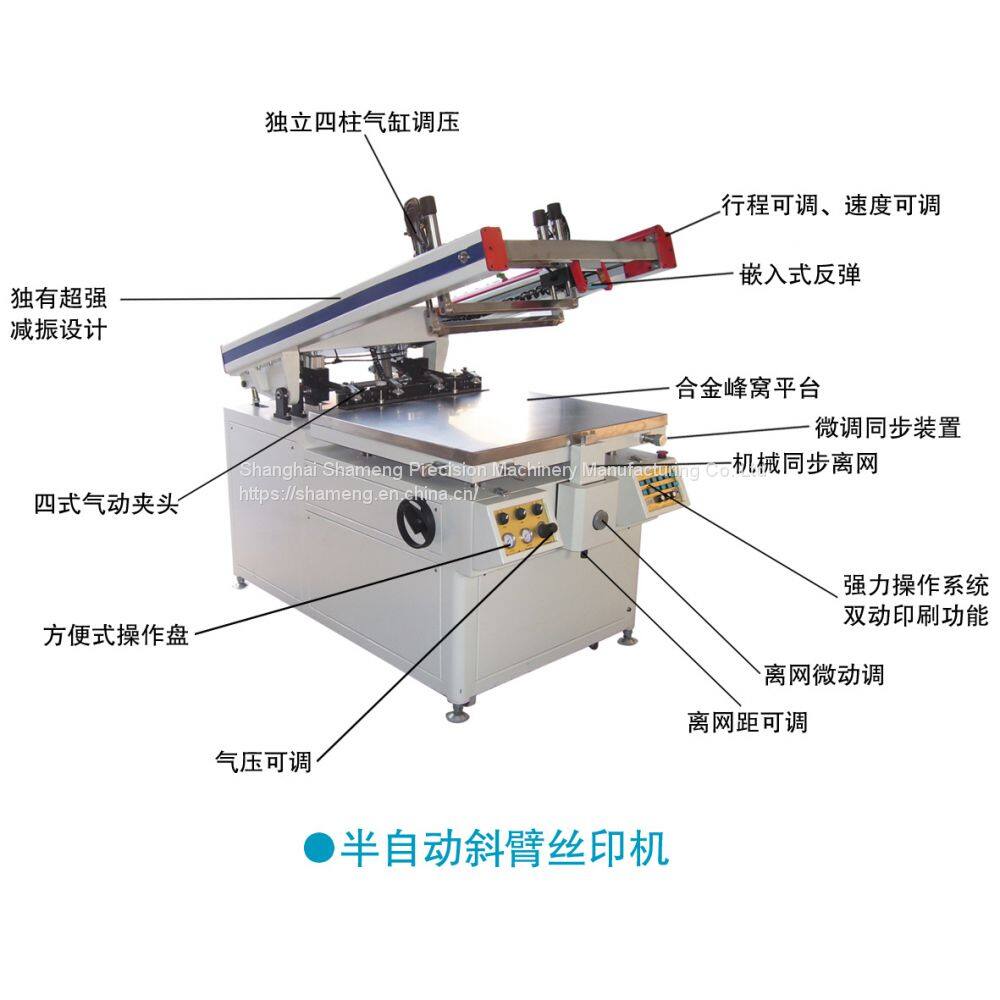

Characteristics of Equipment

ü The working table is very strength by using AL Alloy Honey Comb, it is no need to install extra lock system because of installation of handle of micro head type, and it is very simple and precise to adjust micro size.

ü Printing pressure is adjusted by press control valve of Air cylinder and the pressure is uniform.

ü Precise Motor and special rail is installed for moving of squeegee. Side Frame Up/Down is controlled by inverter, so no vibration and swing.

ü For frame clamping, the one touch type is used by pneumatic, so it is very simple to change the frame.

ü PLC program is used to work this machine and it makes easy to change to various printing method.

ü There are double safety systems for worker.

Application of equipment

Single and double PCB, FPC, Membrane S/W, Metal and paper, Glass, and Wood etc.

Product Tags: Semi Automatic Screen Printing Machine , Screen Printing Machine
