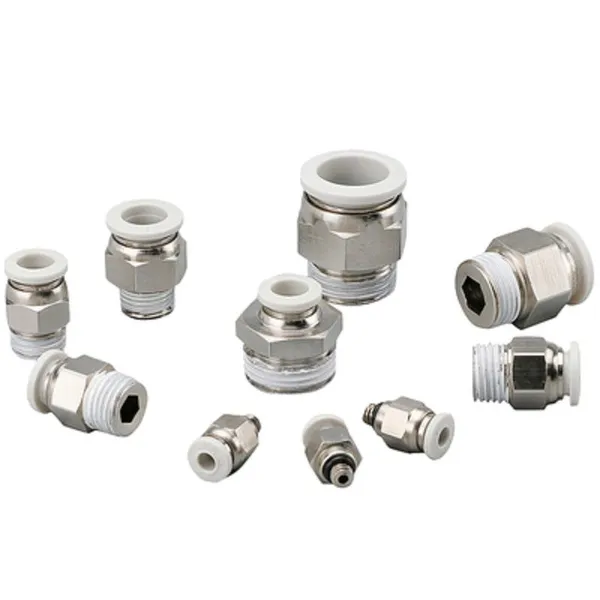

PC4/PC6/PC8/PC10/PC12/PC14/PC16 One Touch Quick Connect 1/4" brass Pneumatic fittings
Order code
Technical parameter
Model |
PC4-M5 PC4-01 PC4-02 PC4-03 |
PC6-M5 PC6-01 PC6-02 PC6-03 PC6-04
|
PC8-M5 PC8-01 PC8-02 PC8-03 PC8-04 |
PC10-01 PC10-02 PC10-03 PC10-04 |
PC12-01 PC12-02 PC12-03 PC12-04 |
PC14-02 PC14-03 PC14-04 |
PC16-02 PC16-03 PC16-04 PC16-06 |
|
Fluid |
Air |
|||||||
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||||
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||||
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||||
Temperature |
0℃~60℃ |
|||||||
Applicable tube |
PU/Nylon tube |
|||||||
Thread size |
1/8”,1/4”,3/8”,1/2” |
|||||||
Material of pneumatic fittings |
Brass |
|||||||

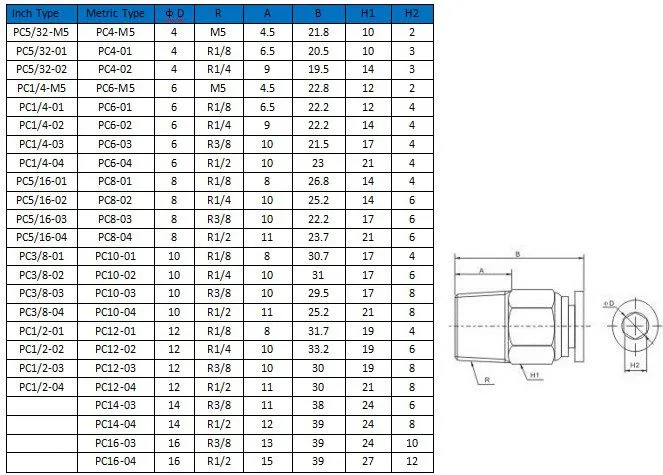

Dimension
Feature
. Nickel plated high-quality virgin Brass for maximum performance and protection
. Quick and easy installation and removal, fitting can be reused multiple times
. BSPP thread standard equipped with an O-ring
.NPT and BSPT threads are PTFE coated, no additional sealant is needed
.NBPT threads are thicker and more ridged than most of our competitors
.Hexagonal hole thru allows for easy access with a hex Allen wrench in thigh spaces
.Brass penuamtic Fittings are extensively tested under vibration for leaks at 10kg/cm2
.Specially design inner seal is capable to perform at temperature of up to 75 C
.Brass body color: silver, gold or black
.Polymer color: black or white
About us
Yister Electric Co., Ltd. specialized in manufacturing Pneumatic fittngs, Air fittings, Push in fittings, One touch tube fittings, hose fittings, One touch fittings, Quick connecting tube fittings, Compact one touch fittings, Composite Pneumatic Fittings, Pneumatic Connectors. Pneumatic push in fittings, All metal push in fittings, Nickel plated brass push in fittings, Full nickel plated brass pneumatic push-in fittings, compression fittings, Push connect air brake fittings, Rapid fittings for plastic tube, two touch fittings, Air connectors, brass fittings, Air tubing, PU tubing, Nylon tubing, Pneumatic tubing, Flow Speed Controllers and Hand Valve, Air hose, sliencer, muffler, Pneumatic accessories, Pneumatic components, Pneumatic elements
water pipe connector, air conditioning pipe connector, refrigeration pipe connector, equipment connector, wire cable joint
Packing&Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?A: Generally it is 5-10 days if the goods are in stock. or it is about 30 days if the goods are not in stock, it is according to quantity .
Q: Do you provide samples ? is it free or extra ?A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?A: 100% in advance by air. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:What is the MOQ for your products?
A: There is no special requirement for standard products.
