3 way PD series 4mm to 12mm T type Plastic 1/2 Pneumatic Push to Connect Fittings
Order code
Technical parameter
Model |
PD4-M5 PD4-01 PD4-02 PD4-03 |
PD6-M5 PD6-01 PD6-02 PD6-03 PD6-04
|
PD8-M5 PD8-01 PD8-02 PD8-03 PD8-04 |
PD10-01 PD10-02 PD10-03 PD10-04 |
PD12-01 PD12-02 PD12-03 PD12-04 |
PD14-02 PD14-03 PD14-04 |
PD16-02 PD16-03 PD16-04 PD16-06 |
|
Fluid |
Air,Water |
|||||||
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||||
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||||
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||||
Temperature |
0℃~60℃ |
|||||||
Applicable tube |
PU/Nylon tube |
|||||||
Thread size |
M5,1/8”,1/4”,3/8”,1/2” |
|||||||

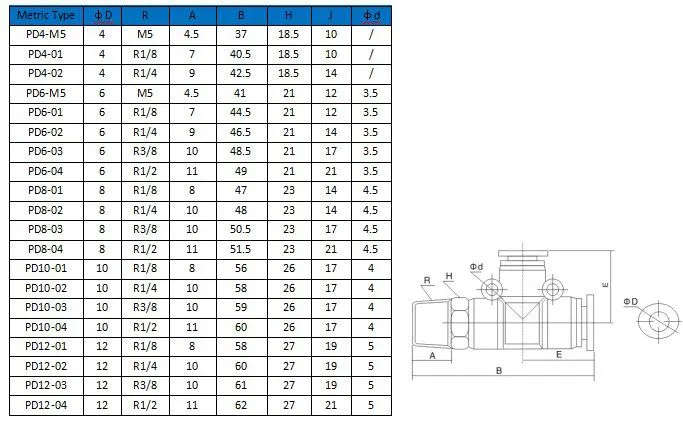

Dimension
Feature for PB4/PB6/PB8/PB10/PB12 Plastic quick connect Pneumatic air hose Pipe Fittings
3 way Male Threaded Side Tee PD Pneumatic T Fitting are ready to use, offering fast assembly with no need for tools and offers a broad range of push-in pneumatic fittings to complement our established all brass，nickel plated , Pneumatic fitting series.
Nickel plated brass components provide corrosion and contamination resistance and an extended life.
About us
Yister specialized in manufacturing Pneumatic fittngs, Air fittings, Push in fittings, One touch tube fittings, hose fittings, One touch fittings, Quick connecting tube fittings, Compact one touch fittings, Composite Pneumatic Fittings, Pneumatic Connectors. Pneumatic push in fittings, All metal push in fittings, Nickel plated brass push in fittings, Full nickel plated brass pneumatic push-in fittings, compression fittings, Push connect air brake fittings, Rapid fittings for plastic tube, two touch fittings, Air connectors, brass fittings, Air tubing, PU tubing, Nylon tubing, Pneumatic tubing, Flow Speed Controllers and Hand Valve, Air hose, sliencer, muffler, Pneumatic accessories, Pneumatic components, Pneumatic elements
water pipe connector, air conditioning pipe connector, refrigeration pipe connector, equipment connector, wire cable joint
Packing&Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-5 days if the goods are in stock. or it is about 30 days if the goods are not in stock, it is according to quantity .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance by air. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:What is the MOQ for your Pneumatic fittings?
A: There is no special requirement for standard products.
