SMC 3 way PE series Union Tee pneumatic quick connect air hose fittings
Order code
Technical parameter
Model |
PE-4 |
PE-6 |
PE-8 |
PE-10 |
PE-12 |
PE-14 |
PE-16 |
|
Fluid |
Air |
|||||||
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||||
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||||
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||||
Temperature |
0℃~60℃ |
|||||||
Applicable tube |
PU/Nylon tube |
|||||||
Tube outer size |
4mm,6mm ,8mm,10mm,12mm,14mm,16mm |
|||||||

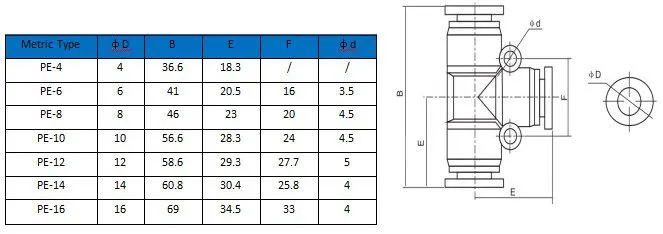

Dimension
Feature for PE series T type air quick connector Designed for Polyurethane or Nylon tubing.
. Simple installation pneumatic push in connector.
. After installation, the direction of the tube can be changed freely.
. Elliptical release ring help to connect tube easily by manual, no special tools required.
. Outside (and Inside where applicable) hexagonal wrench tightening.
