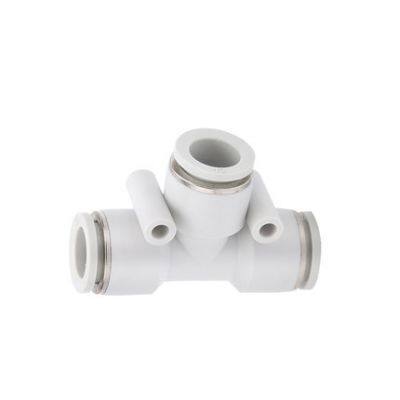

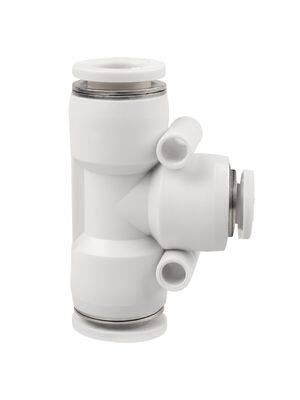

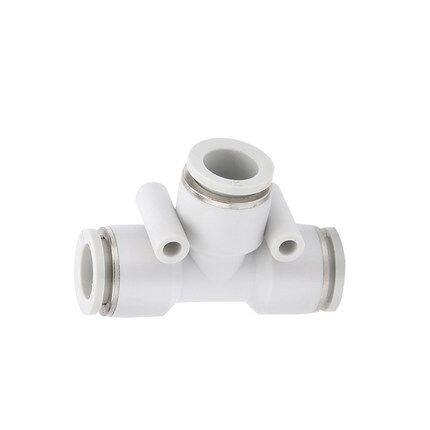

Plastic PEG series Tee Union Tube Reducer Connectors Penumatic Air Fittings
Order code
Technical parameter
Model | PEG6-4
| PEG8-4 PEG8-6 | PEG10-6 PEG10-8 | PEG12-8 PEG12-10 |
Fluid | Air | |||
Max. Pressure | 0-1.0Mpa | |||
Temperature | 0℃~60℃ | |||
Applicable tube | PU /Nylon tube | |||
Outer diameter of Tube | 4mm/6mm/8mm/10mm/12mm/14mm/16mm | |||

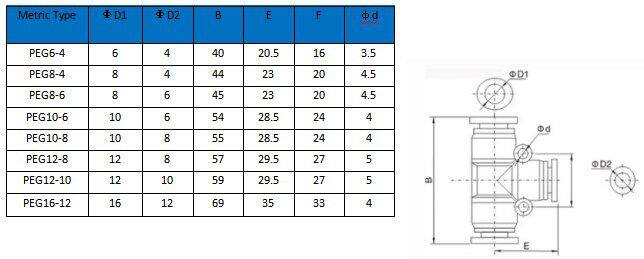

Dimension
Feature for Plastic PEG series Tee Union Tube Reducer Connectors Penumatic Air Fittings
PEG 3 way tee type changing size plastic quick connector pneumatic Push in Fittings are used in pneumatic piping. The tube fittings come in a wide variety of models to meet all your needs in pneumatic piping. Even after installation, the direction of the tube can be changed freely
About us
Yister specialized in manufacturing Pneumatic fittngs, Air fittings, Push in fittings, One touch tube fittings, hose fittings, One touch fittings, Quick connecting tube fittings, Compact one touch fittings, Composite Pneumatic Fittings, Pneumatic Connectors. Pneumatic push in fittings, All metal push in fittings, Nickel plated brass push in fittings, Full nickel plated brass pneumatic push-in fittings, compression fittings, Push connect air brake fittings, Rapid fittings for plastic tube, two touch fittings, Air connectors, brass fittings, Air tubing, PU tubing, Nylon tubing, Pneumatic tubing, Flow Speed Controllers and Hand Valve, Air hose, sliencer, muffler, Pneumatic accessories, Pneumatic components, Pneumatic elements
water pipe connector, air conditioning pipe connector, refrigeration pipe connector, equipment connector, wire cable joint
Packing&Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 1-5 days if the goods are in stock. or it is about 30 days if the goods are not in stock, it is according to quantity .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance by air. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:What is the MOQ for your Pneumatic fittings?
A: There is no special requirement for standard products.
