LSA 4mm 6mm 8mm 10mm 12mm one touch tube push in speed controller pneumatic air hose fittings
Order code
Technical parameter
Model |
LSA-4 |
LSA-6 |
LSA-8 |
LSA-10 |
LSA-12 |
LSA-14 |
LSA-16 |
|
Fluid |
Air |
|||||||
Max. Pressure |
1.32Mpa(13.5kgf/cm2) |
|||||||
Pressure range |
Normal pressure |
0~0.9Mpa(0~9.2kgf/cm2) |
||||||
Low pressure |
-99.99~0Mpa(-750~0mmHg) |
|||||||
Temperature |
0℃~60℃ |
|||||||
Applicable tube |
PU/Nylon tube |
|||||||
Tube outer size |
4mm,6mm ,8mm,10mm,12mm,14mm,16mm |
|||||||

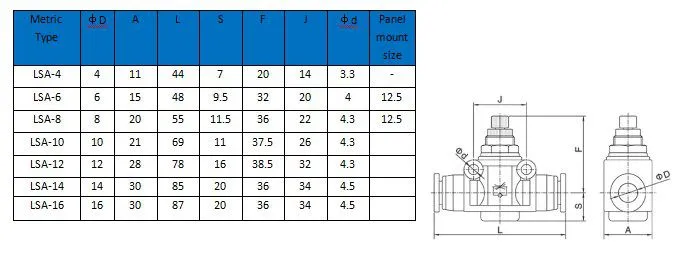

Dimension
Feature
Model:LSA series throttle control valve pneumatic fittings
Materials: pvc
Thread : BSPT,BSP,NPT,Metric ect.
Temperature range: -20°C to max. +160°C
Preparation method: CNC lathe processed
Tube size:4mm,6mm,10mm,8mm,12mm,14mm,16mm
About us
Yister specialized in manufacturing Pneumatic fittngs, Air fittings, Push in fittings, One touch tube fittings, hose fittings, One touch fittings, Quick connecting tube fittings, Compact one touch fittings, Composite Pneumatic Fittings, Pneumatic Connectors. Pneumatic push in fittings, All metal push in fittings, Nickel plated brass push in fittings, Full nickel plated brass pneumatic push-in fittings, compression fittings, Push connect air brake fittings, Rapid fittings for plastic tube, two touch fittings, Air connectors, brass fittings, Air tubing, PU tubing, Nylon tubing, Pneumatic tubing, Flow Speed Controllers and Hand Valve, Air hose, sliencer, muffler, Pneumatic accessories, Pneumatic components, Pneumatic elements
water pipe connector, air conditioning pipe connector, refrigeration pipe connector, equipment connector, wire cable joint
Packing&Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is about 30 days if the goods are not in stock, it is according to quantity .
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance by air. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
Q:What is the MOQ for your products?
A: There is no special requirement for standard products.
