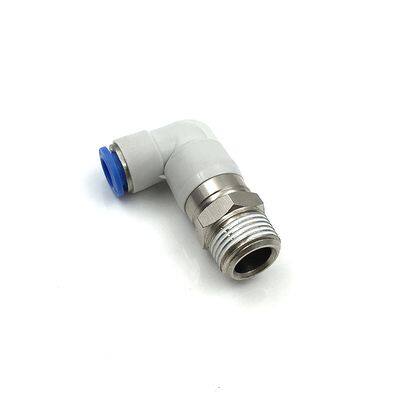

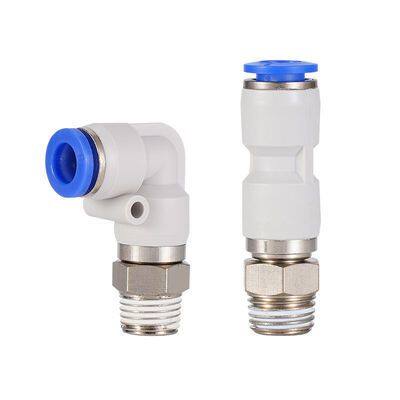

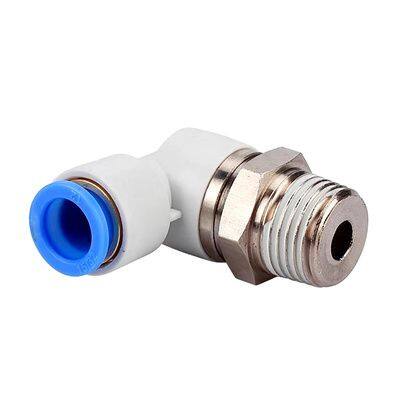

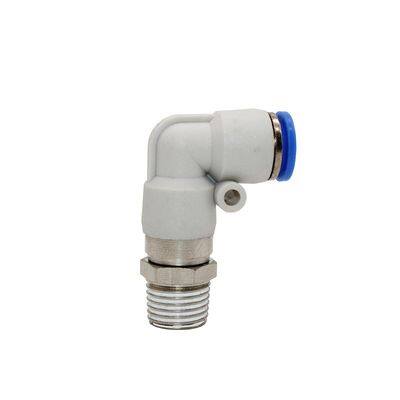

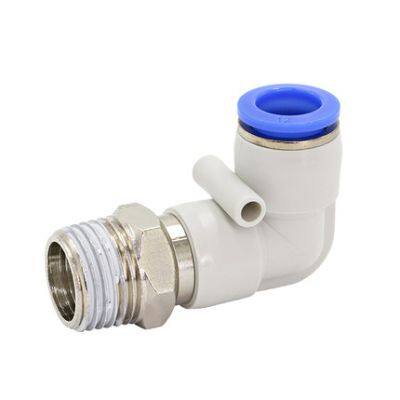

SMC standard KSL Series Pneumatic connector elbow threaded High speed Rotary one-touch Fittings

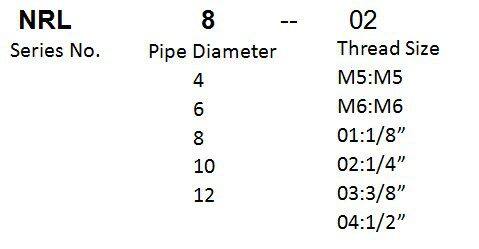

Order code
Technical parameter
Model | NRL4-M5 NRL4-M6 NRL4-01
| NRL6-M5 NRL6-M6 NRL6-01 NRL6-02
| NRL8-01 NRL8-02 NRL8-03 | NRL10-02 NRL10-03 NRL10-04 | NRL12-03 NRL12-04 | |
Fluid | Air | |||||
Max. Pressure | 1.32Mpa(13.5kgf/cm2) | |||||
Pressure range | Normal pressure | 0~0.9Mpa(0~9.2kgf/cm2) | ||||
Low pressure | -99.99~0Mpa(-750~0mmHg) | |||||
Temperature | 0℃~60℃ | |||||
Applicable tube | PU/Nylon tube | |||||
Thread size | M5,M6,1/8”,1/4”,3/8”,1/2” | |||||
Material of body | Brass | |||||

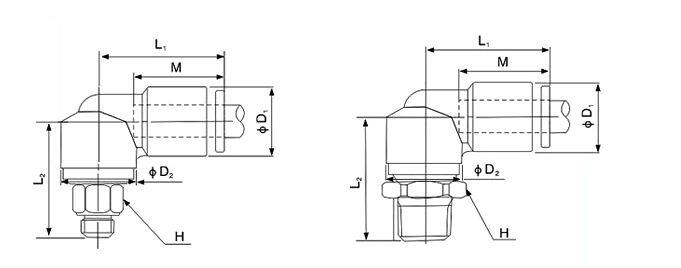

Dimension
Outer size | Metric Type | Thread | H | D1 | D2 | L1 | L2 | M |
Φ4 | NRL4-M5 (KSL04-M5) | M5*0.8 | 8 | 10.4 | 12 | 21 | 20.5 | 16 |
NRL4-M6 (KSL04-M6) | M6*1.0 | 21 | ||||||
NRL4-01 (KSL04-01S) | 1/8 | 12 | 22 | |||||
Φ6 | NRL6-M5 (KSL06-M5) | M5*0.8 | 8 | 12.8 | 14 | 23 | 21 | 17 |
NRL6-M6 (KSL06-M6) | M6*1.0 | 21.5 | ||||||
NRL6-01 (KSL06-01S) | 1/8 | 14 | 23 | |||||
NRL6-02 (KSL06-02S) | 1/4 | 26 | ||||||
Φ8 | NRL8-01 (KSL08-01S) | 1/8 | 17 | 15.2 | 17 | 26 | 26.5 | 18.5 |
NRL8-02 (KSL08-02S) | 1/4 | 29.5 | ||||||
NRL8-03 (KSL08-03S) | 3/8 | 31 | ||||||
Φ10 | NRL10-02 (KSL10-02S) | 1/4 | 22 | 15.5 | 22 | 31.5 | 34 | 21 |
NRL10-03 (KSL10-03S) | 3/8 | 35 | ||||||
NRL10-04 (KSL10-04S) | 1/2 | 38 | ||||||
Φ12 | NRL12-03 (KSL12-03S) | 3/8 | 24 | 20.9 | 24 | 34 | 36.5 | 22 |
NRL12-04 (KSL12-04S) | 1/2 | 39.5 |
Feature for SL Speed Controller Throttle Valve Pneumatic Push Connect Fittings
. Convenient one touch fittings provide instant tubing connections.
. Elliptical release ring facilitates pneumatic installations in confined spaces.
. Light manual pressure on the elliptical release ring is all that is required to instantly disconnect each tube-no
. All NPT & R(BSPT) thread are pre-coated with Teflon sealant and require no additional sealing.
